Raven SmarTrax system Supplement Installation Manual page 8

Case IH SPX 3200b SmarTrax Installation Manual
Installing the
Hydraulics
6
NOTE: Refer to schematic at the end of this section when installing hydraulic
lines.

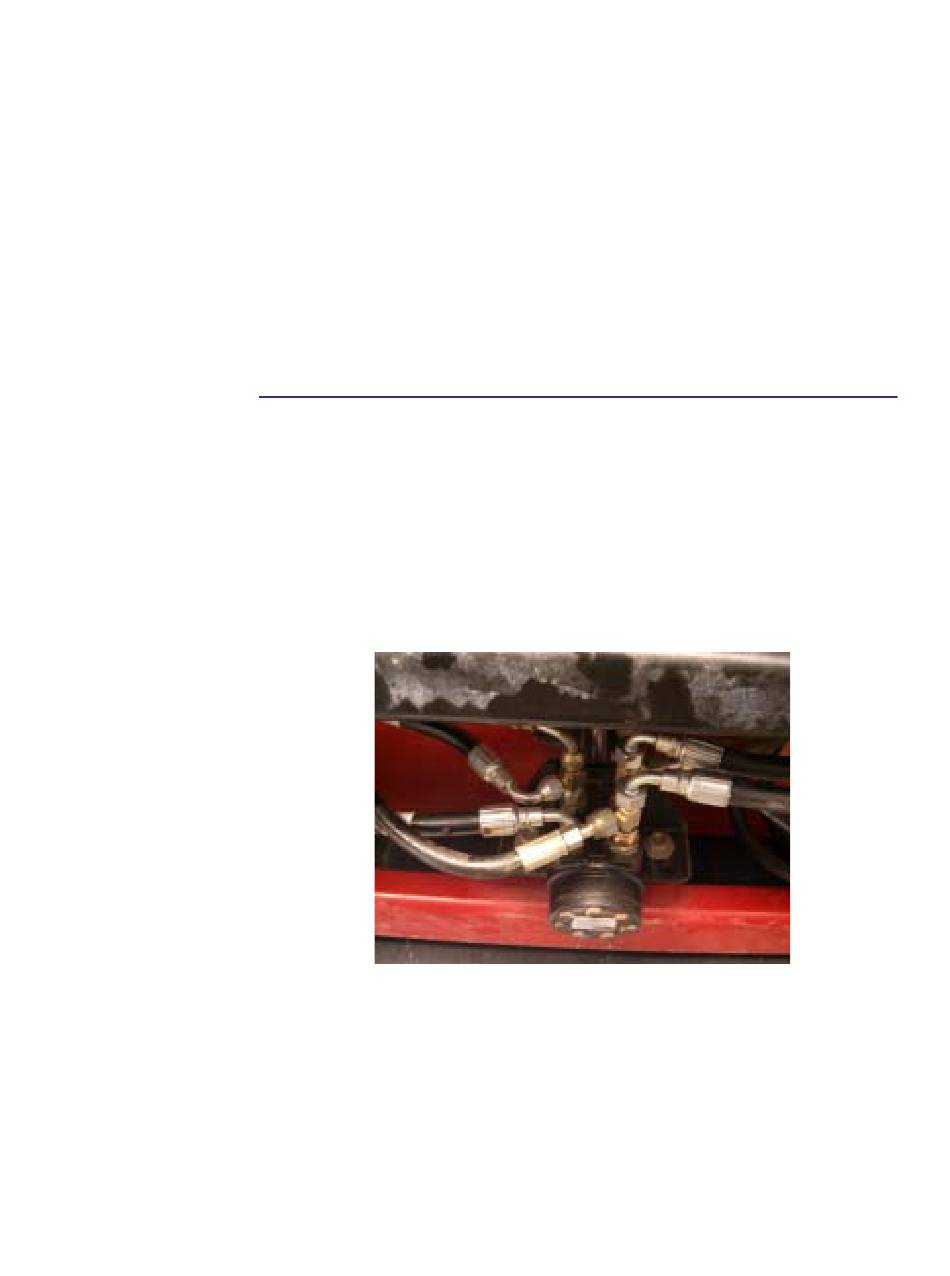

1. Locate/identify the four ports on the steering orbital: T, P, L, R.
2. Install the two -6 M/M/F flat-faced o-ring run tees onto the L and R ports
on the orbital.
3. Install the -6 M/M/F JIC run tee onto the T port on the orbital.
4. Install the -6 JIC (F) to -8 JIC (M) adaptors onto the A, B, and T ports on
the SmarTrax valve block.
