Using A C-Clamp - ETC Source Four Mini User Manual

N o t e :
Step 1: Release the retaining clip by gently
pushing it up.
Step 2: Insert the color frame.
Step 3: Lock the retaining clip by gently pushing it
down.
Additional accessories are available for the Mini that
also fit into the color frame holder including the top
hat, short top hat, half hat, short half hat, and donut.
When an accessory is used, the color frame should be installed in the rear slot of
the holder.

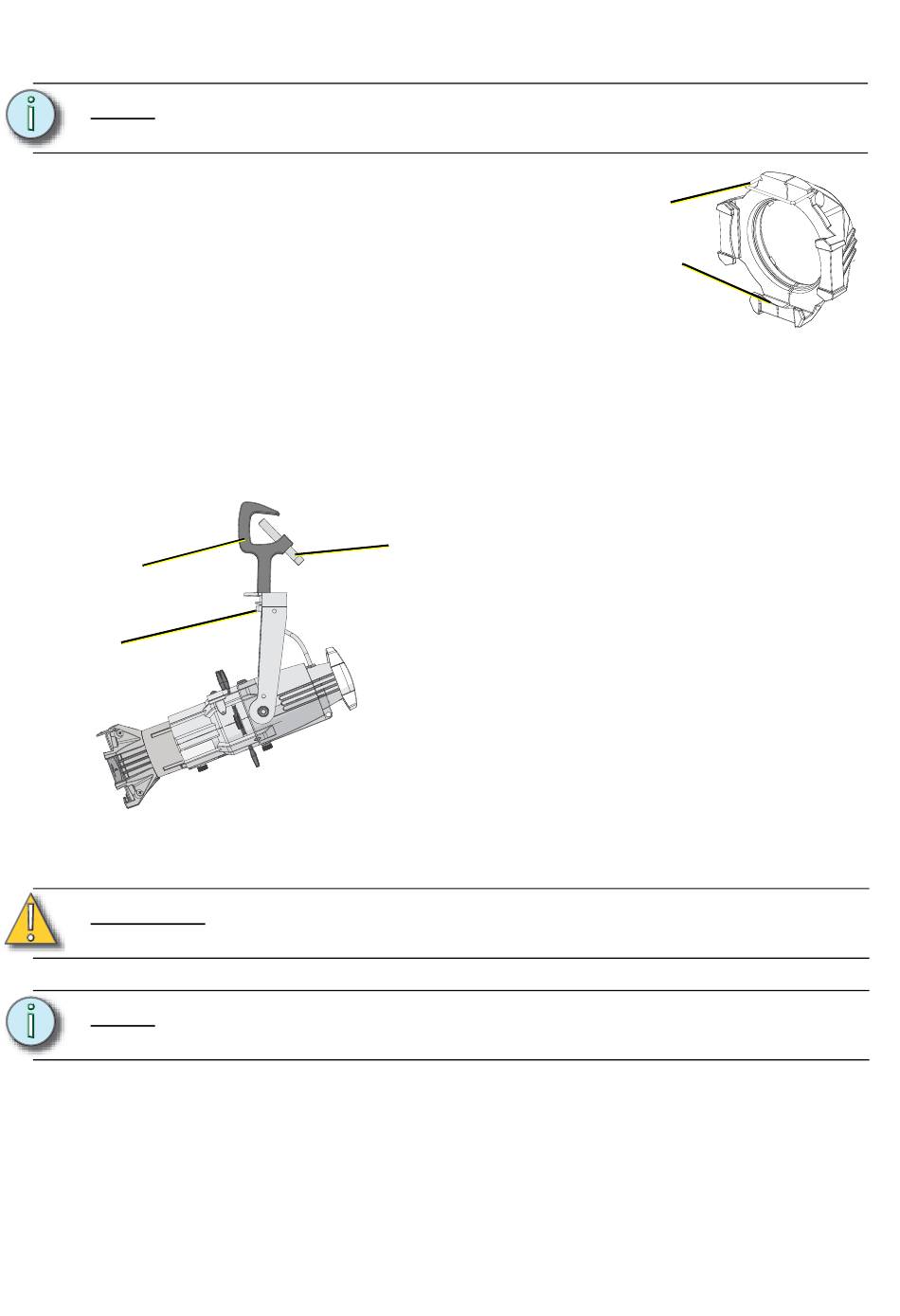

Using a C-clamp

A miniature c-clamp is available (sold separately) for use with the Source Four Mini
Low Voltage luminaire.
c-clamp
Yoke bolt
Step 3: Loosen the c-clamp yoke bolt and rotate the yoke to the desired position.
Step 4: Tighten the bolt to lock the luminaire.
C A U T I O N :
N o t e :
Always insert the color frame open side down.
Pipe bolt
The c-clamp attaches the luminaire yoke and allows
you to adjust the position of the luminaire once it is
mounted to a pipe (fits to a 3/8" to 1" pipe).
Step 1:
Step 2:
Tighten the c-clamp pipe bolt to about 18in/lbs. (Approximately finger
tight plus up to one-quarter turn.) Do not use excessive force.
The Source Four Mini yoke has a c-clamp hole with a .406" diameter.
Retaining
clip
Color
Frame
Holder
Tightly fasten the c-clamp to the yoke with
the provided yoke bolt and lock washer.
Place the c-clamp on the mounting pipe,
and then tighten the pipe bolt to secure it.
