I n s t a l l L e n s Tub e
A lens tube (sold separately) must be installed prior to use of the Source Four Mini
Low Voltage luminaire. There are four lens tube sizes available; 19°, 26°, 36°, and
50°
Step 1:
Step 2:
Step 3:
Te r m i n a t e 1 2 V W i r i n g
The Source Four Mini Low Voltage luminaire is provided with a bare end (2 wire)
power cable for termination to a standard low voltage (12 volt) system.
W A R N I N G :
To install this luminaire using a canopy mount, reference the Source Four Mini Low
Voltage Canopy Mounting Kit Installation Guide provided with the canopy mounting
kit for wire preparation and canopy installation instructions.
3

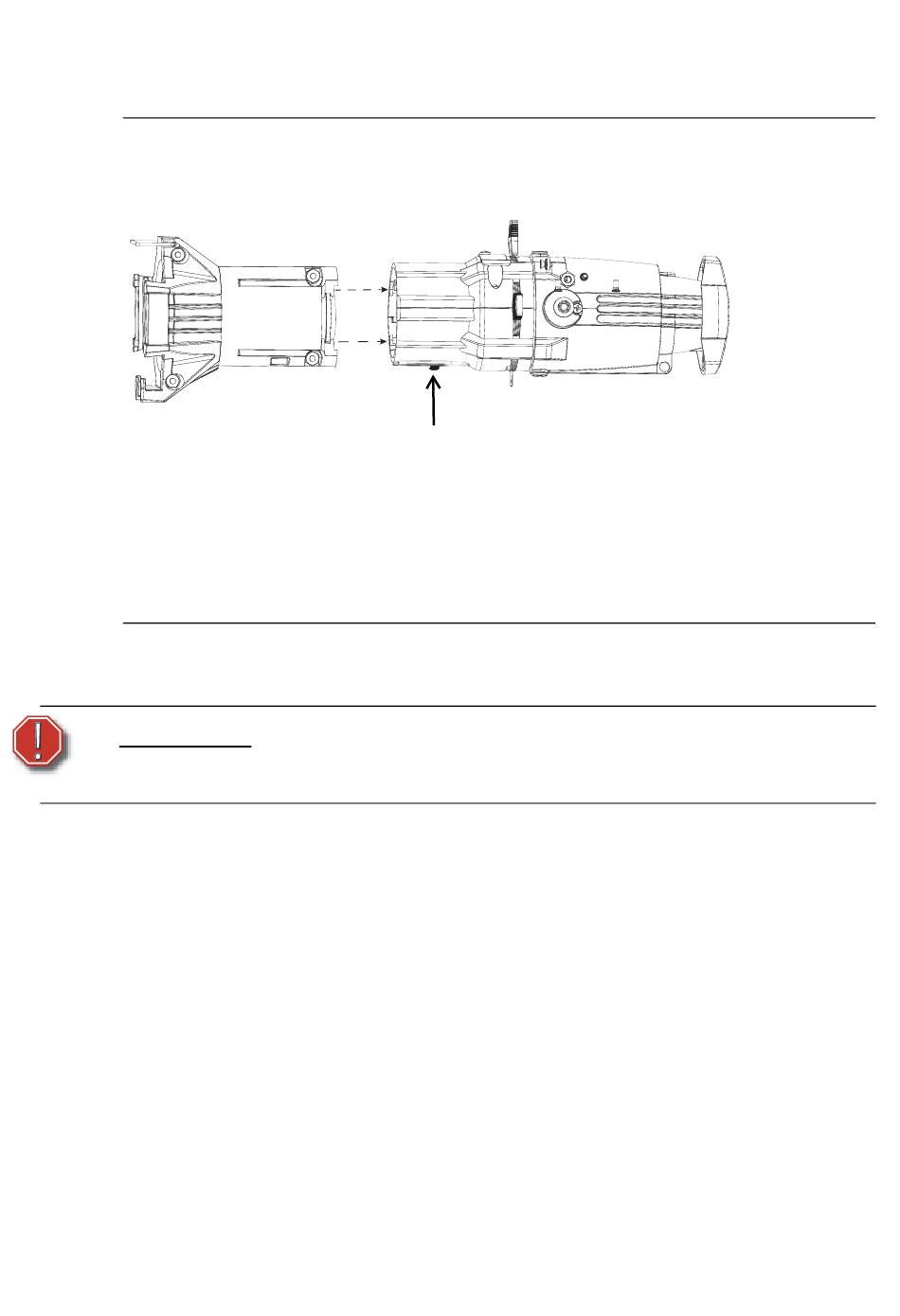

Beam focus knob
Unscrew the beam focus knob from the loose lens tube.
Slide the lens tube into the shutter barrel.
Re-install the beam focus knob.
DO NOT connect this luminaire to a line voltage system.
Mis-wiring your luminaire presents a possible risk of injury
to you and definite damage to the luminaire.
Source Four Mini Low Voltage User Manual
