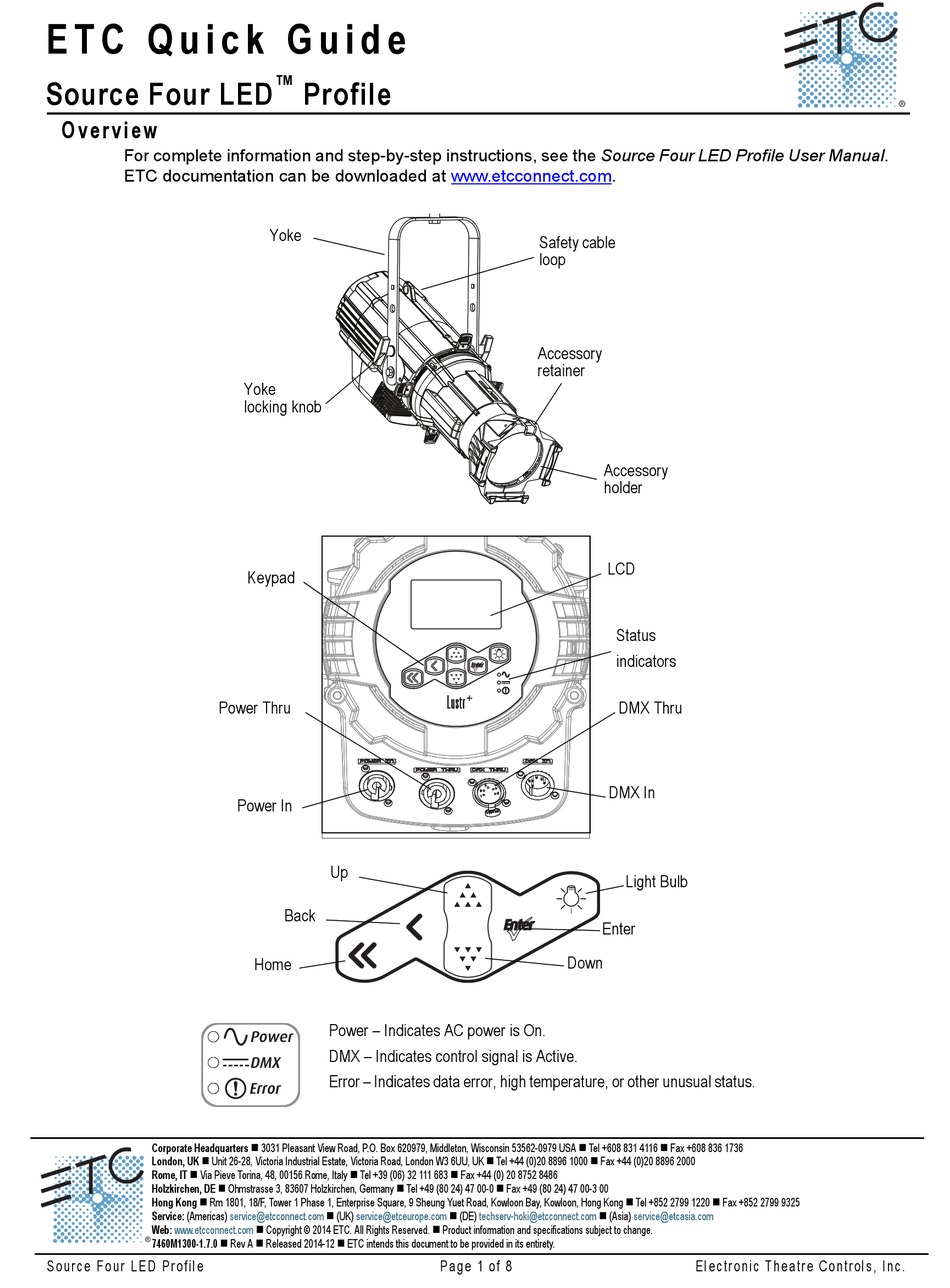

E T C Q u i c k G u i d e
Source Four LED
O v e r v i e w
For complete information and step-by-step instructions, see the Source Four LED Profile User Manual.
ETC documentation can be downloaded at www.etcconnect.com.
Power Thru
Corporate Headquarters  3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA  Tel +608 831 4116  Fax +608 836 1736
London, UK  Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK  Tel +44 (0)20 8896 1000  Fax +44 (0)20 8896 2000
Rome, IT  Via Pieve Torina, 48, 00156 Rome, Italy  Tel +39 (06) 32 111 683  Fax +44 (0) 20 8752 8486
Holzkirchen, DE  Ohmstrasse 3, 83607 Holzkirchen, Germany  Tel +49 (80 24) 47 00-0  Fax +49 (80 24) 47 00-3 00
Hong Kong  Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong  Tel +852 2799 1220  Fax +852 2799 9325
Service: (Americas)
Web:
www.etcconnect.com
7460M1300-1.7.0  Rev A  Released 2014-12  ETC intends this document to be provided in its entirety.
Sou rc e Fo ur LED Pr o fi le
™
Profile
Yoke
Yoke
locking knob
Keypad
Power In
Up
Back
Home
Power – Indicates AC power is On.
DMX – Indicates control signal is Active.
Error – Indicates data error, high temperature, or other unusual status.
service@etcconnect.com
 (UK)
service@etceurope.com
 Copyright © 2014 ETC. All Rights Reserved.  Product information and specifications subject to change.
Safety cable
loop
Accessory
retainer
Accessory
holder
LCD
Status
indicators
DMX Thru
DMX In
Enter
Down
 (DE)
techserv-hoki@etcconnect.com
 (Asia)
Pag e 1 of 8
