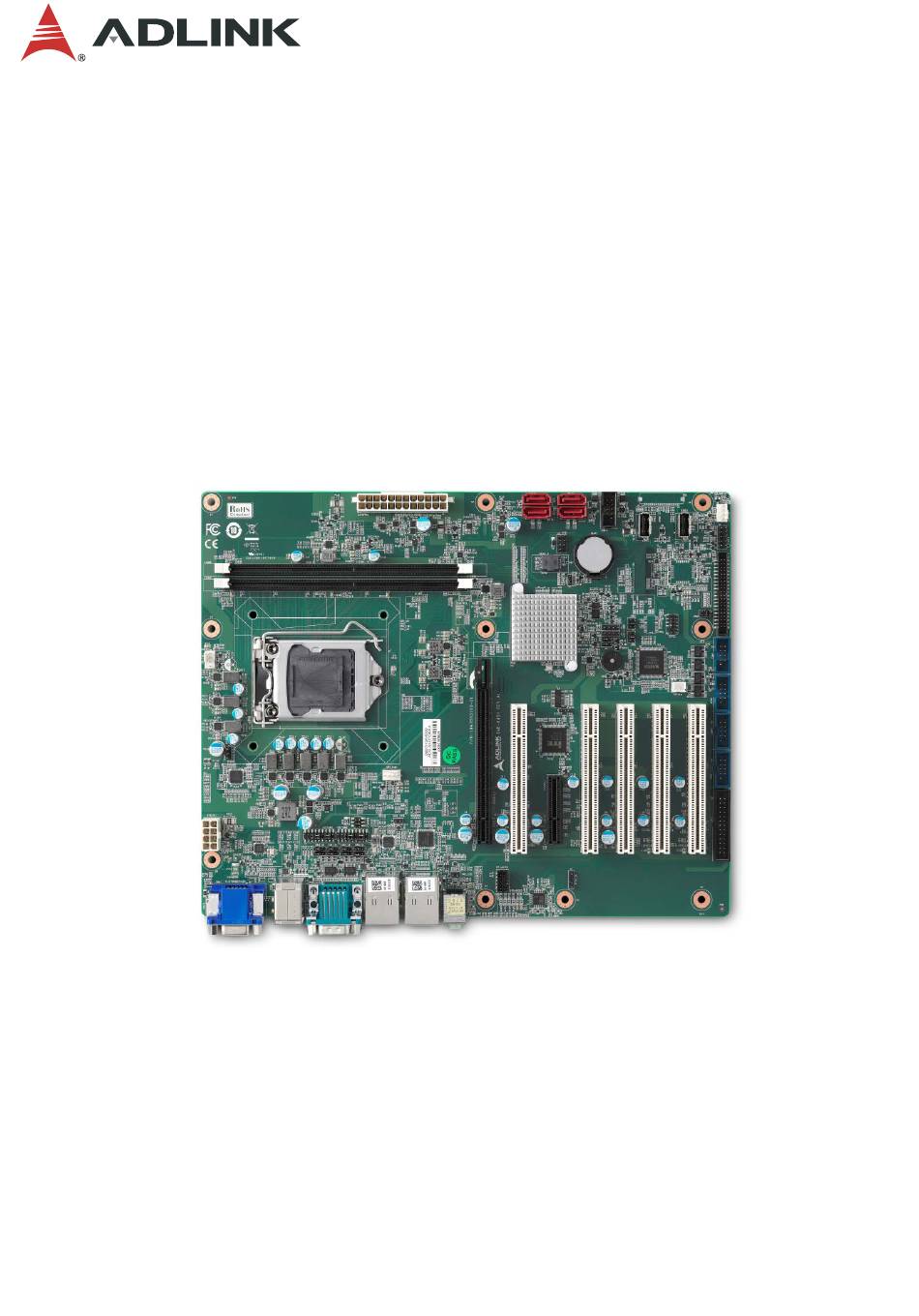

ATX Motherboard with 8th/9th Gen Intel
Leading EDGE COMPUTING
IMB-M45H
User's Manual
®
and Intel
H310 Chipset
Manual Rev.:
1.0
Revision Date:
January 24, 2021
Part Number:
50-1Z353-1000
®
Core™ i7/i5/i3 Processors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMB-M45H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADLINK Technology IMB-M45H

  • Page 1 IMB-M45H User’s Manual ® ATX Motherboard with 8th/9th Gen Intel Core™ i7/i5/i3 Processors ® and Intel H310 Chipset Manual Rev.: Revision Date: January 24, 2021 Part Number: 50-1Z353-1000 Leading EDGE COMPUTING...
  • Page 2 Preface Copyright Copyright © 2021 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 3 IMB-M45H Revision History Revision Description Date Initial release 2021-01-24 Preface...
  • Page 4: Table Of Contents

    Table of Contents Preface ..........................ii List of Figures ........................vi List of Tables........................vii Introduction........................1 Packing List ........................1 Optional Accessories ....................1 Specifications ......................3 Core System .......................3 I/O Interface ........................3 Video........................... 3 Audio........................... 4 Temperatures ......................4 Humidity........................4 Certificate (EMC) ......................4 Form Factor ........................4 Operating Systems .....................4 2.10 Functional Block Diagram...................5...
  • Page 5: Preface

    IMB-M45H BIOS Setup.......................33 Menu Structure ......................33 Main Menu ........................34 Advanced Menu......................35 Chipset Menu......................43 Security Menu......................48 Boot Menu ........................49 Save & Exit Menu .....................50 Safety Instructions......................51 Getting Service.........................52 Preface...
  • Page 6: List Of Figures

    List of Figures Figure 1: Functional Block Diagram ......................5 Figure 2: IO Panel Connector Locations ....................7 Figure 3: Onboard Connector Locations ....................8 Figure 4: Mechanical Dimensions ......................10 Figure 5: Mechanical Dimensions - IO Panel ..................10 Preface...
  • Page 7 IMB-M45H List of Tables Table 1: IO Panel Connector Definitions ....................7 Table 2: Onboard Connector Definitions ....................8 Table 3: Jumper and Switch Definitions ....................20 Table 4: System Memory Map ......................27 Table 5: IO Map............................. 27 Table 6: IRQ Lines PIC Mode........................ 29 Table 7 IRQ Lines APIC Mode ......................
  • Page 8 This page intentionally left blank. viii Preface...
  • Page 9: Introduction

    PCIe 3.0/2.0, USB 3.0, and SATA 6 Gb/s, dual-channel DDR4 memory up to 64 GB in two DIMM slots for industrial automation applications, the IMB-M45H offers a significant competitive advantage for embedded computing applications. The rugged I/O design enhances system flexibility with robust device compatibility, durable connectivity, and extreme environment readiness.
  • Page 10 This page intentionally left blank. Introduction...
  • Page 11: Specifications

    IMB-M45H Specifications Core System CPU: 8th/9th Generation Intel® Core™ i7/i5/i3 Desktop Processor, LGA1151 socket • Intel® Core™ i7-8700, 3.2GHz, 12M Cache, 65W TDP, LGA1151, DDR4 2666MHz support, (6C/12T) • Intel® Core™ i7-8700T, 2.4GHz 12M Cache, 35W TDP, LGA1151, DDR4 2666MHz support, (6C/12T) •...
  • Page 12: Audio

    Audio Audio Codec: Realtek® ALC892-CG or ALC888S Interfaces: 1x Mic-in and 1x Line-out connector (rear) Temperatures Operating Temperature: 0°C to 60°C Storage Temperature: -40°C to 85°C Humidity 60°C at 95% RH, non-condensing Certificate (EMC) CE/FCC Class B Form Factor ATX: 305 mm x 244 mm (W x L) Operating Systems Microsoft®...
  • Page 13: Functional Block Diagram

    IMB-M45H 2.10 Functional Block Diagram PCIe Gen3 x16 HDMI Dual Channel 8th/9th Gen DDR4- 2400/2666 Intel® Core™ PTN3355BS Line out/in, Mic in RJ-45 ALC892-CG/ I219LM ALC888S RJ-45 PCI 3~5 PCIe x1 PCIe x1 I211AT IT8892E SATA Gen3 x4 PCI 1~2...
  • Page 14 This page intentionally left blank. Specifications...
  • Page 15: Mechanical Layout

    IMB-M45H Mechanical Layout Connector Locations Figure 2: IO Panel Connector Locations Table 1: IO Panel Connector Definitions IO Panel Connectors Item Description VGA Port HDMI Port KB/MS Port Two USB2.0 ports COM1 RS-232/422/485, RI pin with Power Jumper Select COM2 RS-232/422/485 LAN1 2x USB3.1 Gen1 ports...
  • Page 16: Figure 3: Onboard Connector Locations

    Figure 3: Onboard Connector Locations Table 2: Onboard Connector Definitions Onboard Connectors Item Description Remarks ATX POWER 8PIN ATX12V1 CPU_FAN CPU_FAN1 ATX POWER 24PIN EATXPWR1 SATA1 SATA1 SATA2 SATA2 SATA3 SATA3 SATA4 SATA4 USB 56 USB 56 USB9 USB9 USB10 USB10 SYS_FAN1 SYS_FAN1...
  • Page 17 IMB-M45H Onboard Connectors GPIO JDIO1 COM6 COM6 COM5 COM5 COM4 COM4 COM3 COM3 PRINT PORT LPT1 PCI1 PCI1 PCI2 PCI2 PCI3 PCI3 PCI4 PCI4 PCI5 PCI5 FRONT AUDIO FP_AUDIO1 DIMMA1 DIMMA1 DIMMB1 DIMMB1 SYS_FAN2 SYS_FAN2 COM1 RS232/422/485 select JSETCOM1 COM2 RS232/422/485 select...
  • Page 18: Mechanical Dimensions

    Mechanical Dimensions Top View Dimensions: mm Figure 4: Mechanical Dimensions Side View Dimensions: mm Figure 5: Mechanical Dimensions - IO Panel Mechanical Layout...
  • Page 19: Connector Pinouts

    IMB-M45H Connector Pinouts See 3.1 Connector Locations on page 7 for connector locations. Rear IO Connectors 4.1.1 HDMI Connector Signal Signal HDMI1_CON_DP2 HDMI1_CON_DN2 HDMI1_CON_DP1 HDMI1_CON_DN1 HDMI1_CON_DP0 HDMI1_CON_DN0 HDMI1_CON_CKP HDMI1_CON_CKN HDMI1_DDC_CLK HDMI1_DDC_DATA +5V_HDMI HDMI1_CON_HPD 4.1.2 VGA Connector Signal Signal VGA_CON_RED VGA_CON_GREEN...
  • Page 20 4.1.3 USB Connectors USB 3.0, USB 2.0 Signal +5 VDC USB D- USB2.0 USB D+ Signal +5V_USB12 USB_CM_N1 9 8 7 6 5 USB_CM_P1 1 2 3 4 USB3_RX_CM_N1 USB3.0 USB3_RX_CM_P1 USB3_TX_CM_N1 USB3_TX_CM_P1 4.1.4 PS/2 Combo Connector Signal KB_DAT MS_DAT +5V_DUAL KB_CLK MS_CLK...
  • Page 21 IMB-M45H 4.1.5 COM 1-2 Stacked Connector Top connector COM1, bottom connector COM2 Signal RS-232 RS-422 RS-485 DCD# Tx/Rx- Tx/Rx+ N /A DTR# N /A N /A N /A DSR# N /A N /A RTS# N /A N /A CTS# N /A...
  • Page 22: Internal Connectors

    Internal Connectors 4.2.1 USB 5-6 Signal Signal D5 - D6 - D5 + D6 + Ground Ground KEY (no pin) No Connect/ OC 4.2.2 SATA1, SATA2, SATA3, SATA4 Signal Description Ground Transmit diff data – positive Transmit diff data – negative Ground Receive diff data –...
  • Page 23 IMB-M45H 4.2.4 LPT1 Signal Signal STB# AFD# DATA0 ERR# DATA1 INIT# DATA2 SLIN# DATA3 DATA4 DATA5 DATA6 DATA7 ACK# BUSY SLCT 4.2.5 FP_AUDIO1 Signal Signal [Port 2] SENSE_RETURN_B Line-In Port2 Left Line-In Port2 Right GND_A MIC-In Port2 Left SIDE OUT Right...
  • Page 24 4.2.8 F_PANEL1 Signal In/ Out Description Signal In/ Out Description HDD Activity LED Power LED HDD_LED+ Hard disk LED PLED_PWR Power LED pull-up to +3.3 V pull-up to +3.3_DUAL HDD_LED# Hard disk active SUPLED Front panel active LED Ground Ground PANSWIN# Power switch FP_RESET#...
  • Page 25 IMB-M45H JLPC1 4.2.11 Signal Signal VCC3 LPC_AD3 PLTRST LPC_AD1 LPC_AD2 LPC_FRAME# LPC_AD0 CLK33M SPI1 4.2.12 Signal Signal VCC3 SPI_CS# SPI_CLK SPI_MISO SPI_MOSI HOLD# 4.2.13 JPSON1 (Default 2-3) Signal Description PANSWIN# Power switch signal PSON_AT AT mode signal Connector Pinouts...
  • Page 26 4.2.14 JDIO1 (TTL High:3.3V / TTL Low:0V) Signal Signal DIO1 DIO17 DIO2 DIO18 DIO3 DIO19 DIO4 DIO20 DIO5 DIO21 DIO6 DIO22 DIO7 DIO23 DIO8 DIO24 DIO9 DIO25 DIO10 DIO26 DIO11 DIO27 DIO12 DIO28 DIO13 DIO29 DIO14 DIO30 DIO15 DIO31 DIO16 DIO32 POWER 4.2.15...
  • Page 27 IMB-M45H 4.2.16 JCMOS1 (Default 1-2) Signal Description RTCRST# Reset CMOS 4.2.17 JPW4 (Default: 3-4) Signal Signal JDIO1. Pin40 JDIO1. Pin40 +12V JDIO1. Pin40 4.2.18 JPW1 (Default: 3-4) Signal Signal JI2C1 Pin1 JI2C1 Pin1 +3.3V JI2C1 Pin1 4.2.19 JPW2 (Default: 3-4)
  • Page 28: Jumper And Switch Settings

    4.2.21 JI2C1 Signal Description NC/+3.3V/+5V select I2C_DATA I2C data I2C_CLK I2C clock Ground Jumper and Switch Settings Table 3: Jumper and Switch Definitions Jumper Block Item Description Remarks JCMOS1 One 1x3 2.54mm pin header Normal (Default) 1-2 (default) = Normal, 2-3 = Clear CMOS Clear CMOS JPSON1 One 1x3 2.54mm pin header...
  • Page 29 IMB-M45H Jumper Block COM1_S1~S4 master/slave and terminal selection COM2_S1~S4 master/slave and terminal selection Connector Pinouts...
  • Page 30 Jumper Block JPW4 One 2x3 2.0mm pin header NC (Default) NC (default)/+5V/+12V +12V JPW1 One 2X3 2.0mm pin header NC (Default) NC (default)/+5V/+3.3V +3.3V Connector Pinouts...
  • Page 31 IMB-M45H Jumper Block JPW2 One 2x3 2.0mm pin header NC (Default) NC (default)/+5V/+3.3V +3.3V Connector Pinouts...
  • Page 32 This page intentionally left blank. Connector Pinouts...
  • Page 33: Driver Installation

    IMB-M45H Driver Installation Download the requisite drivers for your system from the IMB-M45H product page at: https://www.adlinktech.com/Products/Industrial_Motherboards_SBCs/ATXMotherboards/IMB-M45H Driver Installation...
  • Page 34 This page intentionally left blank. Driver Installation...
  • Page 35: System Resources

    IMB-M45H System Resources System Memory Map Table 4: System Memory Map Address Range Address Range Size Description (4GB-2MB) FFE00000 – FFFFFFFF 2 MB High BIOS Area (4GB-18MB) – (4GB-17MB-1) FEE00000 – FEEFFFFF 1 MB MSI Interrupts (4GB-20MB) – (4GB-19MB-1) FEC00000 – FECFFFFF...
  • Page 36 Hex Range Device 0063-0063 Motherboard resources 0065-0065 Motherboard resources 0067-0067 Motherboard resources 0070-0070 Motherboard resources 0080-0080 Motherboard resources 0092-0092 Motherboard resources 00B2-00B3 Motherboard resources 0680-069F Motherboard resources FFFF-FFFF Motherboard resources 1800-18FE Motherboard resources 164E-164F Motherboard resources 0040-0043 System timer 0050-0053 System timer 0070-0077 System CMOS/real time clock...
  • Page 37: Interrupt Request (Irq) Lines

    IMB-M45H Interrupt Request (IRQ) Lines 6.3.1 IRQ Lines PIC Mode Table 6: IRQ Lines PIC Mode IRQ# Device System timer COM2 COM1 COM3, COM4 System CMOS/real time clock COM5, COM6 Numeric data processor Intel Serial IO GPIO Host Controller Intel Chipset Smbus HD Audio Controller Note: These IRQs can be used for PCI devices when onboard device is disabled.
  • Page 38: Pci Features

    PCI Features 6.4.1 PCI Configuration Space Map Table 8 PCI Configuration Space Map Device Function Routing Description Number Number Number Intel Host Bridge Internal Intel VGA Controller Internal Intel USB 3.0 XHCI Internal Intel Data acquisition/signal process Internal Intel Communication device Internal Intel AHCI 1.0 controller Internal...
  • Page 39: Smbus Slave Addresses

    IMB-M45H 6.4.2 PCI Interrupt Routing Map Table 9 PCI Interrupt Routing Map LpcBridge High SMBus PCIE Root PCIE Root PCIE Root Line Definition Port #9 Port #5 Port #12 Audio (LAN1) (PCIE x4) (ITE8892) Int0 INTA:16 INTA:16 INTA:16 INTA:16 INTA:16...
  • Page 40 This page intentionally left blank. System Resources...
  • Page 41: Bios Setup

    IMB-M45H BIOS Setup Menu Structure This section presents the primary menus of the BIOS Setup Utility. Use the following table as a quick reference for the contents of the BIOS Setup Utility. The subsections describe the submenus and options for each menu item.
  • Page 42: 7.2 Main Menu

    Feature Options Description BIOS Vendor American Megatrends Core Version x.xx Compliancy UEFI x.x; PI x.x Project Version IMB-M45H x.xx.xx Build Date and Time mm/dd/yyyy hh:mm:ss Access Level Administrator Memory Information Total Memory xxxx MB Memory Frequency xxxx MHz Power Type...
  • Page 43: Advanced Menu

    IMB-M45H Advanced Menu This menu contains the settings for most of the user interfaces in the system. 7.3.1 Advanced > CPU Configuration Feature Options Description Type Info Only CPU type Info Only CPU ID Speed Info Only CPU Speed (xxxx MHz)
  • Page 44 Feature Options Description Package C state limit Maximum Package C State Limit Setting. Auto CPU Default CPU Default: Leaves to Factory default value. Auto: Initializes to deepest available Package C State Limit. C0/C1 7.3.2 Advanced > PCH-FW Configuration Feature Options Description ME Firmware Version Info Only...
  • Page 45 IMB-M45H 7.3.4 Advanced > NCT6106D SuperIO Configuration Feature Options Description Serial Port 1 Configuration► Submenu Sets Parameters of Serial Port 1 (COMA) Serial Port 2 Configuration► Submenu Sets Parameters of Serial Port 2 (COMB) Serial Port 3 Configuration► Submenu Sets Parameters of Serial Port 3 (COMC) Serial Port 4 Configuration►...
  • Page 46 7.3.7 Advanced > NCT6106D SuperIO Configuration > Serial Port 3 Configuration Feature Options Description Serial Port Disabled Enables or Disables Serial Port (COM) Enabled Device Settings IO=3E8h Serial Port device settings IRQ=5 Change Settings Selects optimal settings for Super IO Device Auto 7.3.8 Advanced >...
  • Page 47 IMB-M45H 7.3.11 Advanced > NCT6106D SuperIO Configuration > Parallel Port Configuration Parallel Port Options Note Parallel Port Disabled Enables or Disables Parallel Port (LPT/LPTE) Enabled Device Settings Info Only Serial Port device settings Change Settings Selects optimal settings for Super IO Device...
  • Page 48 7.3.14 Advanced > Smart Fan > Smart Fan Mode Configuration – Manual Mode Feature Options Description SYS Smart Fan1 Mode SYS Smart Fan1 Mode Manual Mode Thermal Cruise Mode SYS expect PWM Output/DC Voltage System FAN1 expect PWM Output/DC Voltage CPU Smart Fan Mode CPU Smart Fan Mode Manual Mode...
  • Page 49 IMB-M45H 7.3.18 Advanced > Serial Port Console Redirection > Console Redirection Settings Feature Options Description Terminal Type VY100 Type Select VT100+ VT-UTF8 ANSI Bits per second 9600 Select serial port transmission speed. 19200 38400 57600 115200 Data Bits Data Bits...
  • Page 50 7.3.20 Advanced > Network Stack Configuration Feature Options Note Network Stack Enables or Disables UEFI Network Stack. Disabled Enabled 7.3.21 Advanced > CSM Configuration Feature Options Description CSM Support Disabled Enables or Disables CSM Support Enabled CSM16 Module Version Option ROM execution Network Do not launch Controls the execution of UEFI and Legacy PXE OpROM.
  • Page 51: Chipset Menu

    IMB-M45H Chipset Menu This menu contains settings for other user interfaces in the system. 7.4.1 Chipset > System Agent (SA) Configuration Feature Options Description SA PCIe Code Version Info Only VT-d Capability Info Only Memory Configuration► Submenu Memory Configuration Parameters Graphics Configuration►...
  • Page 52 7.4.3 Chipset > System Agent (SA) Configuration > Graphics Configuration Feature Options Description Selects which of IGFX/PEG/PCIE Graphics device should be Primary Display Auto Primary Display IGFX PCIE Internal Graphics Keeps IGFX enabled based on the setup options. Auto Disable Enable PSMI Support Disable...
  • Page 53 IMB-M45H 7.4.5 Chipset > PCH-IO Configuration Feature Options Description PCI Express Configuration► Submenu PCI Express Configuration settings SATA And RST Configuration► Submenu SATA Device Options Setting USB Configuration► Submenu USB Configuration settings HD Audio Configuration► Submenu HD Audio Subsystem Configuration Settings Serial IO Configuration►...
  • Page 54 7.4.7 Chipset > PCH-IO Configuration > PCI Express Configuration > PCI Express Root Port 5 Feature Options Description PCI Express Root Port 5 Disabled Controls the PCI Express Root Port. Enabled ASPM 5 Auto Sets the ASPM Level: Force L0s – Force all link to L0s State L0sL1 AUTO –...
  • Page 55 IMB-M45H 7.4.9 Chipset > PCH-IO Configuration > USB Configuration Feature Options Description Options to disable Compliance Mode. Default is XHCI Disable Compliance Mode Disabled FALSE to not disable Compliance Mode. Set TRUE Enabled to disable Compliance Mode. USB12 Standby Power Support...
  • Page 56: Security Menu

    Security Menu Feature Options Description Administrator Password Enter password Sets Administrator Password User Password Enter password Sets User Password BIOS Setup...
  • Page 57: Boot Menu

    IMB-M45H Boot Menu Feature Options Description Boot Configuration Info Only Setup Prompt Timeout 1 (seconds) Number of seconds to wait for setup activation key. 65535(0xFFFF) means infinite waiting. Bootup NumLock State Select the keyboard NumLock state. Quiet Boot Disabled Enables or Disables Quiet Boot option...
  • Page 58: Save & Exit Menu

    Save & Exit Menu Save & Exit Options Note Save Changes and Exit Exits system setup after saving the changes. Discard Changes and Exit Exits system setup without saving any changes. Save Changes and Reset Resets the system after saving the changes. Default Options Restore Defaults Restores or Loads Default values for all Setup options.
  • Page 59: Safety Instructions

    IMB-M45H Safety Instructions Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. • Please read these safety instructions carefully. • Please keep this User‘s Manual for later reference.
  • Page 60: Getting Service

    5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
