Installation
Operating Guide | VLT® Compressor Drive CDS 803
3.2.6 Control Terminals
3.2.6.1 Accessing the Control Terminals
Procedure
1. To activate the snap, place a screwdriver behind the terminal cover.

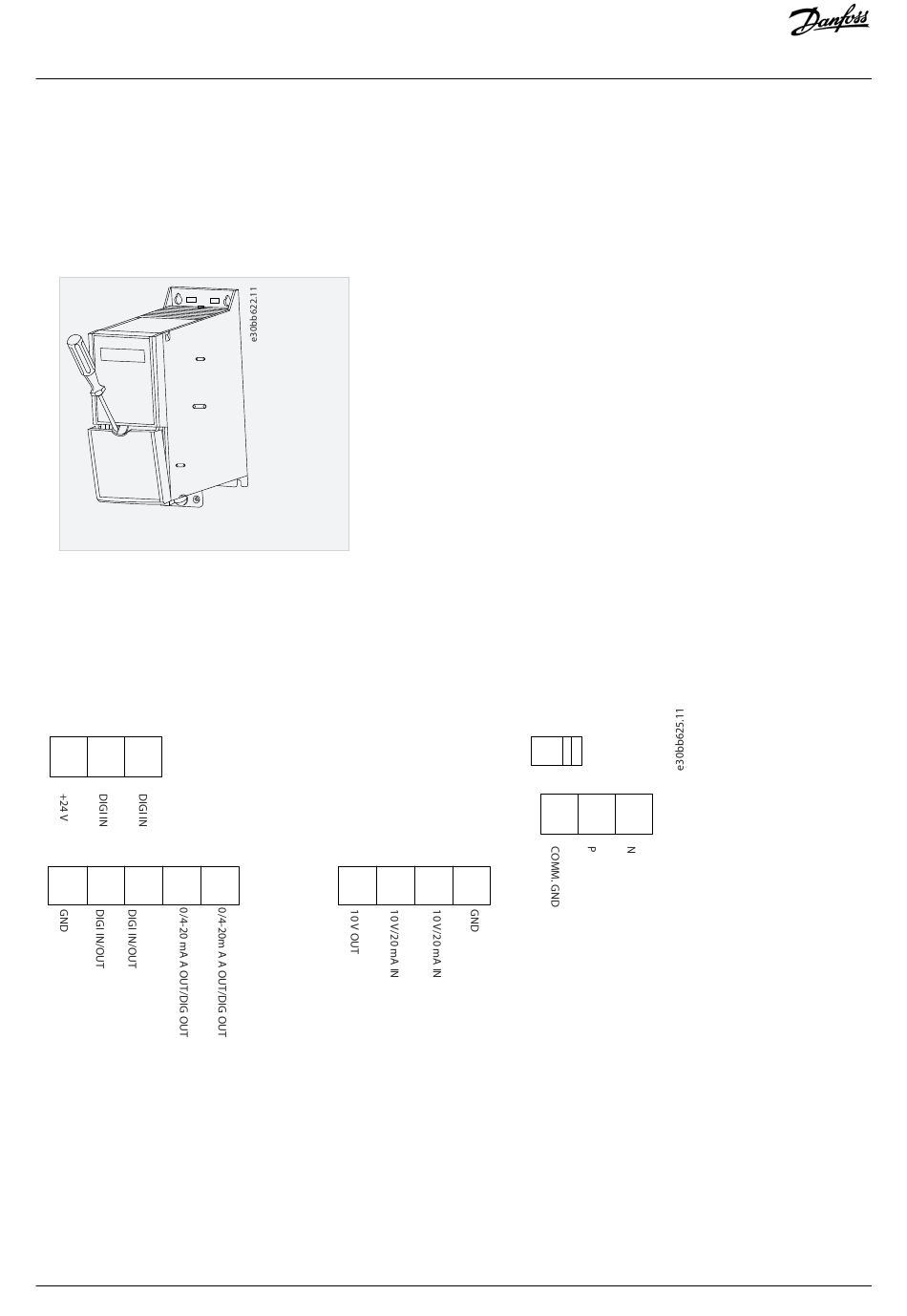

Illustration 10:
Removing the Terminal Cover
2. Tilt the screwdriver outwards to open the cover.
3.2.6.2 Setting the Control Terminals to Run the Compressor
Context:
BUS TER.
OFF
ON
12
20
55
61
68
69
50
53
54
55
20
27
29
42
45
Illustration 11:
Overview of the Control Terminals
Danfoss A/S © 2019.12
AQ321748767627en-000101 / 130R0570| 21
