Bdcom S2928F Hardware Installation Manual page 17

Because 8 10/100Base-T ports of S2928F support the MDI/MDIX auto-identification of
the cable, S2928F can adopt five classes of direct-through/crossover network cables
when it connects to other Ethernet terminals.

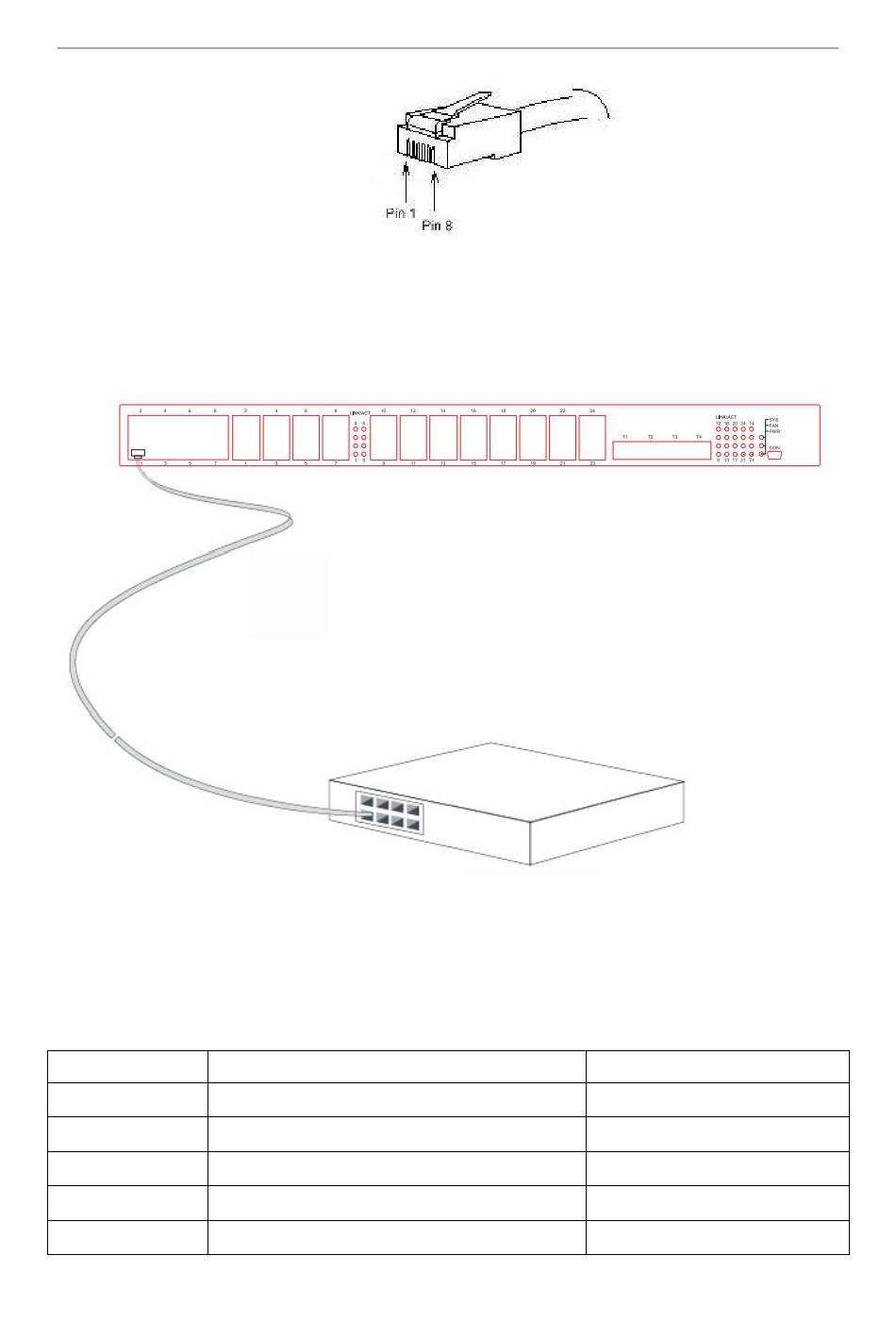

Figure 3-7 Connecting the 1000Base-TX port and other Ethernet terminals
Caution: The figure shown above does not represent the material S2928F.
No.
1 Sending/receiving the normal phase of data 0
2 Sending/receiving the paraphase of the data 0
3 Sending/receiving the normal phase of data 1
4 Sending/receiving the normal phase of data 2
5 Sending/receiving the paraphase of the data 2
Figure 3-6 The RJ45 connector of the console port
Table 3- 2 Pins of gigabit RJ45 ports
Pin Name
- 14 -
S2928F Hardware Installation Manual
Symbol
TP0+
TP0-
TP1+
TP2+
TP2-
