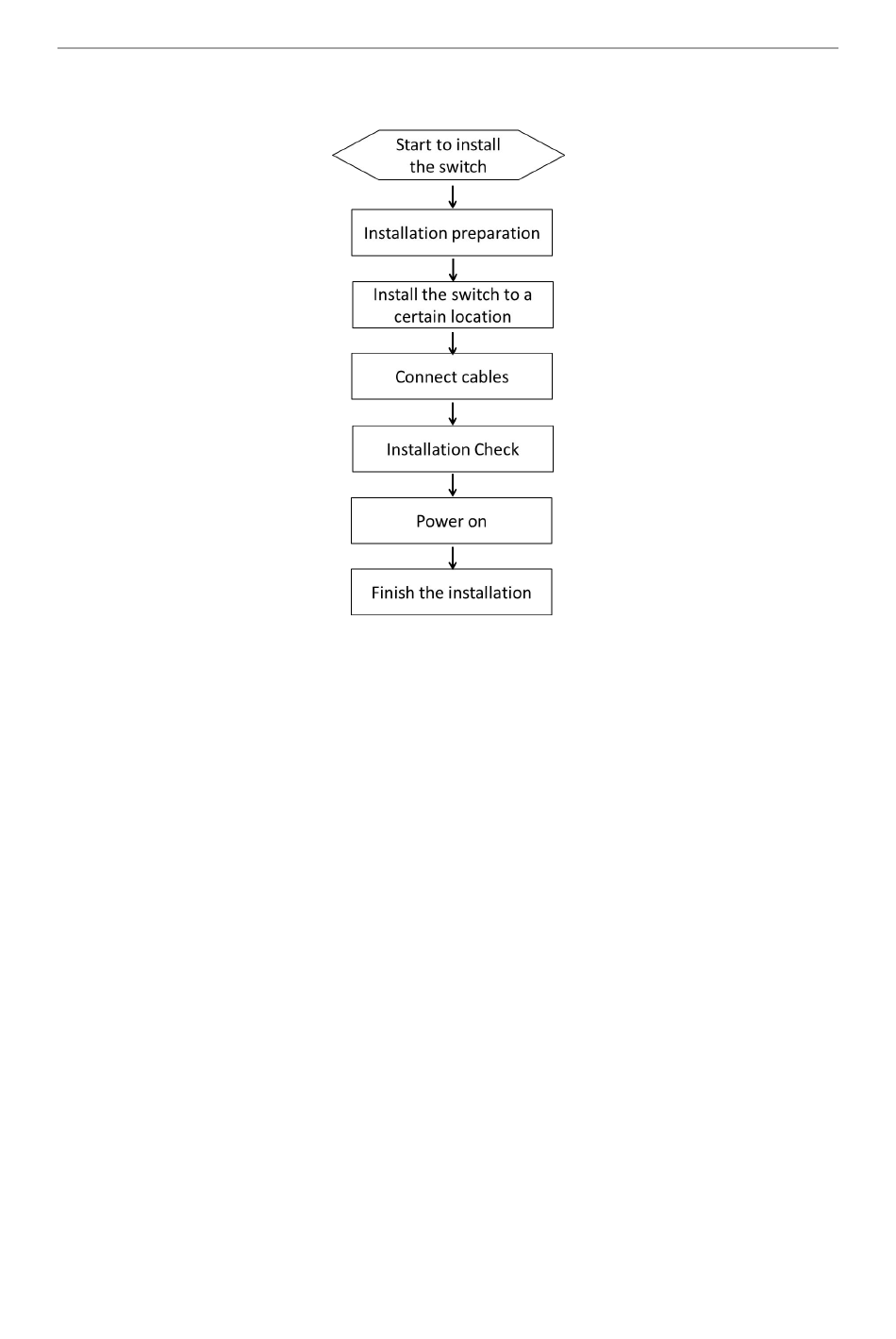

3.1 Installation Flow of S2928F

3.2 Installing the Chassis of the Switch

The chassis of the router can be installed on the desk or can be fixed to other cabinets.
Your network installation requirements can be met if you conduct the operations
according to the following procedure. It can be described in the following two parts:
 Installing the Chassis on the Desk
 Installing the Chassis on the Cabinet
3.2.1

Installing the Chassis on the Desk

The S2928F switch can be directly put on the smooth and safe desk.
Note:
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.
3.2.2

Installing the Chassis on the Cabinet

The chassis of the switch is fixed on the cabinet through the brackets. When you fix the
brackets, the front template of the switch faces forward. The detailed operations are
shown in Figure 3-1.
