Internal Connectors; Usb Connector; Debug 80 Port Connector - Nexcom NDiS S538 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

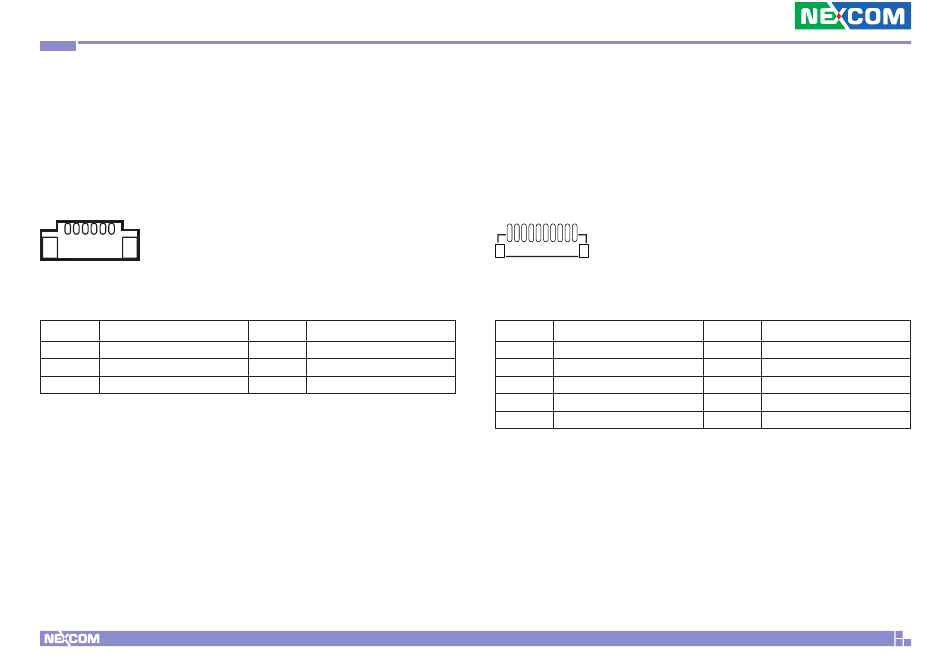

USB Connector

Connector type: 1x6 6-pin header, 1.25mm pitch
Connector location: J2
1 6
Pin Definition
1 VCC
3 USB_P
5 USB_P
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB_N
4 USB_N
6 GND

Debug 80 Port Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J4
1 10
Pin Definition
1 GND
3 33M_CLK
5 LPC_AD3
7 LPC_AD1
9 3.3V
15
Pin Definition
2 PCIRST#
4 LPC_FRAME#
6 LPC_AD2
8 LPC_AD0
10 3.3V
NDiS S538 User Manual
