Chapter 2: Jumpers and Connectors

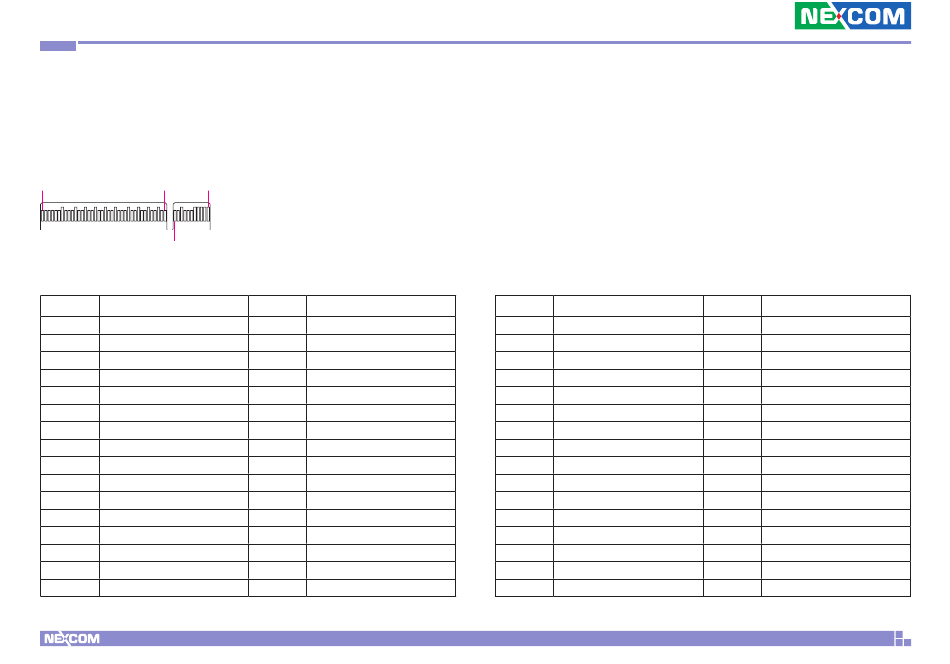

PCIe x8 Connector (Gold Finger)

Connector type: PCIe x8 Gold Finger
Connector location: GFM1
A49/B49 A12/B12 A1/B1
A11/B11
Pin Definition
A1 +12V_SW
A2 +12V_SW
A3 +12V_SW
A4 GND
A5 GND
A6 PWRGD#
A7 SLP_S4
A8 SDM_DET#
A9 CEC
A10 I2C0_SDA_ROM
A11 I2C0_SCL_ROM
A12 GSPI0_CLK
A13 GSPI0_CS_N
A14 GND
A15 PCIe_TX+
A16 PCIe_TX-
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
B1 +12V_SW
B2 +12V_SW
B3 +3VSB_DSW
B4 GND
B5 GND
B6 PWRBTN#_IN
B7 RESET#
B8 SYAFAN
B9 GND
B10 I2C1_SDA
B11 I2C1_SCL
B12 GSPI0_MOSI
B13 GSPI0_MISO
B14 GND
B15 COM1_TXD
B16 COM1_RXD
Pin Definition
A17 GND
A18 PCIe_RX+
A19 PCIe_RX-
A20 GND
A21 PCIe_Clk+
A22 PCIe_Clk-
A23 GND
A24 PCIE_WAKE#
A25 PCIE_CLKREQ#
A26 PCIE_RST#
A27 GND
A28 TMDS_CLK-
A29 TMDS_CLK+
A30 GND
A31 TMDS0-
A32 TMDS0+
13
Pin Definition
B17 GND
B18 USB3TX_P
B19 USB3TX_N
B20 GND
B21 USB3RX_P
B22 USB3RX_N
B23 GND
B24 USB2P
B25 USB2N
B26 USB_OC
B27 GND
B28 DP3-
B29 DP3+
B30 GND
B31 DP2-
B32 DP2+
