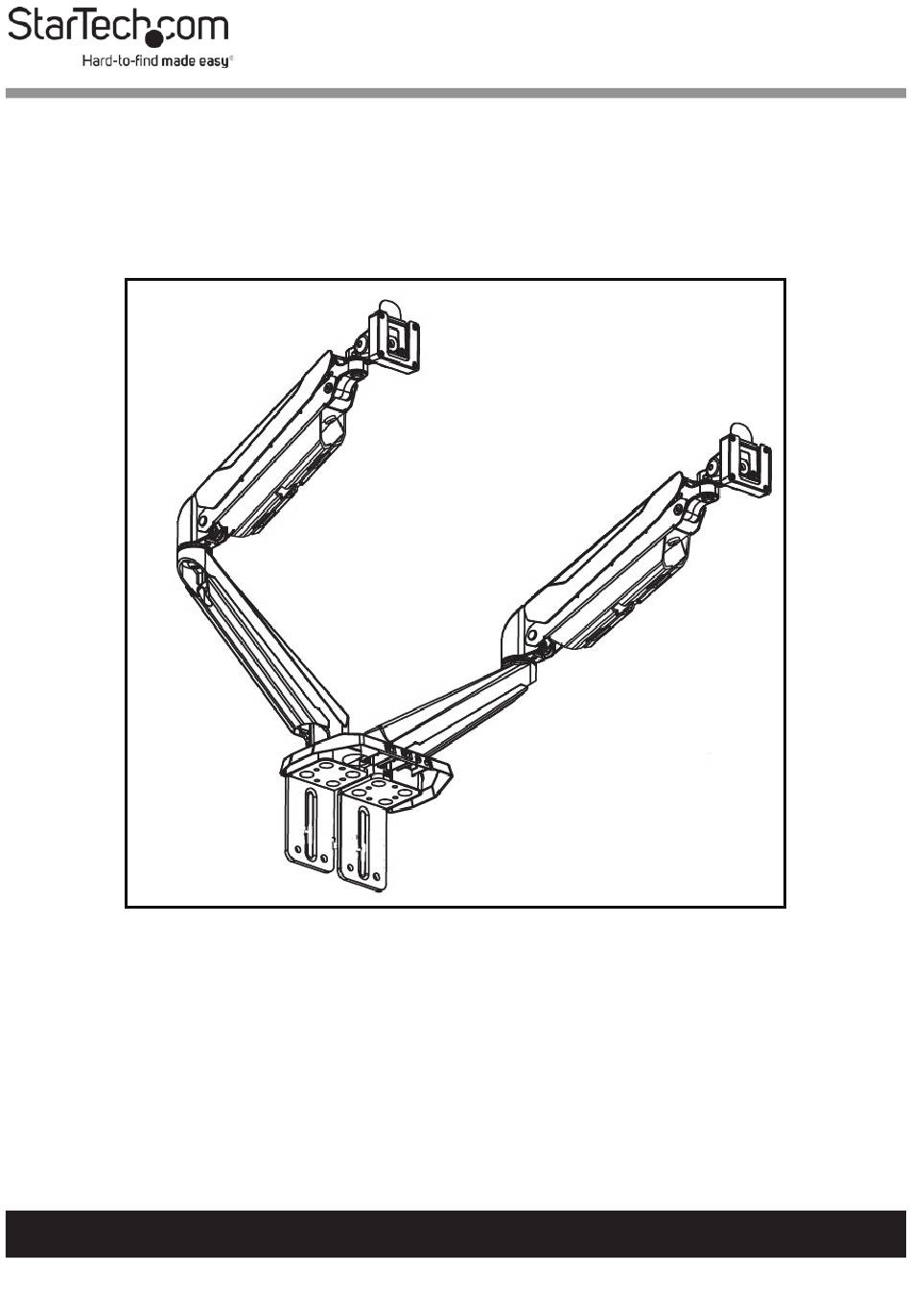

Assembling the Monitor Mount

Align the four Screw Holes on the top of the Upper Clamps
1.
with the four Screw Holes on the bottom of the Base of the
Arm Assembly.
Insert eight M6 x 12 mm Hex Screws through the Screw
2.
Holes on the Upper Clamps and into the Screw Holes on
the bottom of the Base.
Using the 4 mm Hex Key, tighten the M6 x 12 mm Screws,
3.
being careful not to over-tighten.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Installing the Upper Clamps
