STEVAL-PCC012V1 STM32F107xx connectivity gateway,
1
Introduction
This user manual describes the implementation of the STEVAL-PCC012V1 demonstration
board. The STEVAL-PCC012V1 demonstration board is equipped with an Ethernet
interface, four digital/analog extension connectors (I
two different Wi-Fi modules, an OFDM PRIME power line networking extension connector
and a microSD™ Card socket with SPI interface. It also features a 5-way general purpose
joystick, four general purpose LEDs and two LEDs dedicated to user interface.
The demonstration board also includes digital/analog input/output connectors pinout
compatible with existing demonstration boards from STMicroelectronics™:
●
STEVAL-CCA021V1 - audio demonstration board (stereo DAC, Class-D amplifier)
●
STEVAL-MKI0xxV1 - MEMS demonstration boards (gyroscope, accelerometer) that
are compatible with 24 DIL socket
●
EVALST7590-1 - ST7590 "PRIME" board - narrow-band OFDM power line networking
PRIME compliant system-on-chip.
The demonstration board can be supplied from a standard DC power supply (7 - 35 V DC)
or directly using a 24 V DC industrial mains supply.

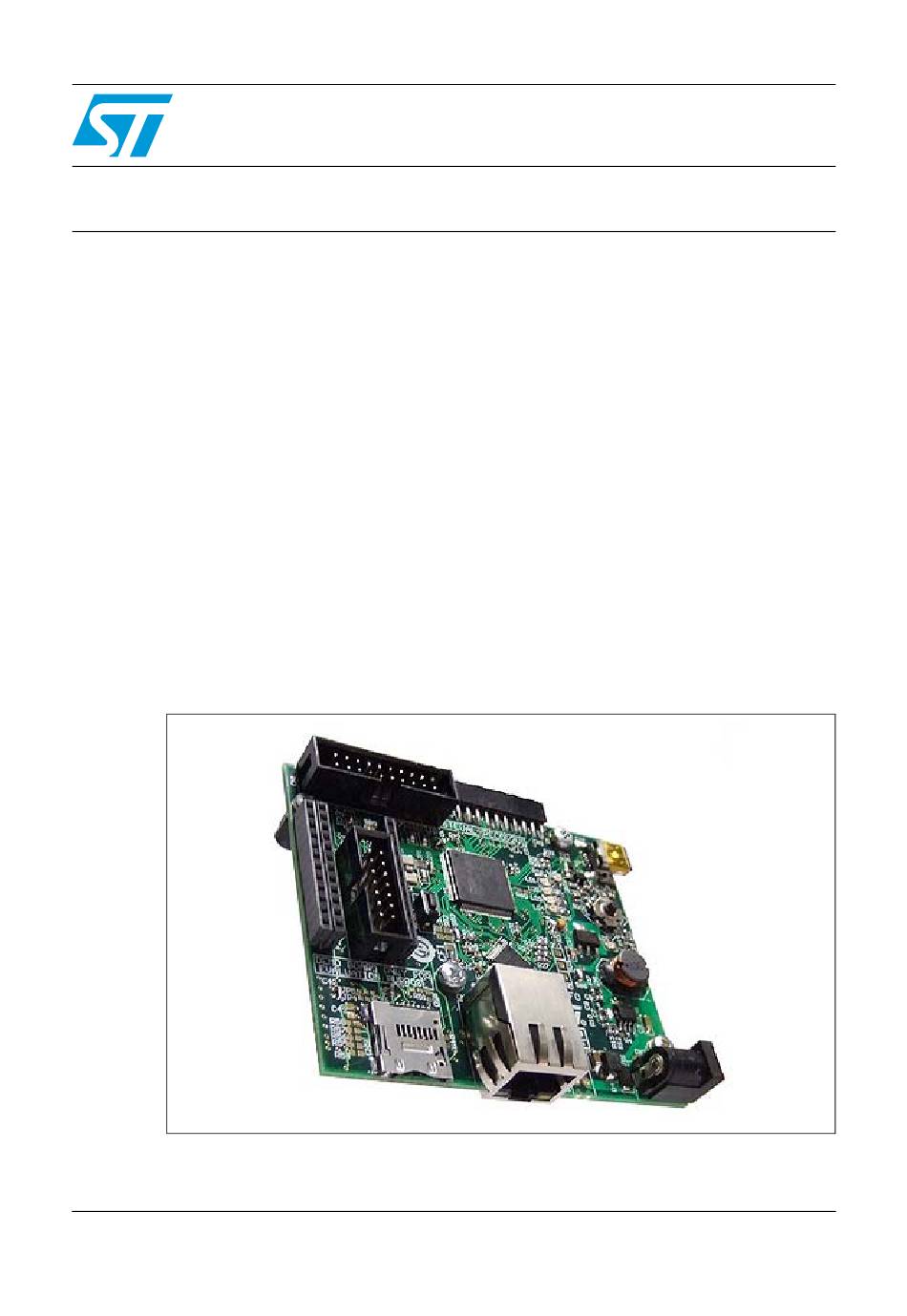

Figure 1.
April 2011
www.BDTIC.com/ST
STEVAL-PCC012V1
Doc ID 17009 Rev 2
UM0896
User manual
demonstration board
2
C, SPI, etc.), two footprint positions for
1/43
www.st.com
Advertisement
Table of Contents
Related Manuals for ST STM32F107Series
Summary of Contents for ST STM32F107Series
-
Page 1: Introduction
The demonstration board can be supplied from a standard DC power supply (7 - 35 V DC) or directly using a 24 V DC industrial mains supply. Figure 1. STEVAL-PCC012V1 April 2011 Doc ID 17009 Rev 2 1/43 www.st.com www.BDTIC.com/ST... -
Page 2: Table Of Contents
USB connector CN4 ......... 21 2/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... - Page 3 Revision history ......... . . 42 Doc ID 17009 Rev 2 3/43 www.BDTIC.com/ST...
- Page 4 Document revision history ..........42 4/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST...
- Page 5 Connectivity Gateway Webserver demonstration ....... . 38 Doc ID 17009 Rev 2 5/43 www.BDTIC.com/ST...
-
Page 6: Steval-Pcc012V1 Key Features
● Digital/analog extension connectors compatible with STEVAL-MKI0xxV1 ● Digital/analog extension connectors compatible with STEVAL-CCA021V1 ● Extension connector for ST7590 “PRIME” board - narrow-band OFDM power line networking PRIME compliant system-on-chip. Figure 2. STEVAL-CCA021V1 6/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 7: Order Code
Refer to user manual UM0722 for details on how to use the STEVAL-CCA021V1. Order code Table 1. Order code Part number Note STEVAL-PCC012V1 STM32F107xx connectivity gateway STEVAL-CCA021V1 Audio demonstration board (stereo DAC, Class-D amplifier) Doc ID 17009 Rev 2 7/43 www.BDTIC.com/ST... -
Page 8: Block Diagram
Block diagram UM0896 Block diagram Figure 4. Block diagram of STEVAL-PCC012V1 8/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 9: Demonstration Board Layout
Test points network extension connector SB1, 2, 3 Ethernet options digital extension Optional Debug interface P2, CN2 TXupd, RXupd for Wi-Fi module-1 microSD power plugs Ethernet optional Wi-Fi module-2 socket Wi-Fi module-2 7-24 VDC Doc ID 17009 Rev 2 9/43 www.BDTIC.com/ST... -
Page 10: Configuration
SB3 must be configured according to the mode chosen. MII is chosen as a default option. Table 3. Ethernet PHY configuration defined by SB1, SB2 and SB3 Function RMII Fit 0 Ω resistor Removed Fit 0 Ω resistor Removed Fit 0 Ω resistor Removed 10/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 11: Power Supply
U2 DC/DC converter jumpers Jumper Description Configuration To run DC/DC U2 on higher frequency R4 must be assembled with 102 kΩ resistor. Other components of the DC/DC must be changed accordingly. (Default - not assembled) Doc ID 17009 Rev 2 11/43 www.BDTIC.com/ST... -
Page 12: General Purpose 5-Way Joystick Sw1
SPI signals can be also configured as analog inputs of the STM32 microcontroller ADC for optionally attached analog MEMS module. Please refer to Section 5.7 for details. 12/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 13: I 2 C, Usart Signals Branching For Mems, Wi-Fi, Digital Audio
C SCL is connected to DAC_FTM1 signal of CN3 (audio). The jumper must be set as shown: (3-pin resistor) GPIO PE1PB6 is connected to DAC_FTM1 signal of CN3 (audio). The jumper must be set as shown: Doc ID 17009 Rev 2 13/43 www.BDTIC.com/ST... -
Page 14: Analog Signals Branching For Mems
PHY or not. If the PHY is used, only X2 can be used. Reset button A manual reset button (RESET) is available on the board top side. It resets the STM32 microcontroller, both optional Wi-Fi modules U9, U10 and the Ethernet PHY U8. 14/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 15: Usb-Otg Configuration
The microSD Card connector connected to the SPI1 interface of the STM32 microcontroller is available on the board. MicroSD Card detection is done through PA4 GPIO signal when the card is inserted. Figure 6. SD Card formats Doc ID 17009 Rev 2 15/43 www.BDTIC.com/ST... -
Page 16: Wi-Fi Optional Modules
SDIO description SPI description STM32 SPI signals GPIO4 - SD_CMD MOSI MOSI GPIO5 - SD_D0 MISO MISO GPIO6 - SD_D1 — — GPIO7 - SD_D2 — — GPIO8 - SD_3 SCS_N GPIO9 - SD_CLK 16/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 17: Connectors
JTRST JTDO JTCK DBGACK JTDI JRST Audio extension connector CN3 The CN3 connector allows to connect an STEVAL-CAA021V1 audio demonstration board. Figure 8. S audio connector of the TS4657 audio card - schematic Doc ID 17009 Rev 2 17/43 www.BDTIC.com/ST... -
Page 18: Analog/Digital Mems Extension Connector Cn6 And Cn8
CN6 and CD8 in the same time. The MEMS extension when plugged uses only the right half of the CN8 connector terminals. The left half is free even if the MEMS extension is plugged. Figure 9. Digital MEMS connector pinout 18/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 19: Table 19. Digital Mems Connector Signals
- SCL CS_MEMS Chip select for the SPI device Power-down of the device Full scale of the measured range SelfTest Int2 Interrupt request Int1 Interrupt request Figure 10. GPIO and analog connector pinout Doc ID 17009 Rev 2 19/43 www.BDTIC.com/ST... -
Page 20: Power Line Networking Extension Connector Cn7
UART and SPI. Figure 11. Connector CN7 for PLM, USART and SPI interface Table 21. Connector CN7 for PLM, USART and SPI interface Signal Signal USART_TXD_LV+3V3 USART_RDX_LX VCC_LV MISO_LV SCLK0_LV MOSI_LV SSN0_LV 20/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 21: Power Test Points
There is USB mini connector on the board. The terminal pin description is shown in Table Table 23. USB connector CN4 signals Signal description USB_VBUS ID OTG identification of the device connected USB-DP data plus signal USB-DM data minus signal Doc ID 17009 Rev 2 21/43 www.BDTIC.com/ST... -
Page 22: U10 Wi-Fi Module-2 Debugging Signals Txupd And Rxupd
Ethernet RJ45 connectors CN5 Figure 12. Ethernet RJ45 connectors CN5 - front view Table 25. RJ45 connectors CN5 Description Description TxData+ TxData– RxData+ RxData– MicroSD Card connector CN9 Figure 13. MicroSD Card connector CN9 22/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 23: Table 26. Microsd Card Connector Cn9
UM0896 Connectors Table 26. MicroSD Card connector CN9 Description Pin number Description CS_SDcard (PE7) MISO (SPI - PA6) MOSI (SPI - PA7) +3.3 V (SPI - PA5) SD_detect (PA4) Doc ID 17009 Rev 2 23/43 www.BDTIC.com/ST... -
Page 24: Schematics
Connectors UM0896 6.10 Schematics Figure 14. Power supply 24/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 25: Figure 15. Stm32 - Part 1(Inputs, Outputs, Clock, Reset)
UM0896 Connectors Figure 15. STM32 - part 1(inputs, outputs, clock, reset) Doc ID 17009 Rev 2 25/43 www.BDTIC.com/ST... -
Page 26: Figure 16. Stm32 - Part 2 (Jtag, Leds, Audio Extension Connector)
Connectors UM0896 Figure 16. STM32 - part 2 (JTAG, LEDs, audio extension connector) 26/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 27: Figure 17. Stm32 - Part 3 (Joystick, Analog Decoupling, Dac_Fmt Signals)
UM0896 Connectors Figure 17. STM32 - part 3 (joystick, analog decoupling, DAC_FMT signals) Doc ID 17009 Rev 2 27/43 www.BDTIC.com/ST... -
Page 28: Figure 18. Ethernet - Part 1 (Phy Pinout)
Connectors UM0896 Figure 18. Ethernet - part 1 (PHY pinout) 28/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 29: Figure 19. Ethernet - Part 2 (Overvoltage Protection, Phy Configuration)
UM0896 Connectors Figure 19. Ethernet - part 2 (overvoltage protection, PHY configuration) Doc ID 17009 Rev 2 29/43 www.BDTIC.com/ST... -
Page 30: Figure 20. Ethernet - Part 3 (Magnetics)
Connectors UM0896 Figure 20. Ethernet - part 3 (magnetics) 30/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 31: Figure 21. Usb-Otg
UM0896 Connectors Figure 21. USB-OTG Doc ID 17009 Rev 2 31/43 www.BDTIC.com/ST... -
Page 32: Figure 22. Wi-Fi Module-1
Connectors UM0896 Figure 22. Wi-Fi module-1 32/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 33: Figure 23. Wi-Fi Module-2
UM0896 Connectors Figure 23. Wi-Fi module-2 Doc ID 17009 Rev 2 33/43 www.BDTIC.com/ST... -
Page 34: Figure 24. Microsd Card
Connectors UM0896 Figure 24. MicroSD Card 34/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 35: Figure 25. Mems Extension Connectors
UM0896 Connectors Figure 25. MEMS extension connectors Doc ID 17009 Rev 2 35/43 www.BDTIC.com/ST... -
Page 36: Power Supply Connectors Cn2, P2
Figure 26. Power supply connector CN2 Table 27. Power supply connector CN2 Signal Signal 24 V DC Figure 27. Power supply connector P2 Table 28. Power supply connector P2 Signal 24 V DC 36/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 37: Evaluation Software
The selected function of the board is shown by LEDs after the IP address is resolved as shown by Table 29. The position of joystick on the client board controls LEDs on the server board. Doc ID 17009 Rev 2 37/43 www.BDTIC.com/ST... -
Page 38: Table 29. Board Function Indication After Reset For Server/Clients Example
Evaluation software UM0896 Table 29. Board function indication after reset for server/clients example Function LED1 LED2 LED3 LED4 Static IP Client Server Figure 28. Connectivity Gateway Webserver demonstration 38/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... -
Page 39: Bom Of The Board
Header 12 Female connector dual in line Header 10 X 2 S Terminal block Terminal block Male connector with key JTAG 47 kΩ 47 kΩ R12, R13 5.6 kΩ, 91 kΩ 1.28 kΩ Doc ID 17009 Rev 2 39/43 www.BDTIC.com/ST... - Page 40 ST802RT1 JP4, JP5 3-pin jumper resistor 4.7 kΩ JP1, JP2, JP3 3-pin jumper resistor +3.3 V +5.0 V 565790576 PJS008-2000 DDD1 ST_LOGO DDD2, DDD4 ROH1 DDD3 ROH2 hole1, hole2, hole3, hole4 Distance hole 40/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST...
- Page 41 UM0896 BOM of the board Table 30. Bill of material (continued) Designator Value Comment L3, L4 MLS0805-4S4-300 RXupd, TXupd Update Joystick STM32F107VCT6_256K L5973D ST: L5973D STMPS2141STR USBLC6-2P6 ZG2100M Doc ID 17009 Rev 2 41/43 www.BDTIC.com/ST...
-
Page 42: Revision History
Revision history UM0896 Revision history Table 31. Document revision history Date Revision Changes 12-Mar-2010 Initial release. Updated Figure Figure 25 Table 30, corrected typo in 20-Apr-2011 Table 27 Table 42/43 Doc ID 17009 Rev 2 www.BDTIC.com/ST... - Page 43 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
