5. Mechanical Installation

5.1. Working Environment Guidelines

Follow these guidelines to ensure reliable operation of the OEM Control Box:
Keep free from dust and dirt.
l
Keep away from water, solvents, and chemicals.
l
Keep ambient air temperatures flowing into the fan within 0–50°C.
l
Keep the aluminum controller frame temperature within 0–65°C.
l

5.2. Mounting the OEM Control Box

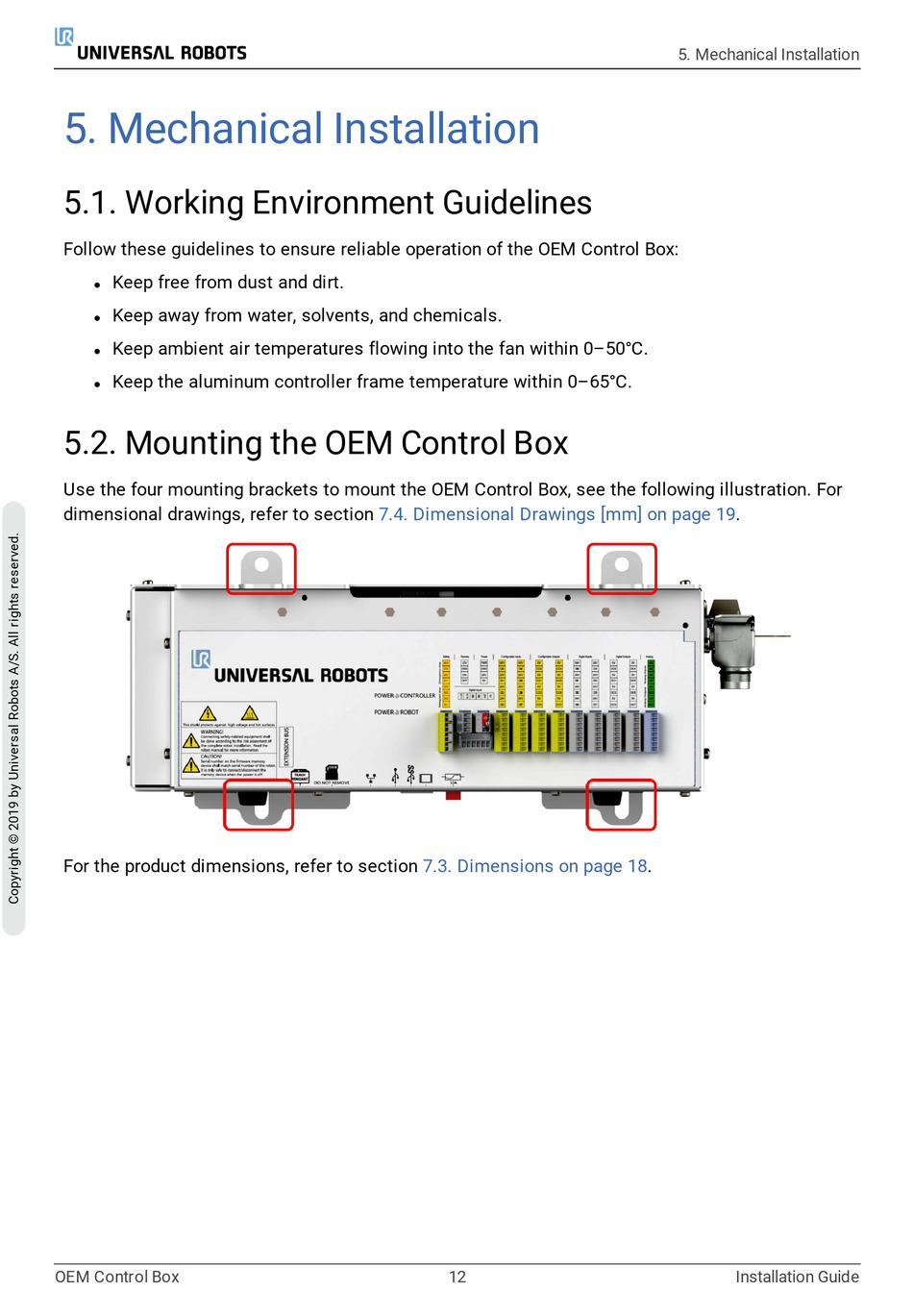

Use the four mounting brackets to mount the OEM Control Box, see the following illustration. For
dimensional drawings, refer to section
For the product dimensions, refer to section
OEM Control Box
7.4. Dimensional Drawings [mm] on
7.3. Dimensions on
12
5. Mechanical Installation
page 19.
page 18.
