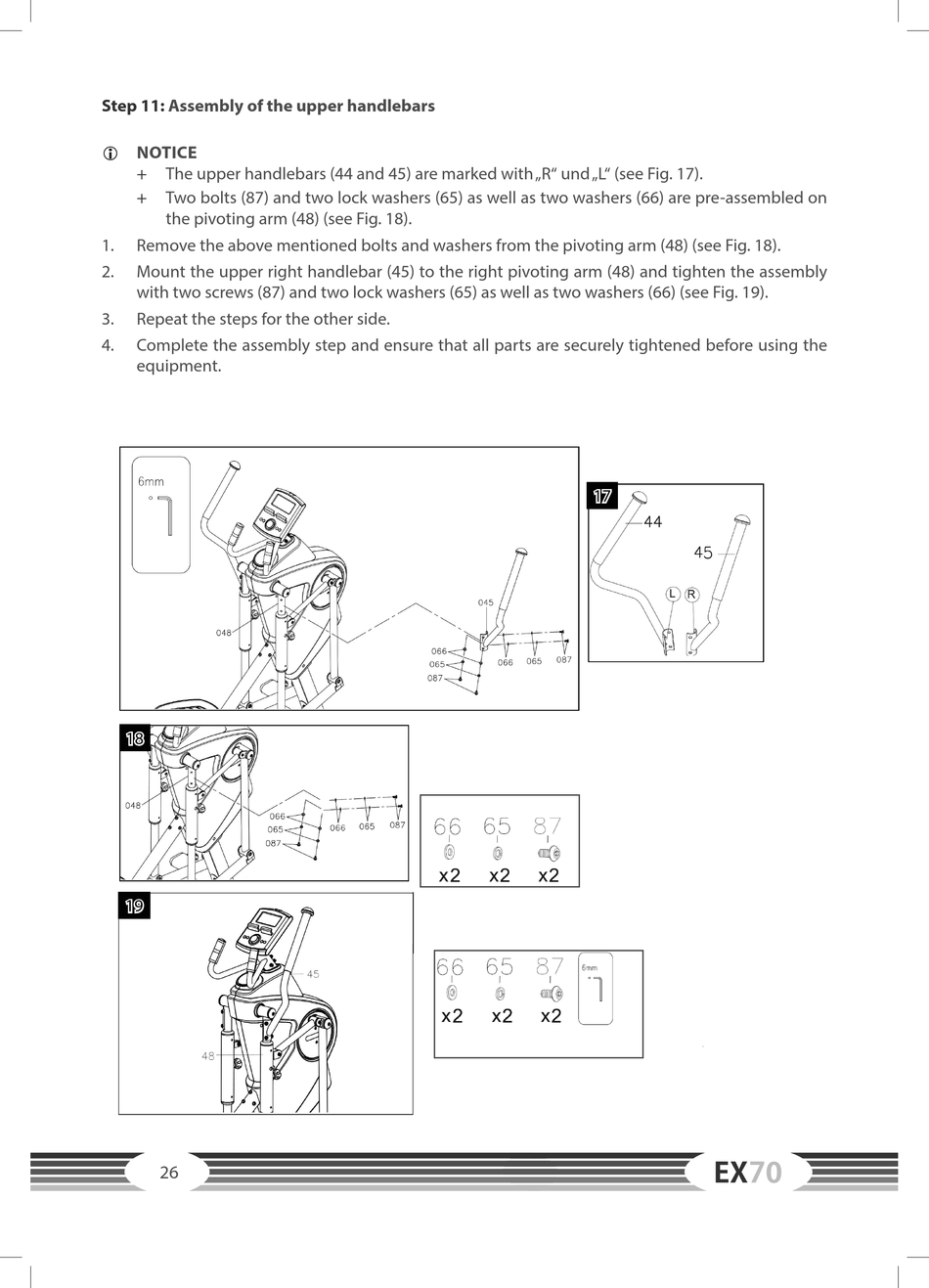

Step 11: Assembly of the upper handlebars
NOTICE
L
+ The upper handlebars (44 and 45) are marked with „R" und „L" (see Fig. 17).
+ Two bolts (87) and two lock washers (65) as well as two washers (66) are pre-assembled on
the pivoting arm (48) (see Fig. 18).
1. Remove the above mentioned bolts and washers from the pivoting arm (48) (see Fig. 18).
2. Mount the upper right handlebar (45) to the right pivoting arm (48) and tighten the assembly
with two screws (87) and two lock washers (65) as well as two washers (66) (see Fig. 19).
3. Repeat the steps for the other side.
4. Complete the assembly step and ensure that all parts are securely tightened before using the
equipment.
