CARDIOSTRONG EX70 Assembly And Operating Instructions Manual page 16

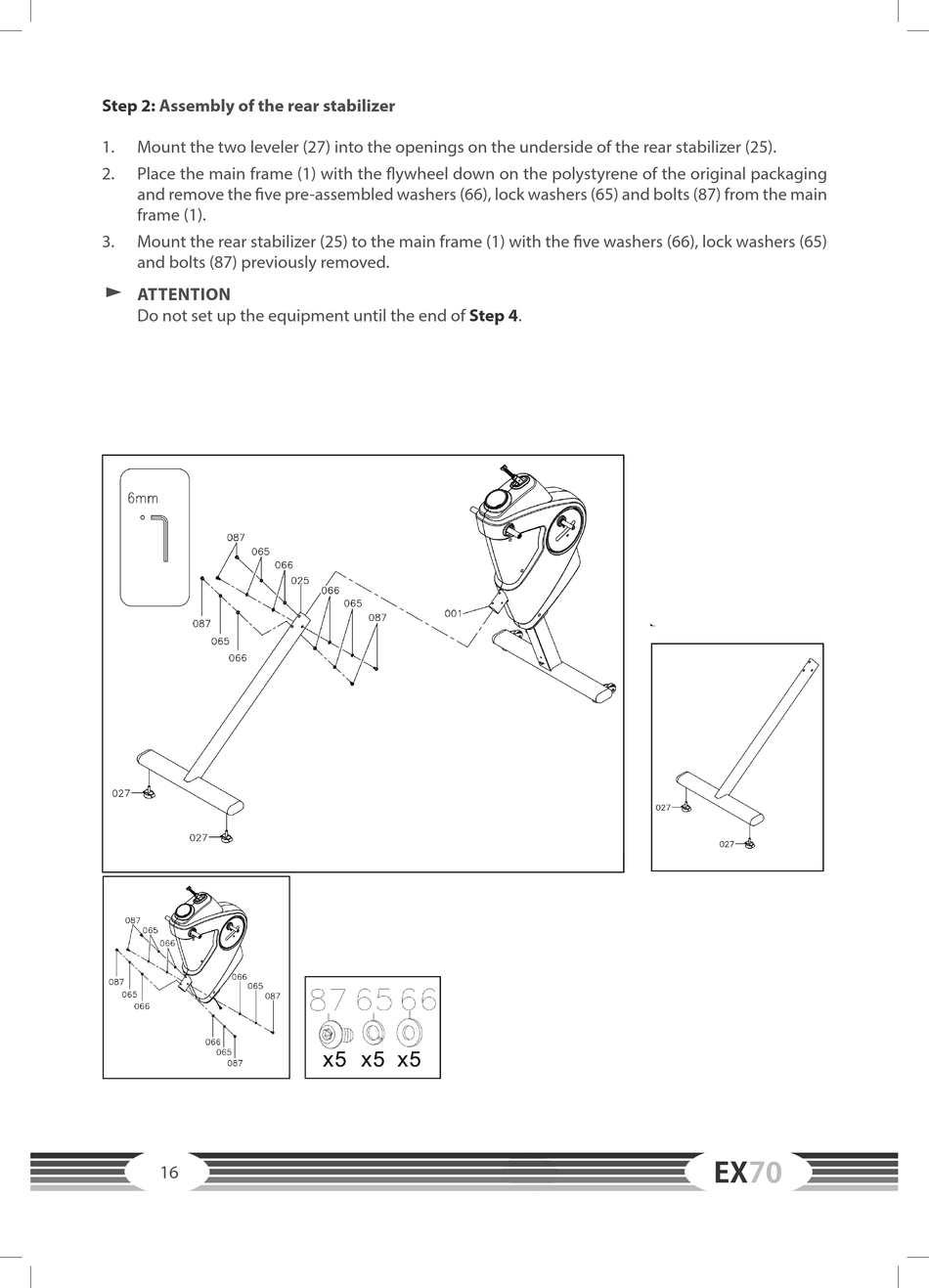

Step 2: Assembly of the rear stabilizer
1. Mount the two leveler (27) into the openings on the underside of the rear stabilizer (25).
2. Place the main frame (1) with the flywheel down on the polystyrene of the original packaging
and remove the five pre-assembled washers (66), lock washers (65) and bolts (87) from the main
frame (1).
3. Mount the rear stabilizer (25) to the main frame (1) with the five washers (66), lock washers (65)
and bolts (87) previously removed.
࣑ ATTENTION
Do not set up the equipment until the end of
16
Step 4.
EX70
