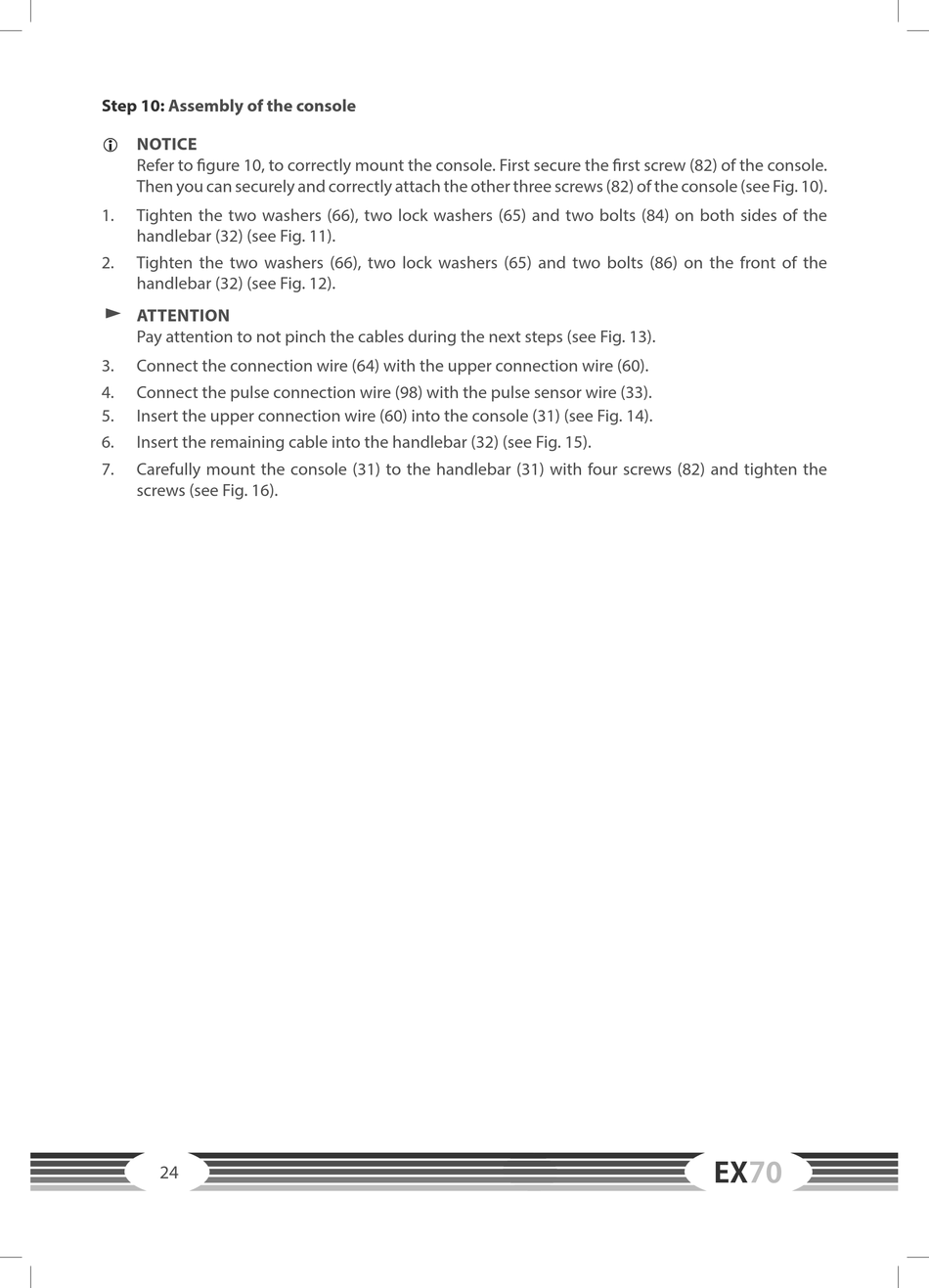

Step 10: Assembly of the console
NOTICE
L
Refer to figure 10, to correctly mount the console. First secure the first screw (82) of the console.
Then you can securely and correctly attach the other three screws (82) of the console (see Fig. 10).
1. Tighten the two washers (66), two lock washers (65) and two bolts (84) on both sides of the
handlebar (32) (see Fig. 11).
2. Tighten the two washers (66), two lock washers (65) and two bolts (86) on the front of the
handlebar (32) (see Fig. 12).
࣑ ATTENTION
Pay attention to not pinch the cables during the next steps (see Fig. 13).
3. Connect the connection wire (64) with the upper connection wire (60).
4. Connect the pulse connection wire (98) with the pulse sensor wire (33).
5. Insert the upper connection wire (60) into the console (31) (see Fig. 14).
6. Insert the remaining cable into the handlebar (32) (see Fig. 15).
7. Carefully mount the console (31) to the handlebar (31) with four screws (82) and tighten the
screws (see Fig. 16).
