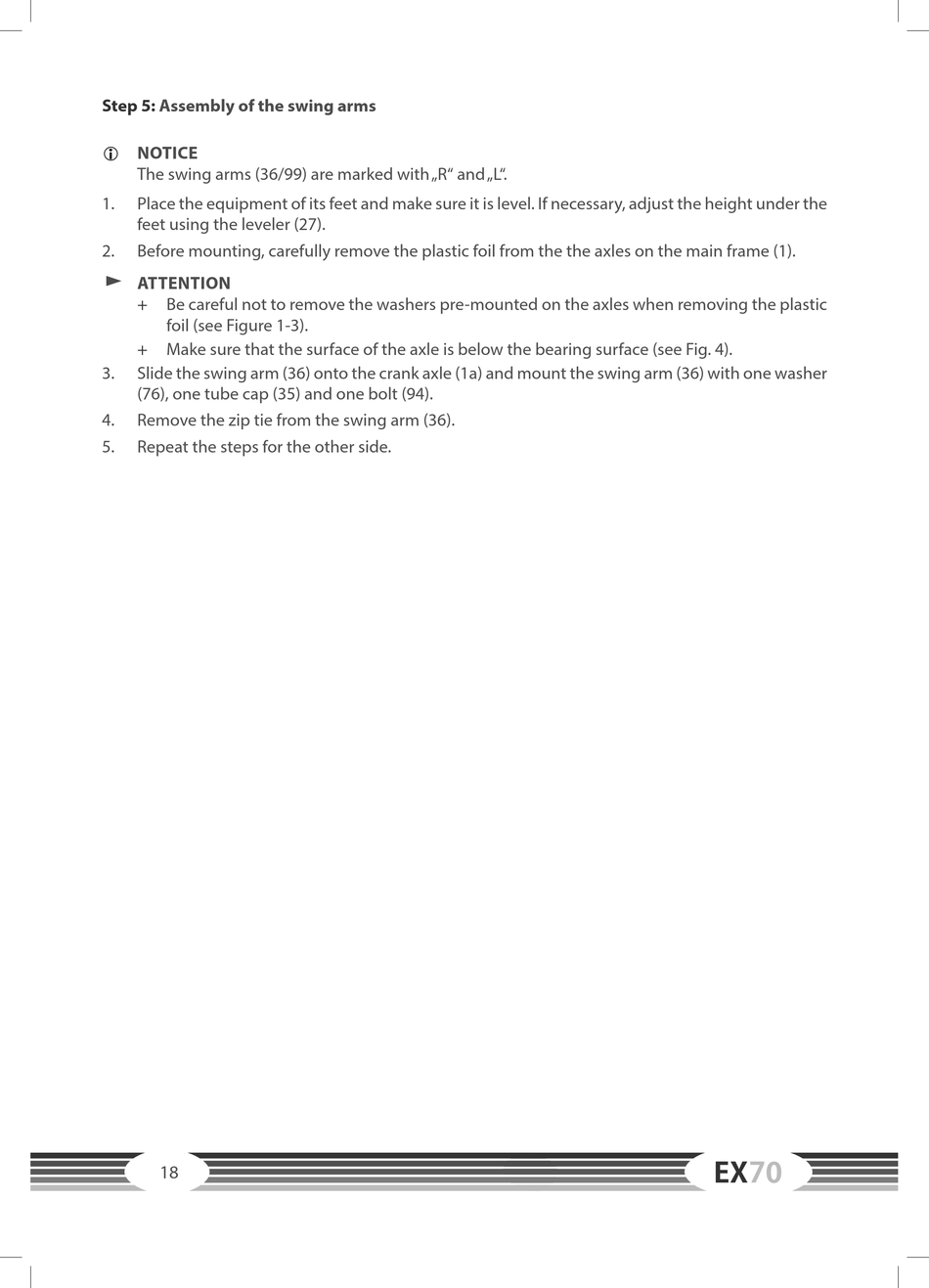

Step 5: Assembly of the swing arms
NOTICE
L
The swing arms (36/99) are marked with „R" and „L".
1. Place the equipment of its feet and make sure it is level. If necessary, adjust the height under the
feet using the leveler (27).
2. Before mounting, carefully remove the plastic foil from the the axles on the main frame (1).
࣑ ATTENTION
+ Be careful not to remove the washers pre-mounted on the axles when removing the plastic
foil (see Figure 1-3).
+ Make sure that the surface of the axle is below the bearing surface (see Fig. 4).
3. Slide the swing arm (36) onto the crank axle (1a) and mount the swing arm (36) with one washer
(76), one tube cap (35) and one bolt (94).
4. Remove the zip tie from the swing arm (36).
5. Repeat the steps for the other side.
