7. Install the mating SPROCKET connectors from the node harness on the machine's gear tooth sensor
connectors.

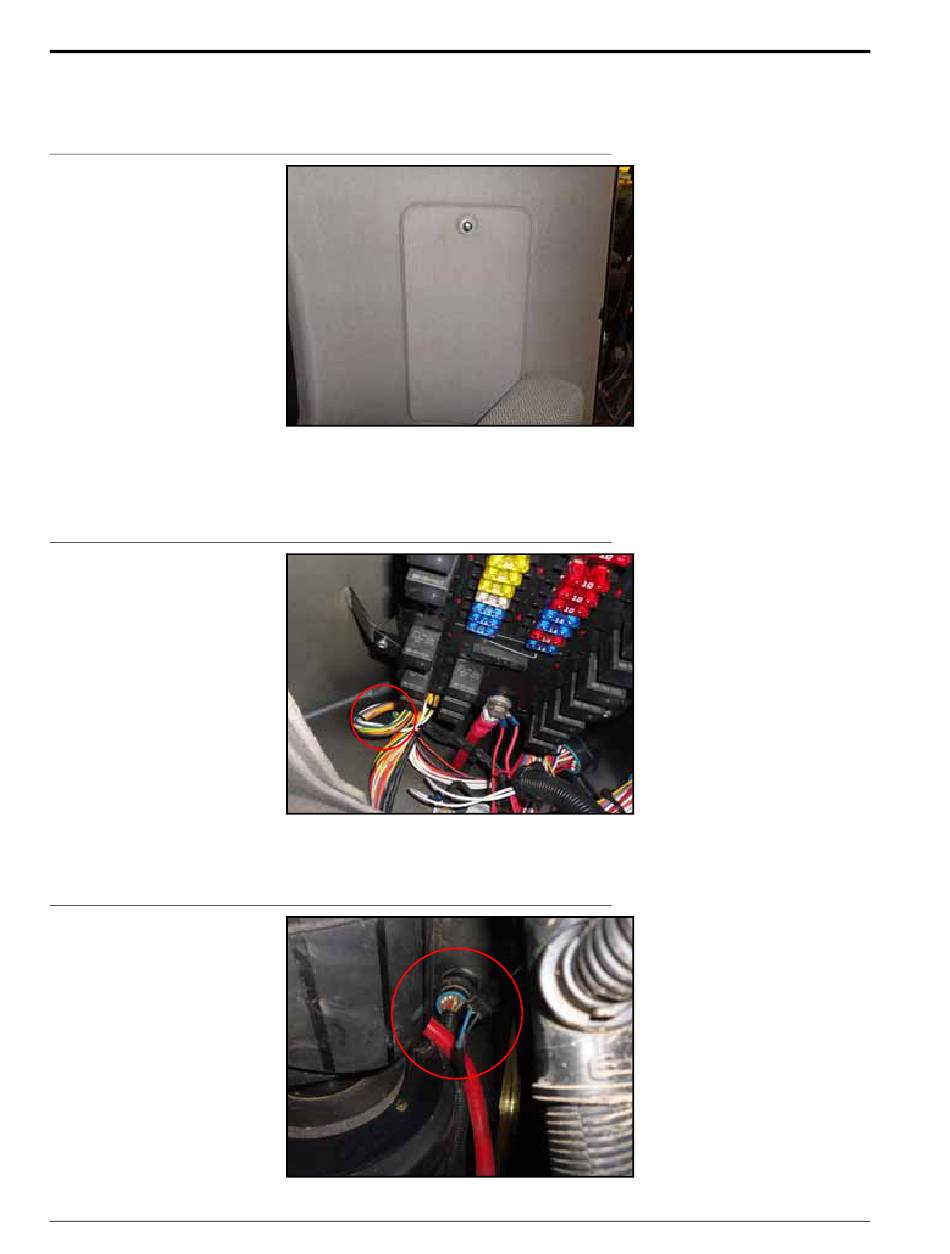

FIGURE 12. Fuse Panel
8. Route the large, round bulkhead connectors from the node harness behind the seat and to the fuse panel.
9. Remove the fuse panel cover.
FIGURE 13. Machine's Bulkhead Connection
10. Identify the machine's harness bulkhead connector below the fuse panel and toward the rear of the cab.
FIGURE 14. Bulkhead Connector Outside the Cab
12
Case IH X010, X120, and X230 Series Steering Ready Combines SmarTrax™ Installation Manual
