Raven SmarTrax Installation Manual page 10

C 2
HAPTER

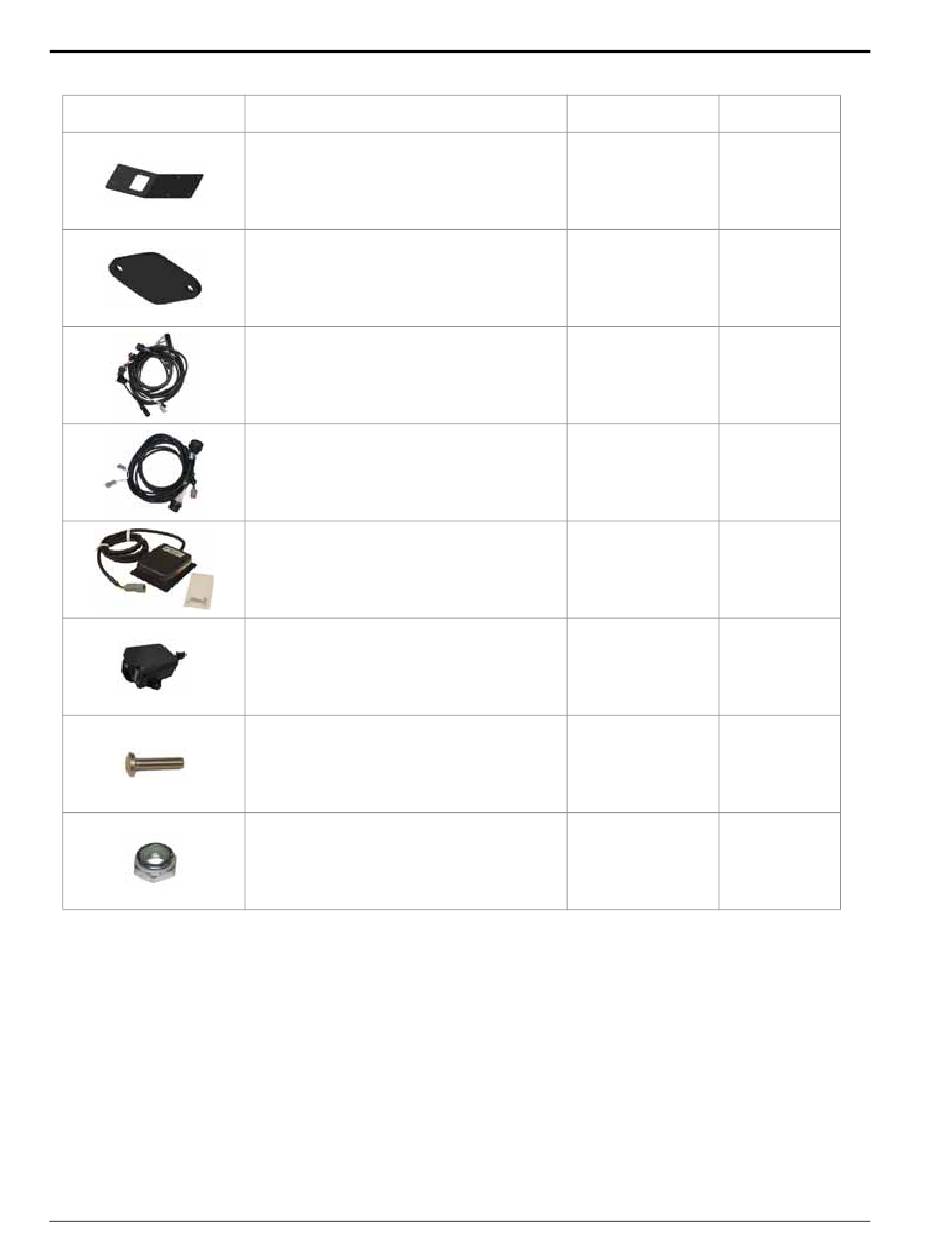

TABLE 1. SmarTrax Installation Kit (P/N 117-5032-024)
6 Case IH X010, X120, and X230 Series Steering Ready Combines SmarTrax™ Installation Manual
Item Description
Bracket - Console Mounting
Bracket - Spacer
Cable - Node Harness
Cable - Valve Harness
Assembly - Enable Foot Switch
Assembly - Road Switch
Screw - #8-32 x 3/4" Phillips
Nut - 3/8"-16 Lock
Part Number
107-0172-180 1
107-0172-182 1
115-4001-181 1
115-4001-182 1
063-0172-470 1
063-0173-505 1
311-0007-041 4
312-4001-109 3
Qty.
