Completing Installation

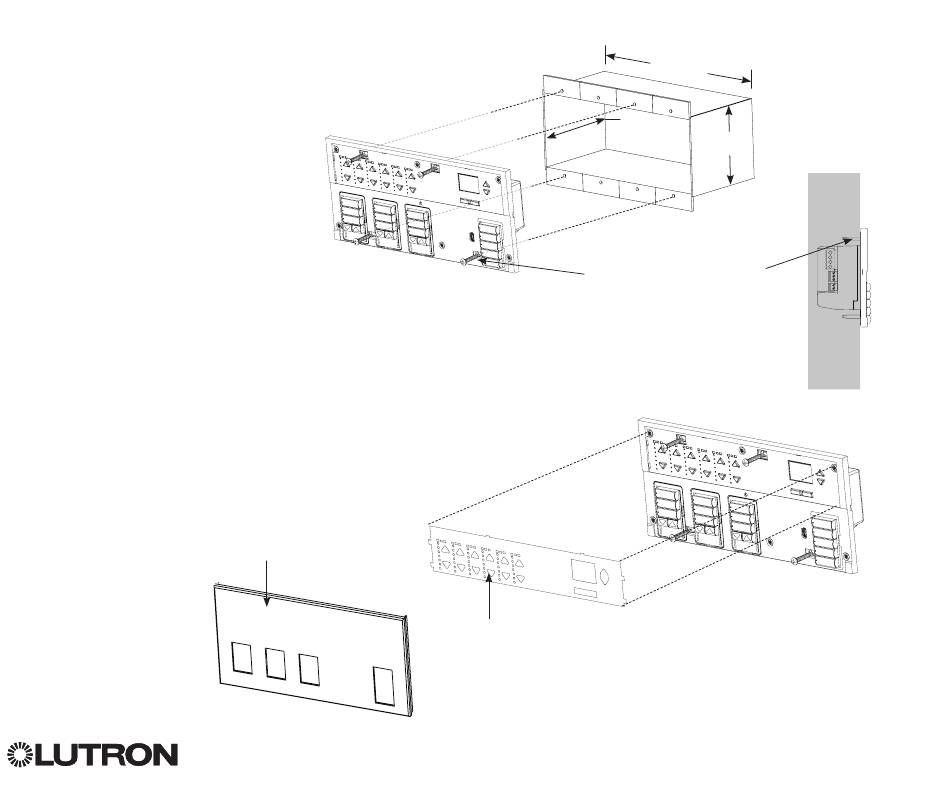

1. Mount the QS Timeclock in the wallbox
as shown using the four screws pro vid ed.
Note: Follow all local and national
electrical codes when installing IEC PELV/
NEC Class 2 wiring with line voltage/
®
mains wiring.
2. Verify installation.
3. Restore power.
4. Apply the protective overlay to the QS
Timeclock.
®
Faceplate
(apply after installation)
Note: When tightening mounting
screws, make sure that the hinged
cover and faceplate will open fully,
as shown.
Protective overlay
(apply after installation)
QS Timeclock Installation and Operation Guide 8
7.9 in
(200 mm)
3.5 in
(87 mm)
3.75 in
(95 mm)
Wall
