Specifications; Figure 8: Specifications - SMC Networks FieldServer QuickServer FS-QS-12 0 Series Startup Manual

3
4.3

Specifications

Available Ports
Power Requirements
Approvals
5
Power Requirements
Physical Dimensions
4
(WxDxH)
4
Weight
Operating Temperature
Surge Suppression
Humidity
"This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference

This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his expense. Modifications not expressly approved by FieldServer
could void the user's authority to operate the equipment under FCC rules."
3
Specifications subject to change without notice
4
XXXX at the end of the part number identifies the code for the specific drivers included in the QuickServer.
5
Excluding external power supply
6
Excluding mounting tabs
FS-QS-1010-XXXX/FS-QS-12X0-XXXX
6-pin Phoenix connector: RS-485 or RS-
232 or RS-422 +/- ground port, power +/-
frame ground port
3-pin RS-485 Phoenix connector: RS-485
+/- ground port
Ethernet-10/100 port
Input Voltage: 9-30VDC or 12-24VAC
Input Power Frequency:
Power Rating:
Current Draw: @ 12V, 150 mA
TUV approved to UL 916 Standard
RoHS Compliant
FCC Part 15 Compliant
DNP compliant
CE Mark
BTL Mark
Multi-mode power adapter: 9-30VDC or 12 - 24VAC
5.05 x 2.91 x 1.6 in. (12.82 x 7.39 x 4.06 cm)
0.4 lbs (0.2 Kg)
-40°C to 75°C (-40°F to167°F)
EN61000-4-2 ESD EN61000-4-3 EMC EN61000-4-4 EFT
5 - 90% RH (non-condensing)

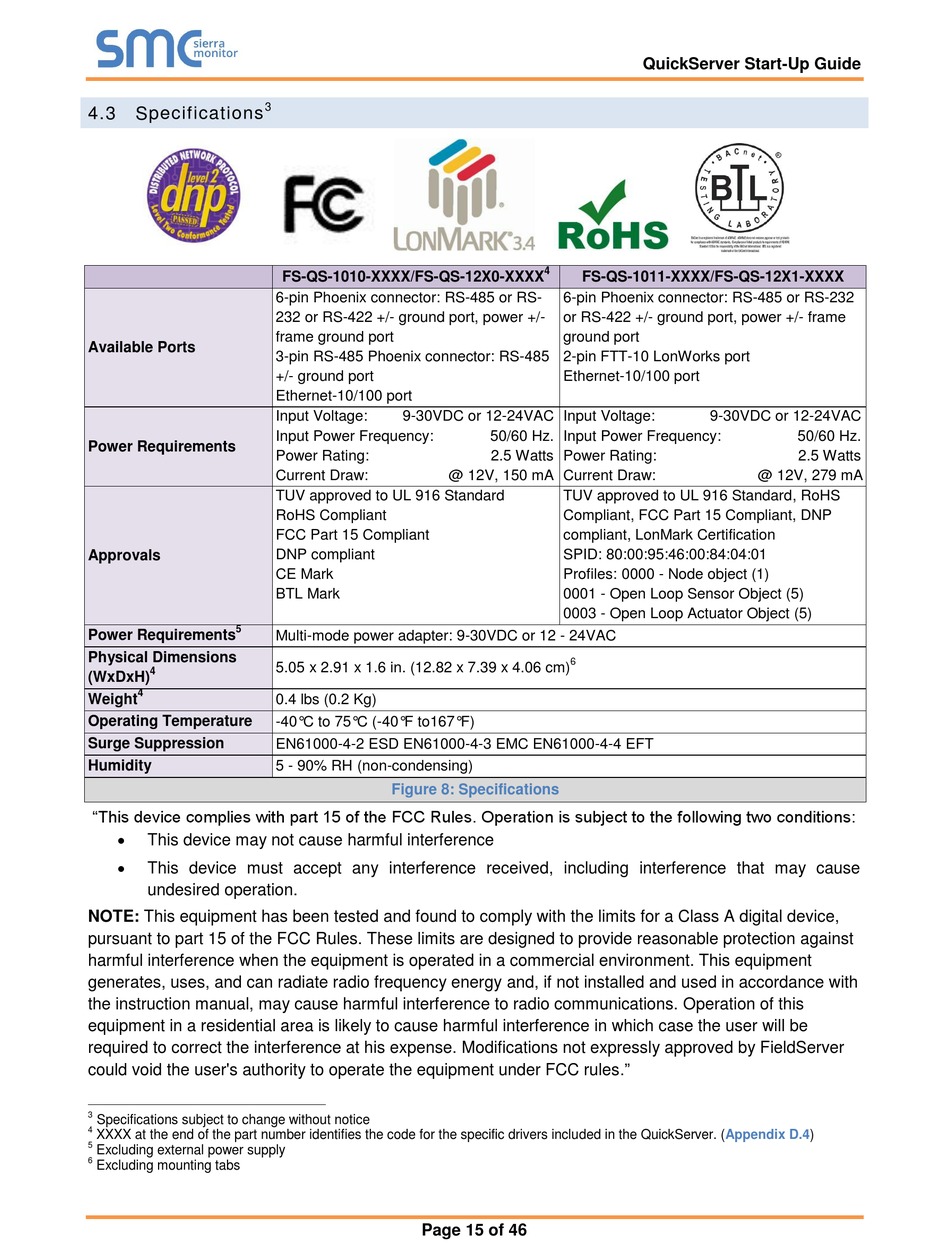

Figure 8: Specifications

Page 15 of 46
QuickServer Start-Up Guide
4
FS-QS-1011-XXXX/FS-QS-12X1-XXXX
6-pin Phoenix connector: RS-485 or RS-232
or RS-422 +/- ground port, power +/- frame
ground port
2-pin FTT-10 LonWorks port
Ethernet-10/100 port
Input Voltage:
50/60 Hz. Input Power Frequency:
2.5 Watts Power Rating:
Current Draw:
TUV approved to UL 916 Standard, RoHS
Compliant, FCC Part 15 Compliant, DNP
compliant, LonMark Certification
SPID: 80:00:95:46:00:84:04:01
Profiles: 0000 - Node object (1)
0001 - Open Loop Sensor Object (5)
0003 - Open Loop Actuator Object (5)
6
9-30VDC or 12-24VAC
50/60 Hz.
2.5 Watts
@ 12V, 279 mA
(Appendix D.4)
