7.3.2 Using the Web GUI to Load a Configuration F ile

In the main menu of the FS-GUI screen, click "Setup", then "File Transfer" and finally "Update".

Browse and select the .csv file, open, then click "Submit".

Once download is complete, a message bar will appear confirming that the configuration was
updated successfully.

Click the System Restart Button to put the new file into operation. Note that it is possible to do
multiple downloads to the QuickServer before resetting it.

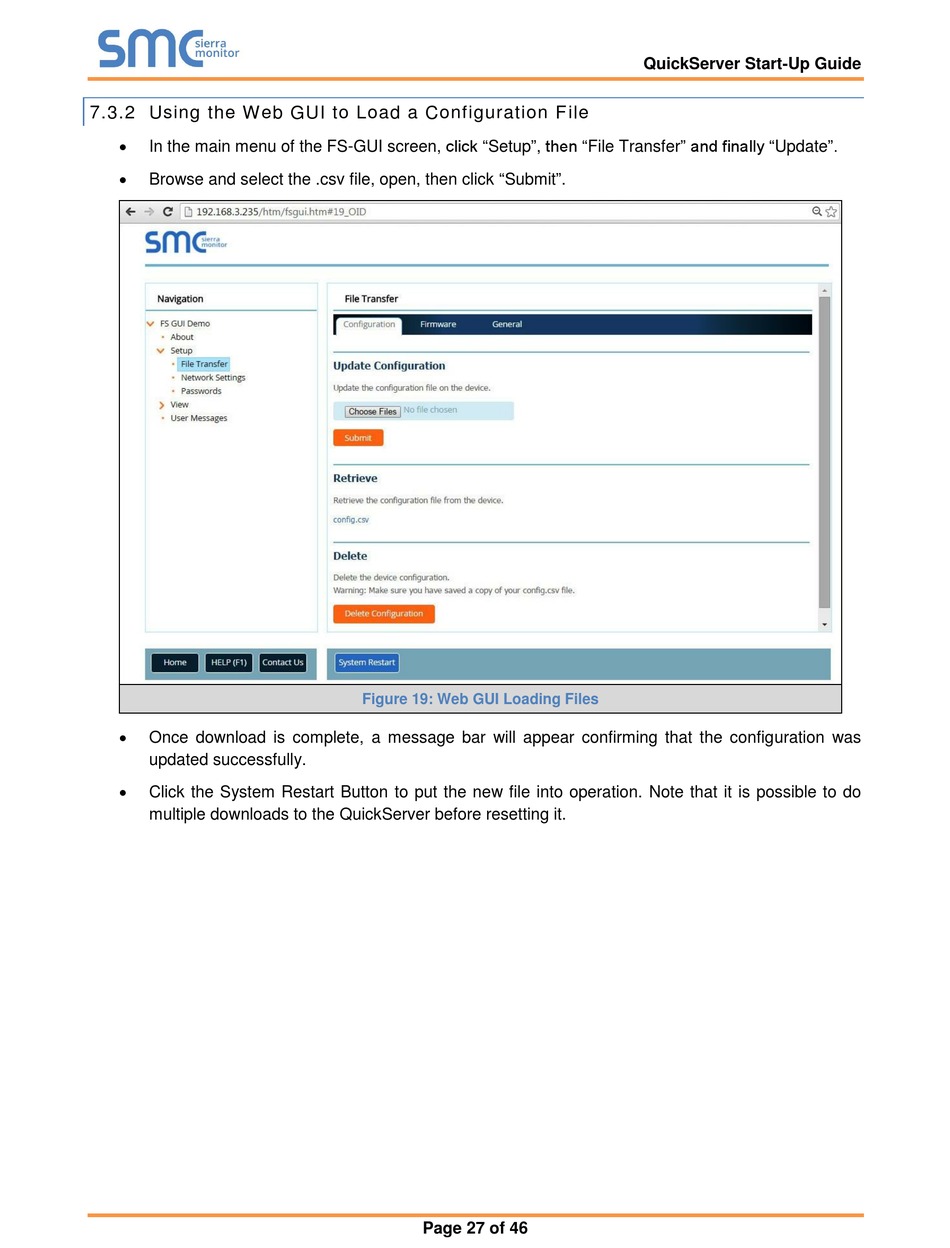

Figure 19: Web GUI Loading Files

Page 27 of 46
QuickServer Start-Up Guide
