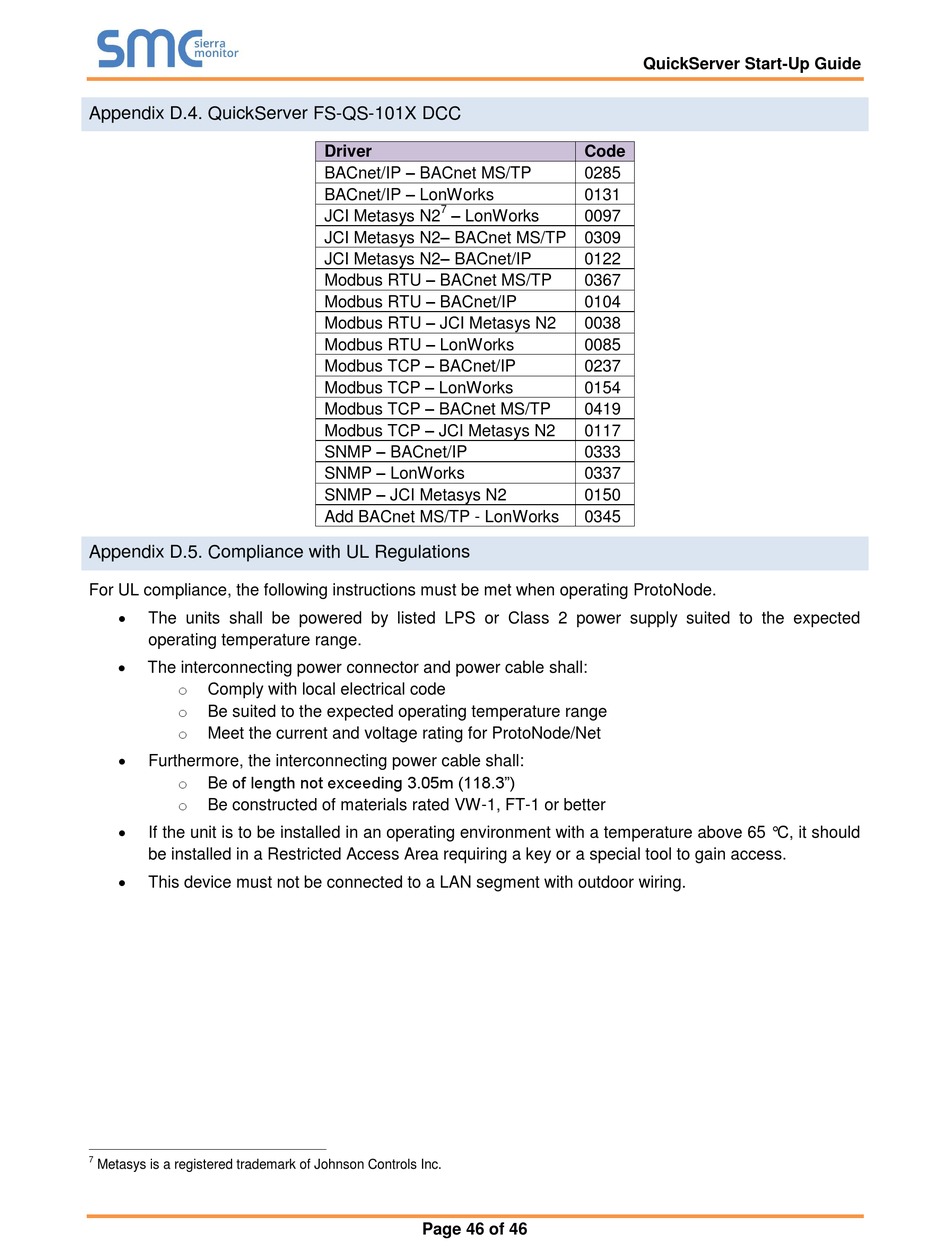

Appendix D.4. QuickServer FS-QS-101X DCC

Appendix D.5. Compliance with UL Regulations

For UL compliance, the following instructions must be met when operating ProtoNode.

The units shall be powered by listed LPS or Class 2 power supply suited to the expected
operating temperature range.

The interconnecting power connector and power cable shall:
o
Comply with local electrical code
o
Be suited to the expected operating temperature range
o
Meet the current and voltage rating for ProtoNode/Net

Furthermore, the interconnecting power cable shall:
Be of length not exceeding 3.05m (118.3")
o
o
Be constructed of materials rated VW-1, FT-1 or better

If the unit is to be installed in an operating environment with a temperature above 65 °C, it should
be installed in a Restricted Access Area requiring a key or a special tool to gain access.

This device must not be connected to a LAN segment with outdoor wiring.
7
Metasys is a registered trademark of Johnson Controls Inc.
Driver
BACnet/IP – BACnet MS/TP
BACnet/IP – LonWorks
7
– LonWorks
JCI Metasys N2
JCI Metasys N2– BACnet MS/TP
JCI Metasys N2– BACnet/IP
Modbus RTU – BACnet MS/TP
Modbus RTU – BACnet/IP
Modbus RTU – JCI Metasys N2
Modbus RTU – LonWorks
Modbus TCP – BACnet/IP
Modbus TCP – LonWorks
Modbus TCP – BACnet MS/TP
Modbus TCP – JCI Metasys N2
SNMP – BACnet/IP
SNMP – LonWorks
SNMP – JCI Metasys N2
Add BACnet MS/TP - LonWorks
Page 46 of 46
QuickServer Start-Up Guide
Code
0285
0131
0097
0309
0122
0367
0104
0038
0085
0237
0154
0419
0117
0333
0337
0150
0345
