Page 22
4.4.2.
TERMINAL CONNECTORS WITH POWER SUPPLY - TYPE : PB / PD / PX
For Intrinsically Safe applications: read chapter 5.
The following terminal connectors are available:
SENSOR SIGNAL
RESISTANCE INPUT
TYPE: T
-
1
2
3

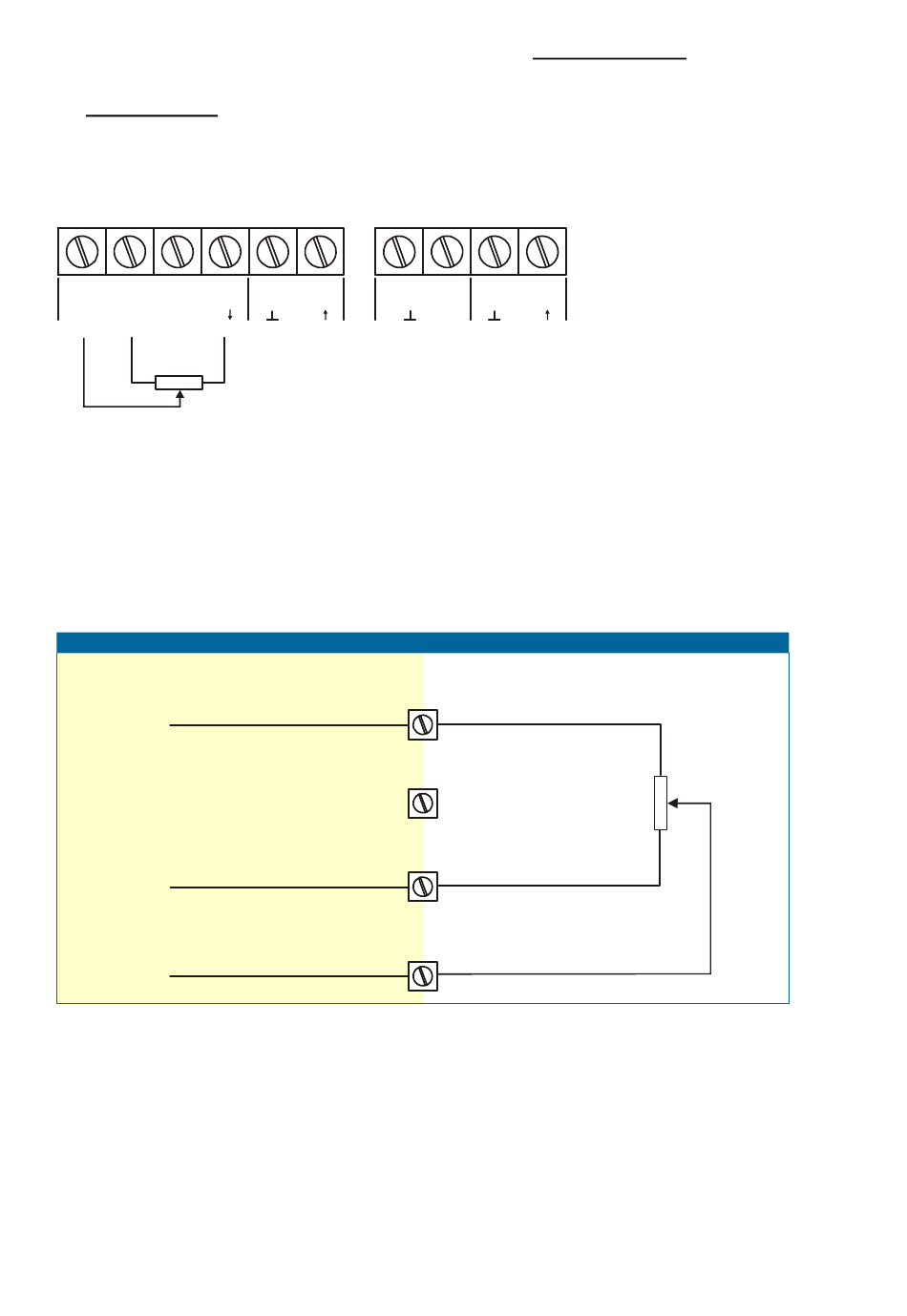

Fig. 9: Overview of terminal connectors F073-T-(PB / PD / PX) and options.
REMARKS: TERMINAL CONNECTORS:
Terminals 1-2; Sensor input – type T:
The F073-T requires a resistance array signal which will be processed once a second. The input is
not isolated.
POWER SUPPLY
UNIT
TYPE: PX
4
5
6
+
+
R1
Resistance array signal
INTERNAL
HF073TEN_v0403_05 Atex_IECEx_CSA_FM
ALARM
POWER SUPPLY
OUTPUT
BACKLIGHT
TYPE: OT
OPTION: ZB
7
8
9
10
R1
+
EXTERNAL
+
04
03
-
02
01
