User Manual
F093-P
TACHOMETER MONITOR
ENGINE SPEED AND RUNNING HOURS
WITH ALARM OUTPUT
Signal input:
pulse, Namur or coil sensor signal
Signal output:
one RPM and running hours alarm
Options:
intrinsically safe
backlight
F-Series - Field mounted indicators for safe and hazardous areas
More info: www.fluidwell.com/fseries
Advertisement
Table of Contents
Related Manuals for Fluidwell F093-P
Summary of Contents for Fluidwell F093-P
- Page 1 ENGINE SPEED AND RUNNING HOURS WITH ALARM OUTPUT Signal input: pulse, Namur or coil sensor signal Signal output: one RPM and running hours alarm Options: intrinsically safe backlight F-Series - Field mounted indicators for safe and hazardous areas More info: www.fluidwell.com/fseries...
-
Page 2: Table Of Contents
Menu 6: Sensor ......................17 5.4.7 Menu 7: Others ......................17 INSTALLATION........................18 Installation / environmental conditions ................18 Handling the F093-P enclosure ..................19 6.2.1 Identification........................19 6.2.2 Opening, assembling and closing the F-Series .............. 20 Mechanical installation....................22 6.3.1... - Page 3 Sensor supply ......................... 42 Terminal connectors hazardous area applications ............42 Configuration examples Intrinsically Safe applications ........... 43 7.4.1 F093-P-(OT)-PC-(PX)-XI-(ZB) Battery powered - Ex ia IIC/IIIC ........43 7.4.2 F093-P-OT-PX-XI-(ZB) - Ex ia IIC/IIIC................44 7.4.3 F093-P-OT-PX-XI-ZB - Ex ia IIC/IIIC ................44 MAINTENANCE........................
-
Page 4: About This Manual
● incorrect functioning of the unit or connected instruments. A note informs you of important information. WARRANTY AND TECHNICAL SUPPORT For warranty and technical support on your Fluidwell products, visit our internet site www.fluidwell.com or contact us at support@fluidwell.com. MODEL REFERENCE Hardware version: 03.03.xx... -
Page 5: Safety
F093-P User Manual SAFETY PERSONAL SAFETY ● Explosion hazard: Never open the unit when explosive atmosphere is present, and the unit is connected to a power supply or consuming device like the internal battery supply. ● Risk of electric shock: Only open the unit if all leads are free of potential electrical energy. -
Page 6: Introduction

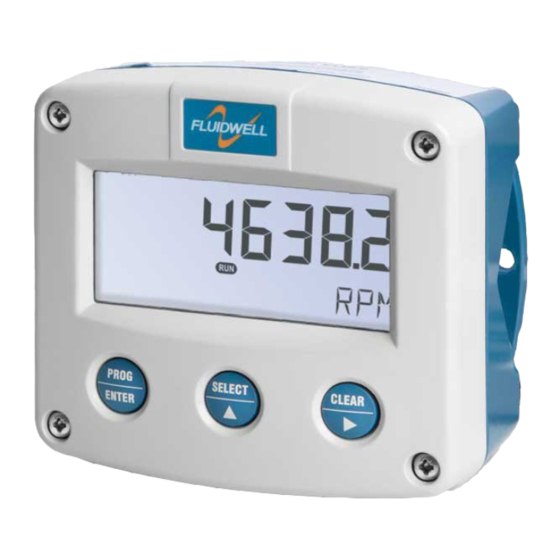

Fig. 1: The F093 This manual describes the daily use, configuration and installation of the F093-P with pulse input from a tachometer and its available options. The following figure shows the F093-P used in a typical application. -
Page 7: Input
● Several options are available for powering the sensor. 3.2.3 OUTPUT ● An external device such as an alarm or a switch can be connected to the F093-P. ● Several driving options are available, depending on the ordered Type. 3.2.4... -
Page 8: Operation
Section 2: Safety [»5] INTRODUCTION This chapter describes the daily use and operation of the F093-P. For this, the F-Series is equipped with a control panel that provides the operator with various functions, information and operating modes. 4.1.1... -
Page 9: Backlight (Type Zb)
F093-P User Manual Normally, the display is updated depending on the refresh rate selected in the configuration settings. By pressing any key, the display switches to refreshing the information 8 times per second. After 30 seconds of key inactivity, the display returns to the configured refresh rate. -
Page 10: Setting Alarm Thresholds
User Manual F093-P SETTING ALARM THRESHOLDS Setting the threshold values might not be available in Operator Mode. This is set in SETUP 4.4: DISPLAY > SET ALARM The F093 can accommodate three alarms: ● Low engine speed alarm ● High engine speed alarm ●... -
Page 11: Configuration
INTRODUCTION This chapter describes how technicians can use configuration settings to configure the F-Series for optimal functionality. Configuration of the F093-P can be done in SETUP mode, using the front keys. CONFIGURING USING SETUP MODE For an overview of Operating modes, see Section 4.1.1: Operating modes [»8]... -
Page 12: Changing Configuration Settings
User Manual F093-P 5.2.3 CHANGING CONFIGURATION SETTINGS A menu item either contains a value (a number with optionally a decimal point and sign, e.g. -123.45) or a selection list (e.g. L – m - USGAL). After a menu item is selected in the SETUP menu, a new value can be programmed by performing the following steps. -
Page 13: Setup Menu Overview
F093-P User Manual SETUP MENU OVERVIEW HOURS DEFAULT CLEAR push clear - enter - cleared push clear DECIMALS 0 - 1 0.01 - 999.99 FREQ MIN DEFAULT 0 - 1 DECIMALS K-FACTOR 0.000010 - 9,999,999 DECIMALS K-FACTOR 0 - 6... -
Page 14: Setup Menu Explanations
255. The lower the number of pulses, the higher the power consumption of ● the F093-P will be (important for battery powered applications). For low frequency applications (below 10 Hz), do not program more ● than 10 pulses, to prevent a very slow update time. For high‑frequency applications (above 1 kHz), enter a value of 100... -
Page 15: Menu 4: Display
F093-P User Manual ALARM RPM ZERO When the sensor signal is zero, the monitoring can be ignored or disabled. Select the desired action when the signal becomes zero: Default: the alarm output is switched, and the alarm is indicated on ●... -
Page 16: Menu 5: Power Management
User Manual F093-P DISPLAY BACKLIGHT ALARM If the F093-P generates an alarm, the backlight can be set to change to red. The following settings are available: OFF: during an alarm the color is white. ● ON: during an alarm the color is red. -
Page 17: Menu 6: Sensor
5.4.6 MENU 6: SENSOR SENSOR SIGNAL Selects the type of input sensor pickup / signal. The F093-P can process several types of input signal. The settings with LP are used to apply a built-in low-pass filter. TACHOMETER SELECTION CHARACTERISTICS TYPE OF SIGNAL... -
Page 18: Installation
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F093-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 19: Handling The F093-P Enclosure
F093-P User Manual HANDLING THE F093-P ENCLOSURE 6.2.1 IDENTIFICATION The F-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model Type XI. Refer to for identification and installation labels Section 7: Intrinsically safe applications [»37]... -
Page 20: Opening, Assembling And Closing The F-Series
User Manual F093-P Fig. 10: Example of F0-Series installation label (Safe Area - Type PM or PF) Serial number and year of production The serial number can be reviewed on the identification label, the installation label, or in . The production SETUP 7.3: OTHERS >... - Page 21 F093-P User Manual Closing / replacing the cover 1. Re-insert all terminals to their original position. 2. Carefully position the front cover onto the back cover, making sure that the gasket falls nicely into the gutter of the back cover.
-
Page 22: Mechanical Installation
User Manual F093-P MECHANICAL INSTALLATION 6.3.1 MECHANICAL DIMENSIONS Aluminum and stainless steel enclosures 75 mm (2.95") 90 mm (3.54") 130 mm (5.12") 112 mm (4.40") 12mm 12mm 30 mm 30 mm 30mm 30mm M16 x 1,5 M16 x 1,5 M20 x 1,5... - Page 23 F093-P User Manual Non-metallic enclosures 75 mm (2.95") 130 mm (5.12") 112 mm (4.40") HK back box: (flat bottom) 75 mm (2.95") 118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12”...
-
Page 24: Mounting The F-Series
User Manual F093-P 6.3.2 MOUNTING THE F-SERIES The enclosure can be installed by itself or with the aid of a mounting plate in the configurations shown below. When the product is installed on a wall or onto a meter, please use components and installation techniques that are suitable for the used materials. -
Page 25: Electrical Installation
● The wire screens shall be terminated at one side to prevent wire loops. Inside of the F093-P, the different common ground terminals are connected to each other. It is advised, as illustrated, to terminate the wire screens in the vicinity of the sensor and to insulate the wire screen with a shrink tube at the F093-P side. -
Page 26: Field Wiring Connections
F093-P Connecting Protective Earth to a non-metallic enclosure When the F093-P is supplied with a non-metal enclosure (e.g. plastic), the field mount enclosure meets the requirements of class 2 (double insulated). Therefore any incoming PE conductor can be terminated with an insulating end cap. -
Page 27: Power Supply
C22.2 No. 61010-1 / UL61010-1 / EN-IEC 61010-1. The F093-P can be powered from an external power supply. For Type PX or PD, an optional internal power supply is also available in the form of a lithium battery (Type PB). When both external and internal power supplies are available, the internal power supply is interrupted and will act as a backup supply. -
Page 28: Terminal Connectors Safe Area Applications - Type Px, Pd
6.5.1 TERMINALS 1-3 (6): TACHOMETER INPUT Three basic types of tachometer signals can be connected to the F093-P: pulse, active pulse or coil. The screen of the signal wire can be connected to the common ground terminal (see Section 6.4.3: Field wiring connections [»26]... - Page 29 Terminals 1 - 2: NPN signal input The F093-P is suitable for use with tachometers with a PNP output signal. Terminal 3 offers 3.2V which has to be switched by the sensor to terminal 2 (SIGNAL). For a reliable pulse detection, the pulse amplitude has to go above 1.2V.
- Page 30 Terminals 1 - 2 and 6: Active signal Reed switch The F093-P is suitable for use with tachometers with a reed switch. To avoid pulse bounce from the switch, it is advised to activate a low-pass filter by selecting REED LP (see SETUP 6.1: SENSOR >...
-
Page 31: Terminals 4-5: Power Supply - Type Px And Pd
TERMINALS 4-5: POWER SUPPLY - TYPE PX AND PD To power the F093-P a 8-30V DC (type PX) or 16-30V DC (type PD) power supply can be applied. Connect the "-" to terminal 4 and the "+" to terminal 5. -
Page 32: Terminals 9-10: Backlight Power Supply - Type Zb
User Manual F093-P 6.5.5 TERMINALS 9-10: BACKLIGHT POWER SUPPLY - TYPE ZB To power the optional backlight, a voltage from 20 to 30 V must be connected to the display. The maximum current will be 30mA. Connect the “-“ to terminal 9 and the “+“ to terminal 10. -
Page 33: Terminal Connectors Safe Area Applications - Type Pf, Pm
Overview of terminal connectors - Type PF or PM 6.6.1 TERMINALS GND-1-2: POWER SUPPLY To power the F093-P with a power supply option of type PF or type PM, connect a suitable power supply to the terminals as indicated in below table. Note: NC is not connected. -
Page 34: Terminals 5-7: Tachometer Input
Terminals 3-4: Mechanical relay output (type OR) 6.6.3 TERMINALS 5-7: TACHOMETER INPUT Three basic types of tachometer signals can be connected to the F093-P: pulse, active pulse or coil. The screen of the signal wire can be connected to the common ground terminal (see Section 6.4.3: Field wiring connections [»26]... - Page 35 Terminals 5 - 6: NPN signal input The F093-P is suitable for use with tachometers with a PNP output signal. For a reliable pulse detection, the pulse amplitude has to go above 1.2 V. Signal setting PNP-LP employs a low-pass...
- Page 36 Terminals 5 - 7: Active signal Reed switch The F093-P is suitable for use with tachometers with a reed switch. To avoid pulse bounce from the switch, it is advised to activate the low-pass filter by selecting REED LP (see SETUP 6.1: SENSOR >...
-
Page 37: Intrinsically Safe Applications
F093-P User Manual INTRINSICALLY SAFE APPLICATIONS IDENTIFICATION The F0-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model Type XI. If Type XI is not indicated your unit is not suitable for Intrinsically Safe applications! -
Page 38: Electrical Installation In Hazardous Areas
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F093-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 39: Electrical Data - Control Drawing
F093-P User Manual 7.2.2 ELECTRICAL DATA - CONTROL DRAWING trol Dr ing F -P-XI Ce t r ific t a ion F0-SERIES – Type -XI T RMINAL CONNE CTORS F0 ERIE c mm on ground Ce tif r ica e number: CSA.08.2059461... -
Page 40: Installations Based On Atex Or Iecex Certificate
User Manual F093-P 7.2.3 INSTALLATIONS BASED ON ATEX OR IECEX CERTIFICATE Installation instructions ● For installation under ATEX directive: this Intrinsically Safe device must be installed in accordance with ATEX directive 2014/34/EU and product certificate KEMA 05ATEX1168 X. ● For installation under IECEx scheme: this Intrinsically Safe device must be installed in accordance with product certificate IECEx KEM 08.0006X. -
Page 41: Electrical Data - Annex 1
F093-P User Manual 7.2.4 ELECTRICAL DATA - ANNEX 1 Annex 1 ( mo el p s eci fic) to prod uct certif c i ates KEMA 0 ATEX1168 X, IECEx 00 6 Model F0..-P-XI Int nal supply for use w... -
Page 42: Power Supply
7.2.5 POWER SUPPLY The F093-P can be powered from an external power supply. For Types PX or PD, an optional internal power supply is also available in the form of an intrinsically safe lithium primary battery (Type PC). When both external and internal power supplies are available, the internal power supply is interrupted and will serve as a backup supply. -
Page 43: Configuration Examples Intrinsically Safe Applications
Sensor supply voltage on Terminal 3: 1.2-3.2V DC. Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F093-P, the battery will be disabled automatically until the power is disconnected FW_F093-P_M_v0501-02_EN Page 43... -
Page 44: F093-P-Ot-Px-Xi-(Zb) - Ex Ia Iic/Iiic
Sensor supply voltage on Terminal 3: 1.2-3.2V DC. Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F093-P, the battery will be disabled automatically until the power is disconnected 7.4.3 F093-P-OT-PX-XI-ZB - EX IA IIC/IIIC Fig. 41:... -
Page 45: Maintenance
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F093-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 46: Battery Replacement
Voltaweg 23, Veghel, the Netherlands - Part. no. / Référence: Primary Lithium Battery - Only replace with Fluidwell I.S. battery pack! Pile primaire au lithium - Remplacer uniquement par une pile Fluidwell à Sécurité Intrinsèque! Fig. 42: Marking battery type PC: Intrinsically Safe FWLiBAT-021 (SPC02) Safe area applications - Type PB ●... -
Page 47: Battery Replacement Procedure
F093-P User Manual 8.3.2 BATTERY REPLACEMENT PROCEDURE Before starting the battery replacement procedure, make sure that the marking on the new battery corresponds with the type of installation, as shown in Section 8.3.1: Safety instructions [»46] When used in Intrinsically Safe applications - Type PC: The hook-and-loop fastener that holds the battery is antistatic and thus fit for Hazardous Area use. -
Page 48: Appendix A - Technical Specification
User Manual F093-P APPENDIX A - TECHNICAL SPECIFICATION GENERAL DISPLAY Type High intensity reflective numeric and alphanumeric LCD, UV-resistant Digits 7 with height 17mm (0.67”) and 11 with height 8mm (0.31”). Various symbols and measuring units. Dimensions 90 x 40 mm (3.5” x 1.6”) - Page 49 F093-P User Manual OPERATING TEMPERATURE Safe area -40°C to +80°C (-40°F to +178°F) Intrinsically safe -40°C to +70°C (-40°F to +158°F) For EPL Da: -40°C to +50°C (-40°F to +122°F) POWER REQUIREMENTS Type PB SAFE AREA ONLY - Standard lithium primary battery. Life up to 5 years.
-
Page 50: Input
User Manual F093-P HAZARDOUS AREA (TYPE XI OR XF) Intrinsically safe ATEX appr. KEMA 05ATEX1168 X IECEx appr. IECEx KEM 08.0006X Type XI II 1 G Ex ia IIC T4 Ga Ex ia IIC T4 Ga II 1 D Ex ia IIIC T 100ºC Da... - Page 51 F093-P User Manual ALARM VALUES Digits 7 digits. Decimals According to settings for RPM Type of alarm Low and/or high engine speed alarm, and/or running hours alarm. Includes configurable delay time and alarm output. FW_F093-P_M_v0501-02_EN Page 51...
-
Page 52: Appendix B - Troubleshooting
APPENDIX B - TROUBLESHOOTING Table 1 lists and describes how to troubleshoot problems that can occur when installing or operating the F093-P. Table 2 lists internal alarm codes and conditions signaled by a blinking ALARM flag on the display ). Press the SELECT key several times to display the 4-digit error code shown in Table 2. -
Page 53: Appendix C - Legal Information
DECLARATIONS OF CONFORMITY EU De cla tio n of Conformi Fluidwell F0‒Series indicators he , February 2022 We, Fluidwell BV, declare under our s e ol respons ibility that the F0 ‒Series indicators are de igne d and will operate conform the following applicable European... - Page 54 User Manual F093-P LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE: DATE: HOURS CLEAR push clear DECIMALS FREQ MIN DECIMALS K-FACTOR DECIMALS K-FACTOR CALCULATION CUT-OFF ALARM ALARM enable RPM ZERO default ALARM LOW ALARM HIGH DELAY ALARM LOW DELAY ALARM HIGH...
- Page 55 F093-P User Manual NOTES FW_F093-P_M_v0501-02_EN Page 55...
