ver6.5

Advertisement

loading

Related Manuals for fantastic furniture Memphis

Summary of Contents for fantastic furniture Memphis

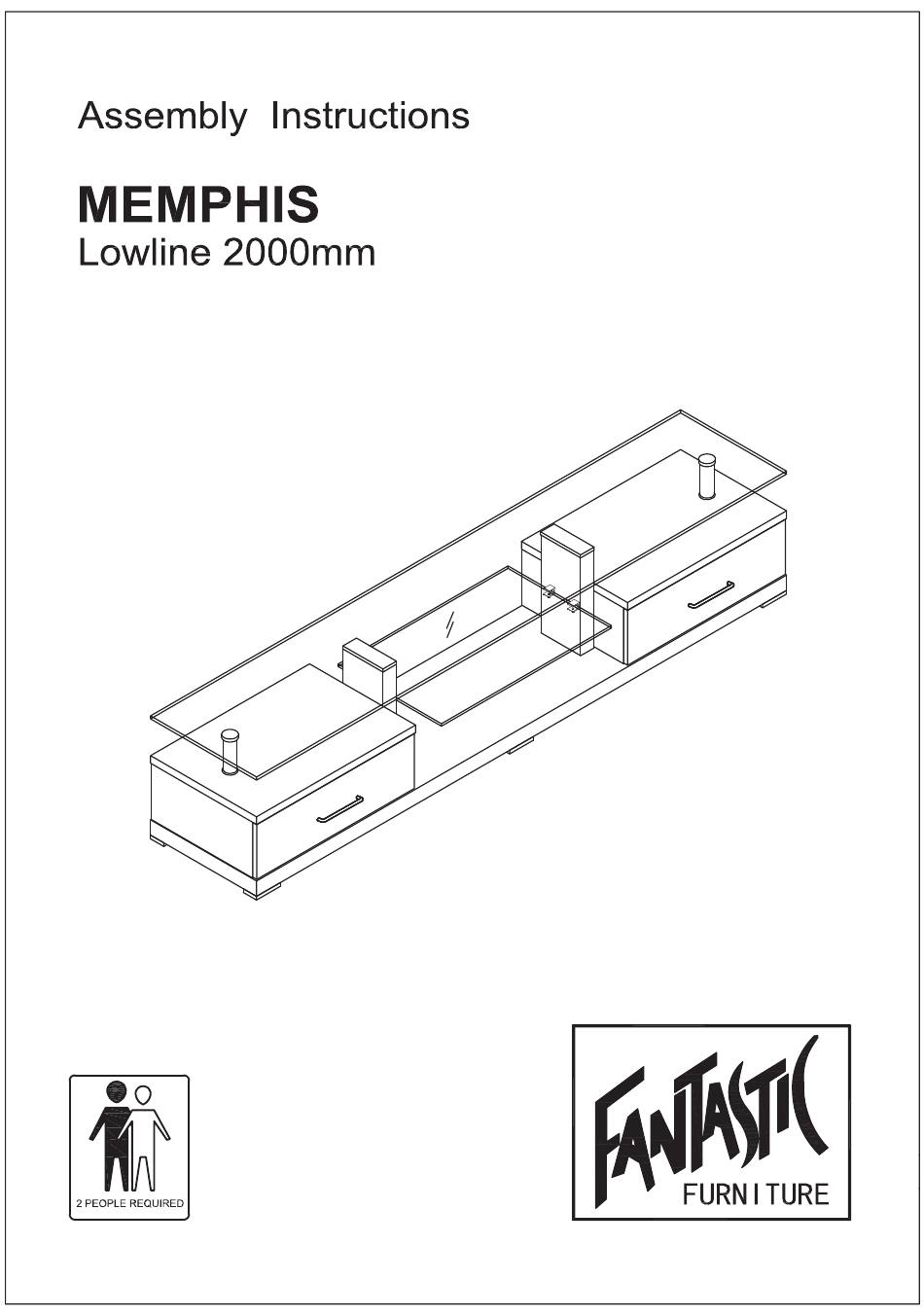

  • Page 1 ver6.5...
  • Page 2 WA RNI NG WA RN NG FAILURE TO FOLLOW THESE BASIC STEPS CAN LEAD TO DAMAGE THAT IS NOT COVERED BY YOUR WARRANTY Lay out all of the components on a soft surface Read Instructions carefully. as if you were preparing to do a jigsaw puzzle. Check no parts are missing.

  • Page 3: What You Need

    What You Need 2x BackPanel (P4) Panel Glass Divider (P6) Drawer Top Panel (P5) Top Glass (tools not provided) (P7) Phillips Head Srewdriver Flat Head Screwdriver Mallet Lower Glass (P8) Side Panels (P3) 2x Drawer Back (P13) Long Base Panel (P1) 4x Drawer Sides (P10)
  • Page 4 12 x Dome Head Screws (P1) (H1) Carefully align the edges of the Wooden Blocks (P2) with the edges of Long Base Panel (P1), then fix with 12 x Dome Head Screws (H1) 8x Small Cam Bolts (P3) (H2) (P3) (H2) Insert 8x Small Cam Bolts (H2) into 4x Side Panels (P3).
  • Page 5 Step 4 (H2) (H3) (H4) (H4) You will need: (H3) (H2) 4 x Small Cam Bolts (H3) (H2) (H4) Mallet (H4) (H3) 8x Big Cam Bolts (P1) (H3) (H2) (H3) 8 x Wooden (H4) Dowels (H4) (H4) (H3) (H2) (H3) (H4) (H4) (H3)
  • Page 6 Step 6 front You will need: 12 x Short Timber Screws (H5) 4 x Drawer Runner Tracks (H6) (H5) (H5) (H5) Attach 4x Drawer Runner Tracks (H6), (H6) (H5) (H5) to Side Panels with 12x Short Timber Screws (H5). (H5) Note: Attach screws loosely.
  • Page 7 Step 9 You will need: (P6) 4x Glass Clamps (H7) (H7) Tighten with phillips head screwdriver Fix 4x Glass Clamps (H7) to both Panel Glass Dividers (P6). Step 10 You will need: 4 x Wooden Dowels (H4) Inset 4x Wooden Dowels (H4) into Base Panel, then push both Panel Glass Dividers onto dowels.
  • Page 8 Step 12 You will need: 2 x Steel Tubes (H9) 2 x Tube Cover (H10) (H9) 2 x Washers (H11) (H10) 2 x Nuts (H12) (H11) (H12) Carefully lift glass into place over Steel Tube (H9) and Tube Cover (H10). Fasten with Washer (H11) and Nut (H12).
  • Page 9 Step 14 (P8) Use stubby flat head screw driver Carefully turn over the unit and insert Lower Glass (P8) into Glass Clamps and tighten. Now Assemble the Drawers Step 15 (H2) (H2) You will need: (H2) 10 x Small Cam Bolts (H2) (P9)
  • Page 10 Step 16 (P11) You will need: (P10) 10 x Small Cam Nuts (H2) (P10) (H2) (P9) (H2) (H2) Insert the 10x Small Cam Nuts (H2) into the Drawer Sides (P10) and Drawer Support (P11). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Push the Drawer Side and Drawer Support into place and tighten the cam nuts.
  • Page 11 Step 20 4 x Bolts (H16) (H16) 2 x Drawer Handles (H17) (H17) Attach Drawer Handle (H17) to drawer with 2x Bolts (H16). Insert drawer into assembled unit. Repeat for both drawers. The job is now complete! In the interest of our environment please dispose of all packaging thoughtfully. Page 11...
  • Page 12 TO ADJUST YOUR DRAWER FRONTS TO MAKE THE GAPS MORE EVEN (OPTIONAL). Remove front screw. Take out drawer. Loosen middle and back screw a little. Replace drawer. Replace screw in adjustable hole as shown (leave it slightly loose), Adjust runner to right position(see step 3a & 3b) tighten front screw first, then tighten other screws.
