Check The Front And Rear Callipers - Benelli TRK 502 Service Station Manual

Check:

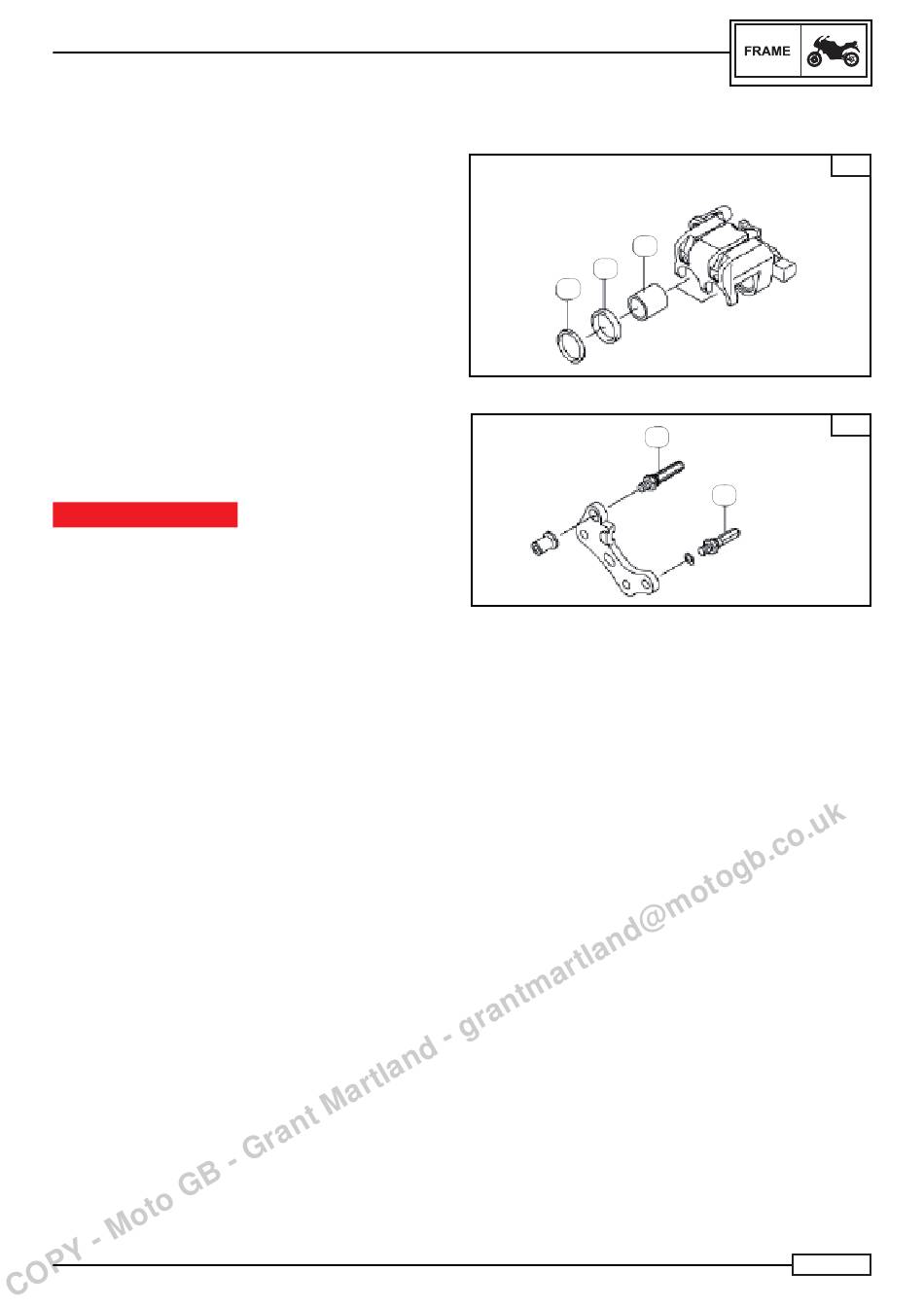

• the pistons (1) of the brake callipers Fig. A
Substitute the brake calliper pistons if there are signs of rust/
scoring/traces of wear.
• The cylinders of the brake callipers.
If there are any lines/signs of wear, replace the whole brake
calliper.
• The bodies of the brake calipers.
If there are any cracks/damage, replace the whole brake calliper.
• Brake fl uid delivery passages (brake calliper body).
In the event of obstruction, clean with a jet of compressed air.
• The seals (2) and (3) Fig. A
If there is any rust/lines/signs of wear, replace the brake calliper
insulation.
• The sliding pins (4) and (5) the rear calliper Fig. B
If there are any lines/signs of wear, replace the whole brake
calliper.
• The rear brake calliper bracket and the couplings on the
front fork.
If there are any rust spots/signs of wear, replace.
IMPORTANT NOTICE
Every time the brake calliper is removed, replace the piston
gaskets.
FRONT AND REAR BRAKES

CHECK THE FRONT AND REAR CALLIPERS
