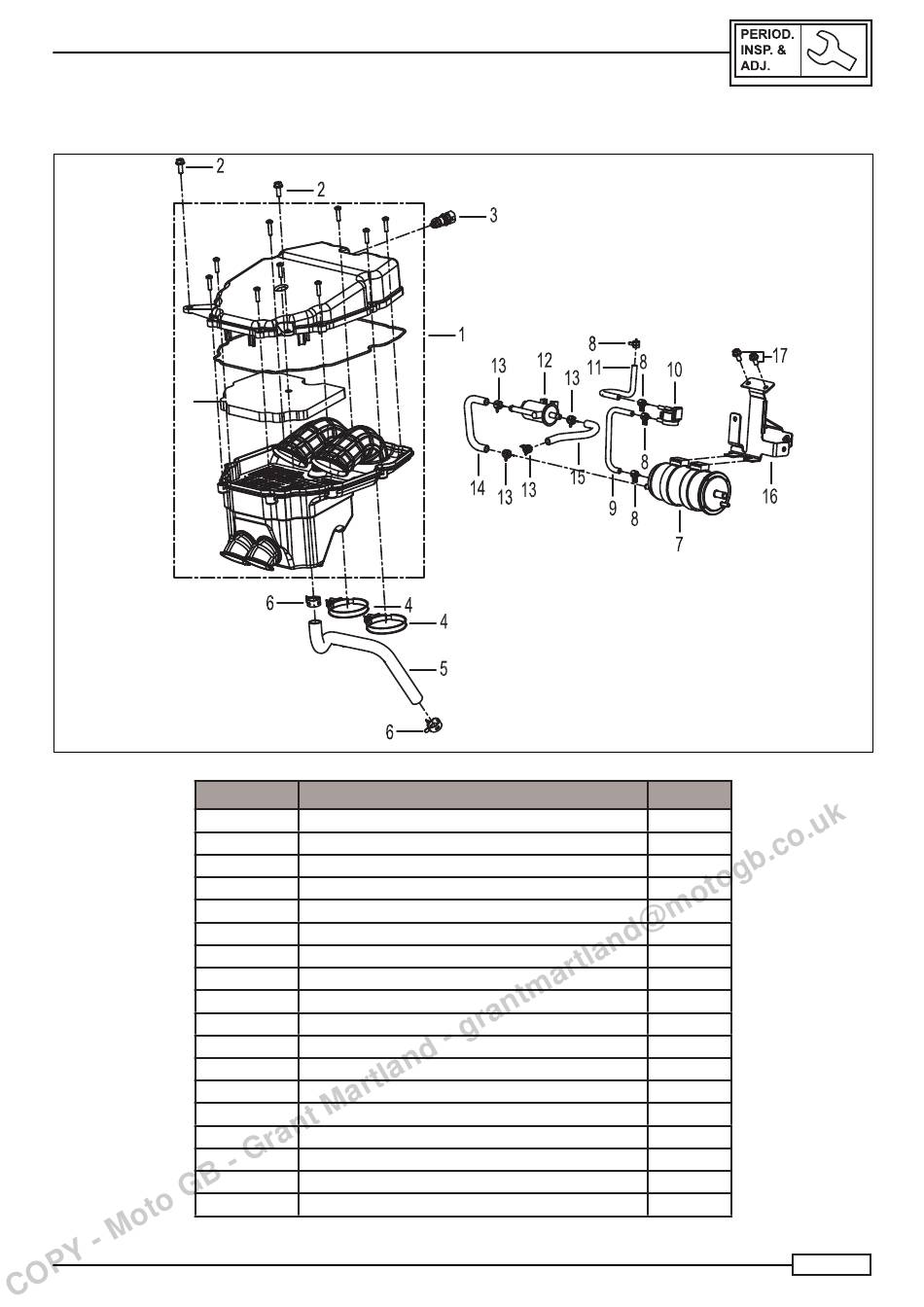

REMOVAL/ASSEMBLY OF AIR BOX

18
Position
1 COMPLETE AIR FILTER BOX
2 SCREW (M6X16)
3 AIR TEMPERATURE SENSOR
4 SCREW BAND
5 SLEEVE
6 Hose holder clip
7 CANISTER FILTER
8 SPRING BAND
9 PIPE
10 CHECK VALVE
11 PIPE
12 VALVE
13 SPRING BAND
14 PIPE
15 PIPE
16 PLATE
17 SCREW (M6X16)
18 AIR FILTER

ENGINE/AIR BOX

Description Quantity
1
2
2
2
1
2
1
4
1
1
1
1
4
1
1
1
2
1
3 - 9
