Pos.
Description
1
SCREW
2
FRONT BRAKE DISC
3
LEFT SHIM
4
BEARING
5
FRONT WHEEL RIM (GREY)
6
FRONT WHEEL AXLE
7
VALVE
8
SHIM
9
INTERNAL SHIM
10
OIL SEAL
11
FRONT WHEEL ABS SENSOR
12
SCREW
13
FRONT TIRE
4 - 6

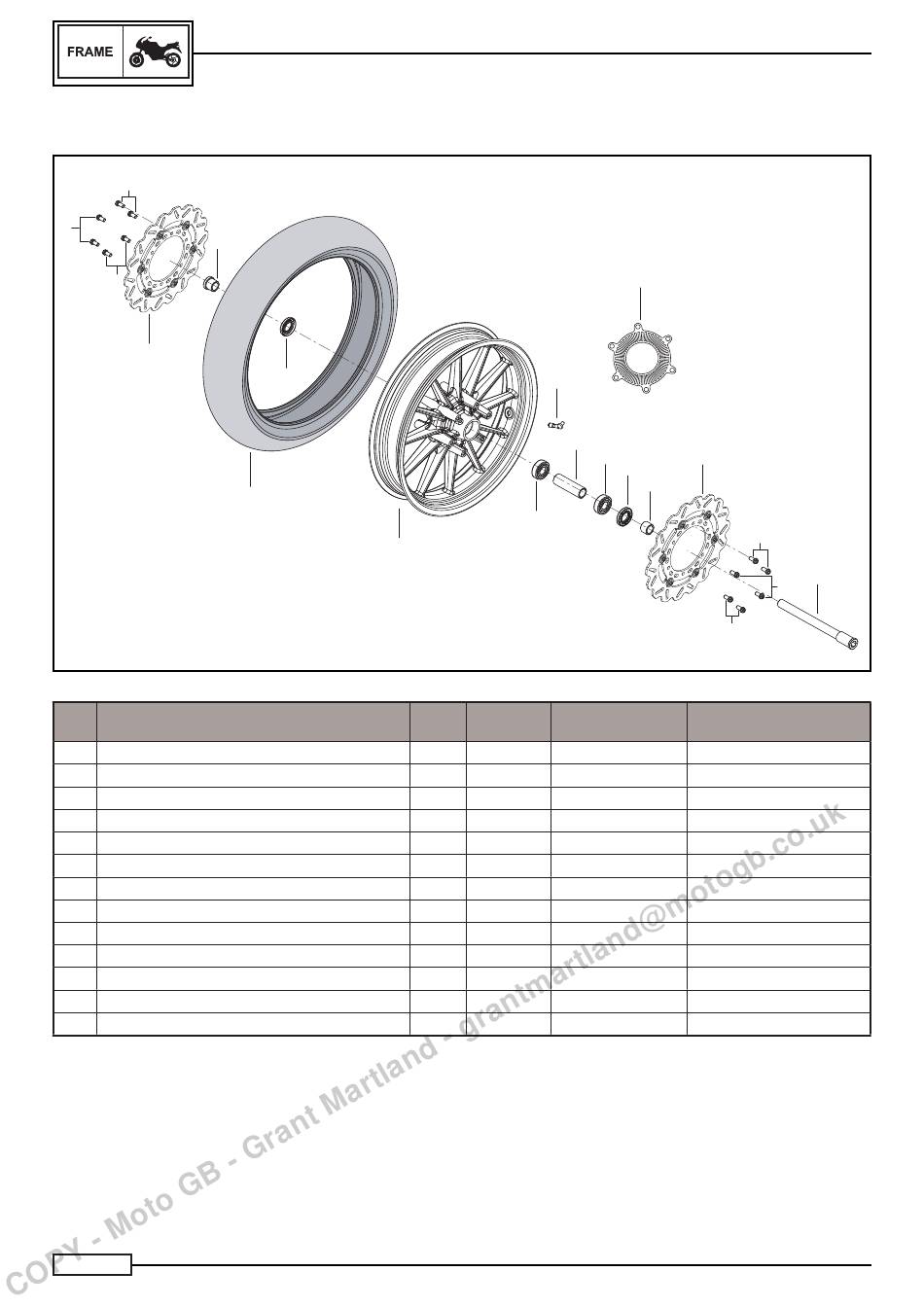

FRONT WHEEL AND BRAKE DISCS
REMOVAL/INSTALLATION OF BRAKE DISCS
10
13
5
7
9
4
4
CONTENTS
Sq.
SYMBOLS
DESCRIPTION
11
2
10
8
12
12
12
REMARKS
6
