GETTING STARTED

Charging the Battery Pack

1. Set up the charging train (Figure 2) and completely charge the battery pack(s) before operating the pump.
2. Prepare charging cradle(s).
a. Single cradle: Insert connector on Single Cradle Power Supply Cat. No. 220-600 into power port
on side of Standard Charging Cradle Cat. No. 220-800 or Charging e-Cradle Cat. No 220-900.
Insert wall cube into a 100 or 240-volt wall outlet.
b. Up to five cradles: Press together the connector on the side of the first cradle with the connector
on the side of the next cradle. Repeat the connection to chain up to five Standard Charging
Cradles. Insert the connector of Multi-Cradle Power Supply Cat. No. 220-700 into the power port on
the side of the last cradle in the chain. Insert the wall cube into a 100 to 240-volt wall outlet.
3. Align the contacts on the bottom edge of the pump with the contacts inside the cradle and insert the pump in
the cradle. Repeat for each additional pump/cradle.
4. Charge the battery completely (approximately 3 hours). The left LED on the cradle will indicate charging
status (see Reading Charge Status on Cradle LED).
Charge status
skcinc.com
Pump
Charging cradle

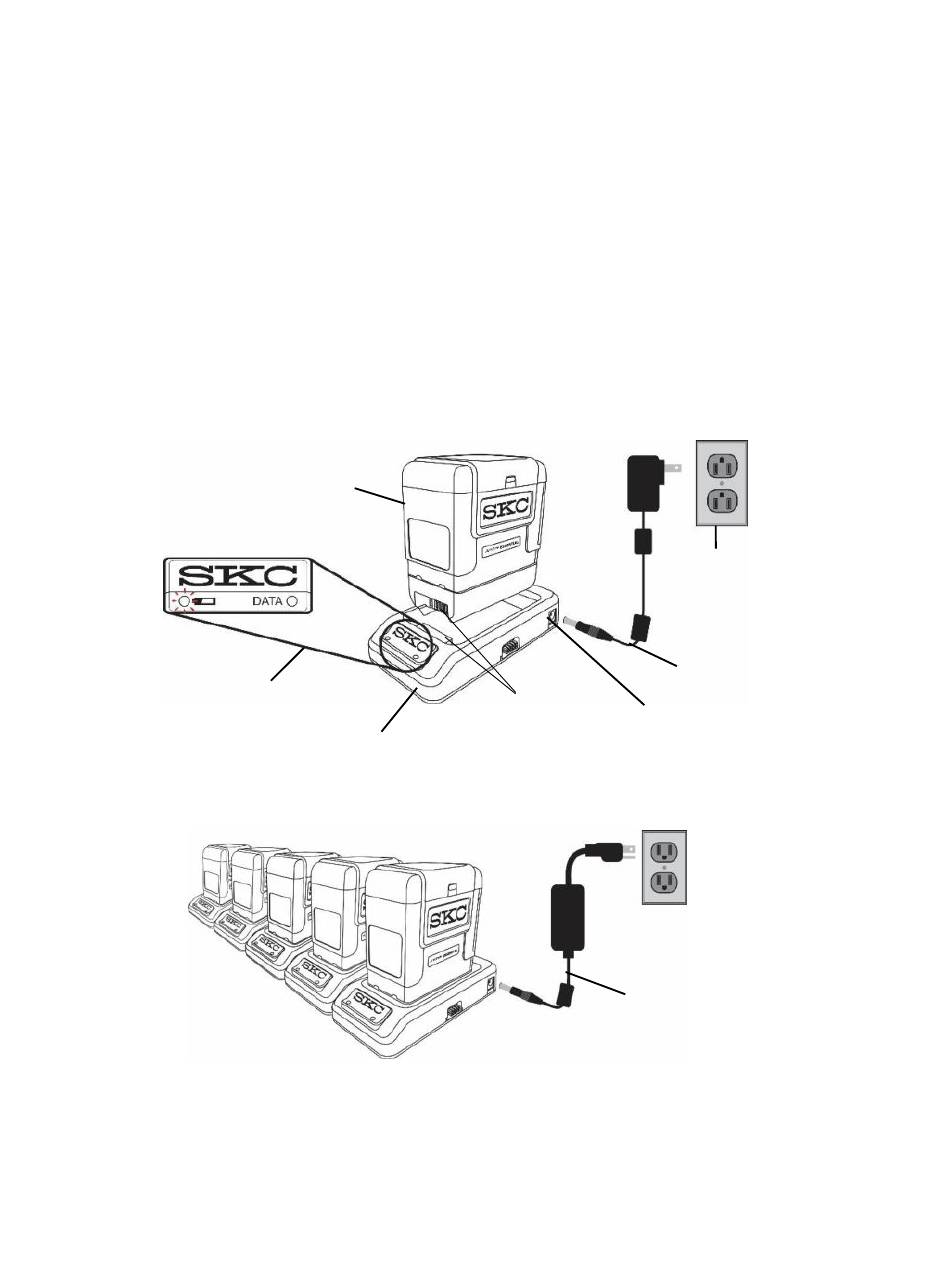

Figure 2. Charging Train, Single and Multiple Cradles
Form 37165 Rev 200217
Charging contacts
Power port
Multi-cradle power supply
100-240 V
Wall outlet
Single cradle power supply
