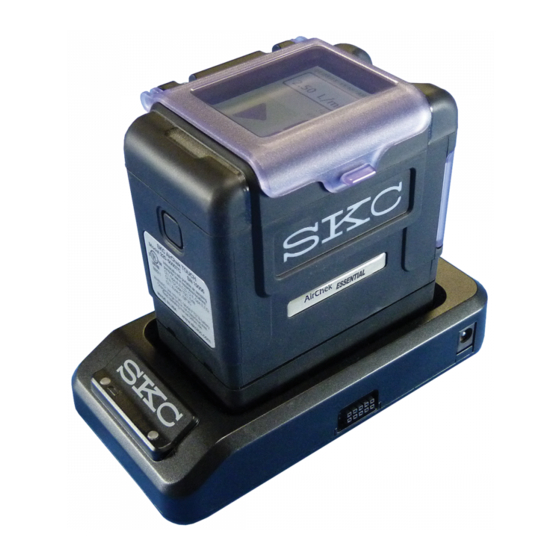

AirChek ESSENTIAL Sample Pump
Cat. No. 220-3000
Operating Instructions
On/Off button
Belt clip on back
(not shown)
Charging contacts
Front and side view
INTRODUCTION
Checking Pump/Kit Contents
Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing
items, contact SKC at 800-725-8472 (U.S. only) or 724-941-9701.
If you ordered Cat. No.
Your package should contain
220-3000
Pump with lithium-ion (Li-Ion) battery pack and screwdriver set
220-3000-S
Pump with Li-Ion battery pack, screwdriver set, Standard Charging Cradle, power supply with cord,
3 feet (0.9 meter) of Tygon tubing, and collar clip cable with tie
220-3000-K
Pump with Li-Ion battery pack, screwdriver set, Standard Charging Cradle, power supply with cord,
and filter cassette holder, in a soft-sided nylon carry case
220-3000-KD
Pump with Li-Ion battery pack, screwdriver set, Standard Charging Cradle, power supply with cord,
filter cassette holder, All-in-One adjustable tube holder, and Type A protective tube cover, in a soft-
sided nylon carry case
220-3000-K3D
3-pack High/Low Flow Pump Kit includes 3 pumps with Li-Ion battery packs, screwdriver set,
3 Standard Charging Cradles, power supply with cord, and 3 each: filter cassette holders,
All-in-One adjustable tube holders, and Type A protective tube covers, in a Pelican case
220-3000-K5
5-pack High Flow Pump Kit includes 5 pumps with Li-Ion battery packs, screwdriver set, 5 Standard
Charging Cradles, power supply with cord, and 5 filter cassette holders, in a Pelican case 100-240 V
220-3000-K5D
5-pack High/Low Flow Pump Kit includes 5 pumps with Li-Ion battery packs, screwdriver set,
5 Standard Charging Cradles, power supply with cord, and 5 each: filter cassette holders, All-in-One
adjustable tube holders, and Type A protective tube covers, in a Pelican case
skcinc.com
Protective screen cover
Battery pack

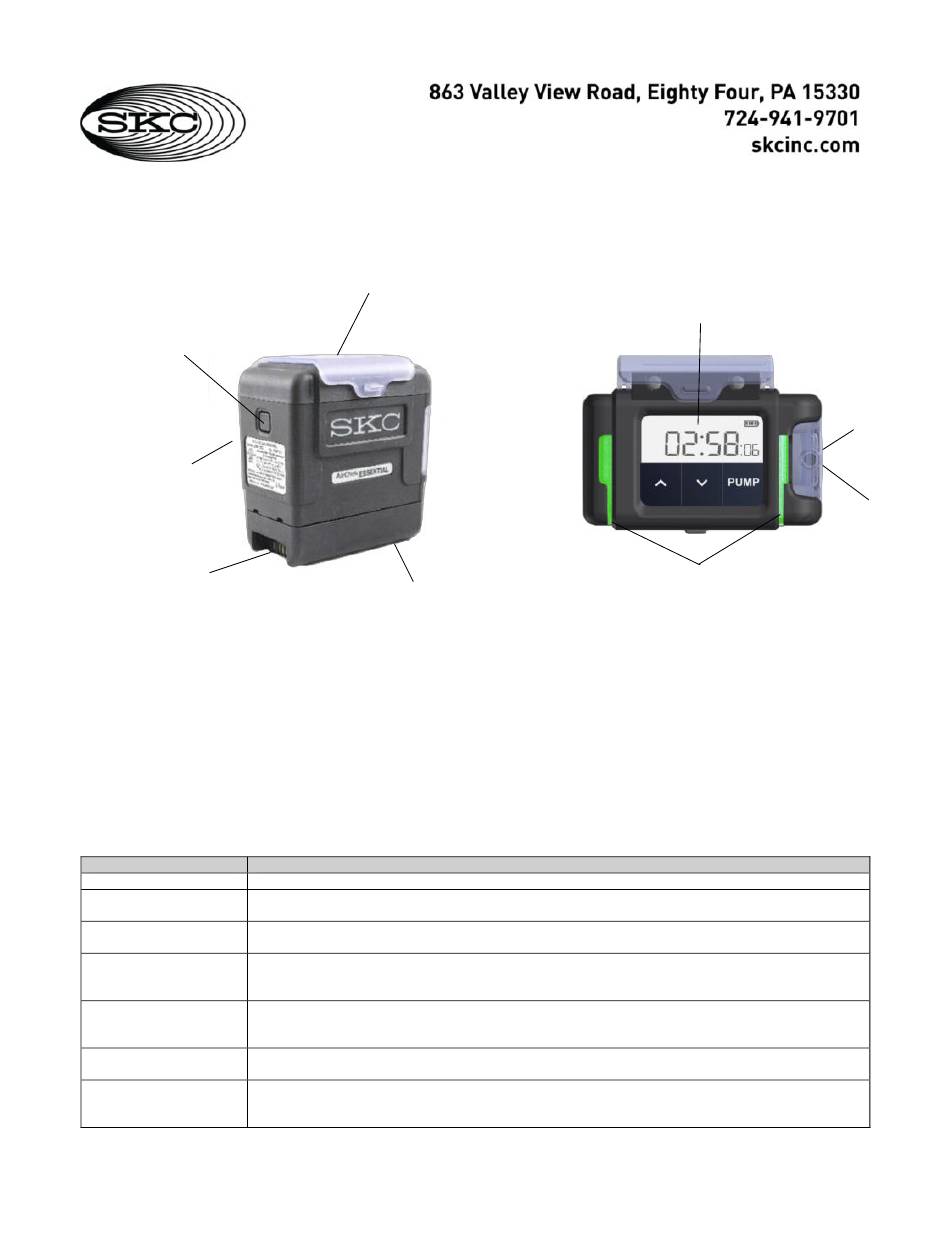

Figure 1. AirChek Essential Parts Overview
Form 37165 Rev 200217
Screen with 3-segment touch keypad
Pump status LED indicators
Top view
Inlet
housing/filter
Pump
inlet
100-240 V
100-240 V
100-240 V
100-240 V
100-240 V
Page 1
Advertisement
Table of Contents
Related Manuals for SKC AirChek ESSENTIAL
Summary of Contents for SKC AirChek ESSENTIAL
- Page 1 Checking Pump/Kit Contents Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact SKC at 800-725-8472 (U.S. only) or 724-941-9701. If you ordered Cat. No. Your package should contain...
-
Page 2: Getting Started
GETTING STARTED Charging the Battery Pack Set up the charging train (Figure 2) and completely charge the battery pack(s) before operating the pump. Prepare charging cradle(s). Single cradle: Insert connector on Single Cradle Power Supply Cat. No. 220-600 into power port on side of Standard Charging Cradle Cat. - Page 3 CAUTION: The battery used in this device may present a risk of fire or explosion when heated above 212 F (100 C) or incinerated. Replace battery with SKC Battery Pack model P75718 only. Use of another battery may present a risk of fire or explosion.
-
Page 4: Using The Touch Keypad
Determining Battery Charge Status The battery status icon at the top right of the pump display screen has four bars that decrease in number as battery charge is depleted. Use the table below to interpret the battery status. Icon Displayed Battery Charge Remaining Full battery charge, approximately 75 to 100% Four bars... - Page 5 Relative Flow—A number between 1 and 99 that is relative to a flow rate and changes as flow is adjusted: 1 corresponds to the minimum and 99 to the maximum flow at which the pump can be set. Relative flow is different for each pump. In most cases, 10 ± 5 will correspond to 1 L/min and 80 ± 5 will correspond to 5 L/min.
-
Page 6: Operation
OPERATION Setting/Calibrating Flow Rate from 1 to 5 L/min • Allow pump to equilibrate after moving it from one temperature extreme to another. • Charge pump battery completely before calibration and sampling. • To achieve the best results, run the pump for 10 to 15 minutes before calibration. Turn on the pump using the on/off button. - Page 7 Setting/Calibrating Flow Rate from 5 to 500 ml/min • Allow pump to equilibrate after moving it from one temperature extreme to another. • Charge pump battery completely before calibration and sampling. • Single-tube sampling requires All-in-One adjustable tube holder; see All-in-One operating instructions for details on operation.
- Page 8 Sorbent tube All-in-One Tubing Flow adjust screw Tubing Suction port Pump inlet Pump chek-mate calibrator Figure 4. Calibration Train (5 to 500 ml/min) for Single Tube Dual adjustable low flow holder Sorbent tube Tubing Flow adjust screw Tubing Suction port Pump inlet chek-mate calibrator Pump...
- Page 9 Calibrate Pump Flow Rate with the All-in-One (single tube) Using a small flat-head screwdriver, turn the flow adjust screw on the port clockwise to decrease flow or counterclockwise to increase flow until the method-specified flow rate is indicated on the calibrator. Once flow is calibrated for the tube, it is recommended practice to recheck the flow rate before removing the tube.
-
Page 10: Maintenance
Options/Modes during Sampling Screen Lock—Prevents the pump from being stopped by an accidental touch during sampling. To lock the screen, press the pump on/off button while the pump is running. The screen locked indicator will be displayed on the screen and the screen will dim (right). To unlock the screen, press the pump on/off button again. -
Page 11: Troubleshooting
(see Replacing the Battery Pack). If these problems persist, contact SKC. Pump Service Pumps under warranty should be sent to SKC Inc. for servicing. See Limited Warranty and Return Policy. User may replace external components such as the inlet filter, battery, screen protector, and/or belt clip. -
Page 12: Accessories/Replacement Parts
*Li-Ion Battery Testing and Shipment Rechargeable lithium-ion (Li-Ion) batteries for use with SKC sample pumps have been tested in accordance with the UN Manual and are proven to meet requirements of each test in the UN Manual of Tests and Criteria, Part III, subsection 38.3. The batteries are rated below 100 watt-hours (Wh). - Page 13 4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm) Weight 19.4 oz • Intrinsic safety (SKC Cat. No. 220-3000 operated with SKC Battery Pack P75718) Certifications Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III, T4; Class I, Zone 0, AExia IIC T4 Ga;...
