SKC Pocket Pump TOUCH Operating Instructions Manual

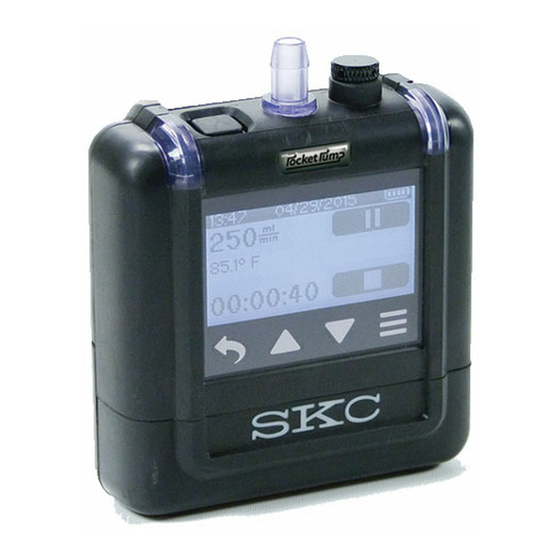

Sample pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Power On/Off
(manual lock/
unlock) button
Status LEDs
Touch screen/
Display
Battery
pack

Table of Contents

Introduction .......................................................................................................... 2
Checking Pump Kit/Contents
Quick Guide ......................................................................................................... 2
Getting Started ..................................................................................................... 3
(Clock Menu: Date/Time, Units Menu: Display Units, Screen Menu: Dim/Security)
To set up a single sorbent tube train and calibrate - Constant Flow Mode
To set up a multiple sorbent tube train and calibrate - Constant Flow Mode
To set up a multiple sorbent tube train and calibrate - Constant Pressure Mode
To calibrate pump fl ow rate prior to bag sampling - Constant Flow Mode
To set up and run a manual sample
Using Pocket Pump TOUCH with DataTrac Pro for Pocket Pump TOUCH Software
863 Valley View Road, Eighty Four, PA 15330 USA • Tel: 724-941-9701 • www.skcinc.com
Exhaust (cap installed)
Inlet

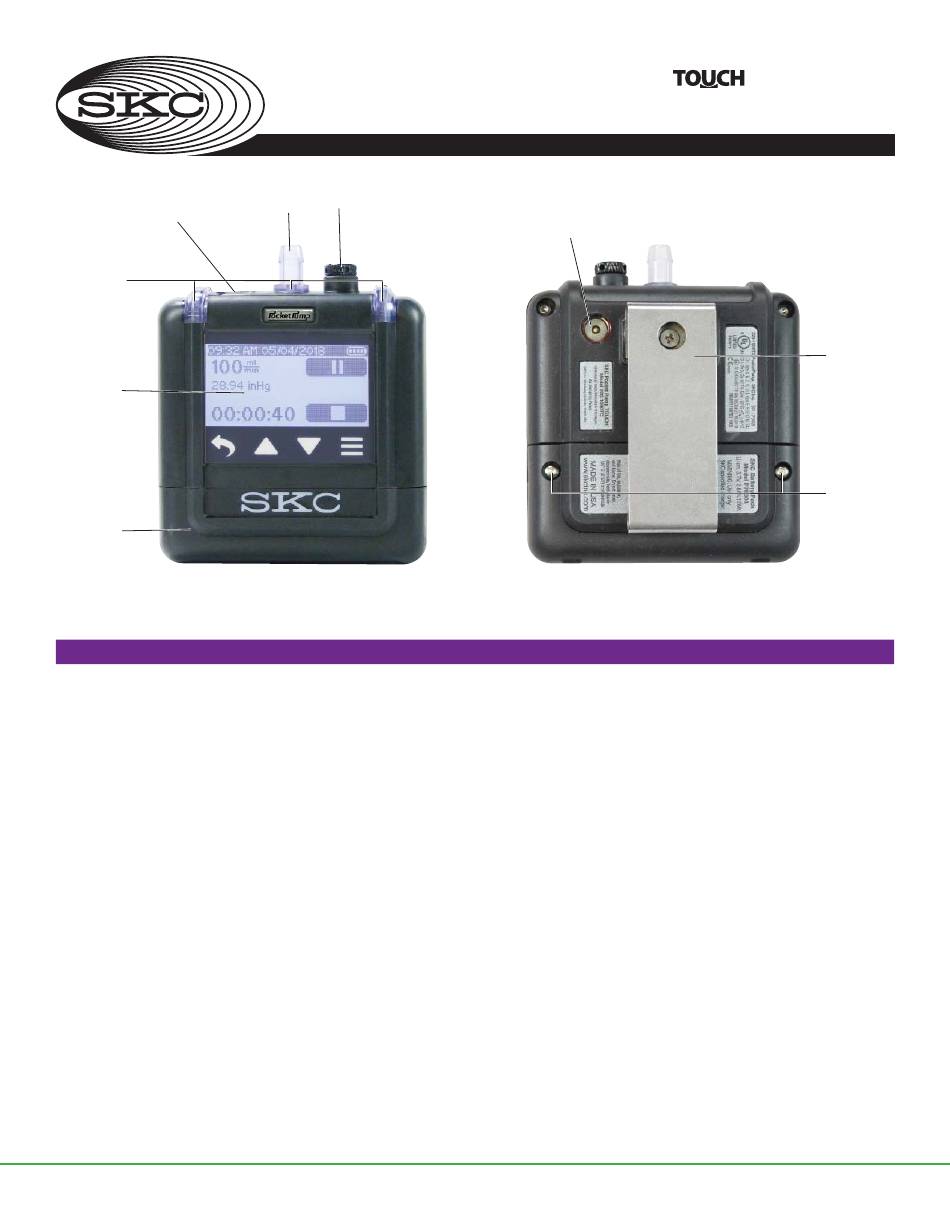

Figure 1. Pocket Pump TOUCH Physical Feature Overview
www.skcinc.com
Pocket Pump
®
Magnetic charging
contact/LED
Maintenance .............................................................................................. 24
Troubleshooting ....................................................................................... 24
Accessories/Replacement Part Ordering ............................................... 25
SKC Limited Warranty and Return Policy .............................................. 25
Appendix: Performance Profi le ............................................................... 26
Sample Pump
Cat. No. 220-1000 Series
Operating Instructions
Belt clip
Battery
screws
Form 40017 Rev 1906
Page 1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pocket Pump TOUCH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SKC Pocket Pump TOUCH

Summary of Contents for SKC Pocket Pump TOUCH

  • Page 1: Table Of Contents

    To set up and run a timed sample To run a sample preset Flow Fault Mode and Display Viewing History Using Pocket Pump TOUCH with DataTrac Pro for Pocket Pump TOUCH Software Form 40017 Rev 1906 www.skcinc.com Page 1 of 26...

  • Page 2: Introduction

    Introduction Checking Pump/Kit Contents Use the following table to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact SKC at 800-752-8472 (U.S. only) or 724-941-9701. If you ordered Cat. No. Your Package Should Contain 220-1000TC Pocket Pump TOUCH only* with Li-Ion battery and screwdriver, requires charger;...

  • Page 3: Getting Started

    240-volt wall outlet. b. PC/laptop (not supplied by SKC) with a full charge or plugged into a wall outlet. Note: USB ports and PC/laptop sett ings vary. If using this charging option, verify that your pump is charging by checking that more bars have appeared on the pump batt ery status icon midway through charging.

  • Page 4: Battery Charging Notes And Cautions

    • The battery used in this device may present a risk of fi re or explosion when heated above 212 F (100 C) or incinerated. Replace battery with SKC Battery Pack Cat. No. P76303 only. Use of another battery may present a risk of fi re or explosion.

  • Page 5: Determining Battery Charge Status

    Use a fi ngertip to gently touch screen butt ons in the active zones indicated below. Navigating Menus and Screens Pocket Pump TOUCH operates through a series of menus and screens. When the pump is powered on, the Flow screen displays, which allows you fast access to calibration and sampling. For more details, start at To set pump fl...
  • Page 6 Menu/Screen Overview Main Menu History Menu • Firmware version number Flow Menu • List of sample runs/summaries • Lifetime run time and volume • Set Flow • Pump serial number • Calibrate (constant fl ow mode) Clock Menu • Pump manufacture date •...

  • Page 7: Determining Pump Status

    Determining Pump Status Pocket Pump TOUCH features status LEDs on the top corners of the pump, beneath the pump inlet, and behind the magnetic charging contact on the back of the pump. These indicate pump status at a quick glance.

  • Page 8: Modifying Device Settings

    Modifying Device Settings Note about default sett ings: Pocket Pump TOUCH is shipped with the following default sett ings that may be changed by the user from the Device sub-menus. Dim: On, Auto Lock: Off , Secure Lock: Off , Temperature Units: F, Atmospheric Pressure Units: inHg, Time Format: 12 Hour, and Date...
  • Page 9 To change date and date display From Main Menu: Touch Device > Touch Clock > Touch Date Month digits will fl ash. Touch up/down arrow butt ons to increment/decrement month. Touch right arrow to advance to day (will fl ash) and up/down arrow butt ons to increment/decrement day.
  • Page 10 Units Menu To change temperature units From Main Menu: Touch Device > Touch Units > Touch Temp °F and °C butt ons display. Touch desired butt on to select and return to Units Menu. To change atmospheric pressure display units From Main Menu: Touch Device >...
  • Page 11 Screen Menu To set Dim to on or off From Main Menu: Touch Device > Touch Screen > Touch Touch desired butt on to select and return to Screen Menu. If Dim is set to On, the user can dim and lock the screen of a running pump by pressing the Power On/Off...
  • Page 12 To set Secure Lock to on or off and set passcode From Main Menu: Touch Device > Touch Screen > Touch Secure Lock Secure Lock helps to prevent tampering during a sample run. Touch desired butt on. If Secure Lock was set previously to On and you select Off...

  • Page 13: Operation (Sample Menu: Set Flow, Calibrate, And Sample)

    Operation - Set Flow, Calibrate, and Sample Sample Menu To set pump fl ow rate From Main Menu: Touch Sample > Touch Flow > Touch fl ow display Touch left/right arrow butt ons to set gross fl ow sett ing. Touch up/down arrow butt ons to fi...

  • Page 14: Www.skcinc.com

    calibration adjustment value will display beside the calibration icon. Note: The fl ow rate displayed on the calibrator will change as a result of this adjustment. Touch check mark to accept the calibration adjustment value and return to the Flow Menu. The fl...

  • Page 15: Www.skcinc.com

    Touch Run butt on. It is good practice to run the pump for 5 minutes before calibrating the fl ow rate. Use a small fl at-head screwdriver to turn the brass fl ow adjust screw beneath the port of the tube to be calibrated counterclockwise to increase fl...

  • Page 16: Www.skcinc.com

    Set pressure to value obtained in Step 1.g as follows: Pump inlet 224 Series Multiple-tube Low Flow Holder Sorbent tubes Tubing Calibrator outlet ent tubes Tubing Calibrator outlet From Sample Menu: Touch Advanced > Touch pressure display Figure 5. Multiple-tube Calibration - Constant Pressure - Train Overview a.
  • Page 17 To calibrate pump fl ow rate prior to bag sampling – Constant Flow Mode Pump inlet Tubing Calibrator outlet * Charge pump battery completely before calibration and sampling. * Use of an unapproved battery and/or charging cable could damage the pump and will void any warranty.

  • Page 18: To Sample Using A Single Sorbent Tube, Multiple Sorbent Tubes, Or Sample Bag

    To sample using a single sorbent tube, multiple sorbent tubes, or sample bag * Charge pump battery completely before sampling. * Use of an unapproved battery and/or charging cable could damage the pump and will void any warranty. * If using sample tubes as media, calibrate/verify pump fl ow rate before and after each sampling operation using the tube holder and pump used for sampling.

  • Page 19: Flow Fault Mode And Display

    Options on pump screen during a sample run: Touch Stop to stop sampling, reset accumulated data display, and view Sample Summary. Touch Pause to pause sampling and retain accumulated data display. When touched, pause changes to Run button Touch Run button to resume sampling and data accumulation. Dim (set to On) dims a screen that has been locked by pressing the Power On/Off button on a running pump or through Auto Lock as soon as the pump starts running.

  • Page 20: To Set Up And Run A Timed Sample

    When the required sampling period is completed (or the bag is properly infl ated - see bag operating instructions), touch Stop butt on to stop sampling, which displays a Sample Summary and automatically resets the accumulated data. Note: If pump is shut off or goes to sleep after a sample is completed and is powered on again, the initial display will be the Sample Summary of the previous sample run.

  • Page 21: To Run A Sample Preset

    Presets are created by the user in DataTrac Pro for Pocket Pump TOUCH Software and uploaded to the pump (see DataTrac Pro for Pocket Pump TOUCH User Manual for details on creating presets). The start date for a preset with delayed start can be changed on the pump by touching the date on the Preset screen.

  • Page 22: Flow Fault Mode And Display

    The pump will display a screen showing a summary of the preset and a Cancel (X) butt on. Touch the X if you wish to cancel the activated preset. To run a preset sample without a set delayed start, touch the Run butt on See Options on pump screen during a sample run on page 19.

  • Page 23: Viewing History

    Browse URL provided in adapter instructions, and download and install the DataTrac Pro Installer on laptop/PC. (A fl ash drive option is available for users without an Internet connection.) Upon successful installation, DataTrac Pro will launch automatically and att empt to fi nd any active Pocket Pump TOUCH pumps within the area.

  • Page 24: Maintenance

    User may replace external components such as the inlet fi lter, battery, screen protector, and/or belt clip. Service must be performed by SKC to maintain performance and intrinsic safety rating. Warranty is void if pumping compartment is opened by user.

  • Page 25: Accessories/Replacement Part Ordering

    * Li-Ion Battery Testing and Shipment Rechargeable lithium-ion batteries for use with SKC sample pumps have been tested in accordance with the UN Manual and are proven to meet requirements of each test in the UN Manual of Tests and Criteria, Part III, subsection 38.3. The batteries are rated below 100 watt-hours (Wh).

  • Page 26: Appendix: Performance Profi Le

    Certifi cations/Markings • Intrinsic safety (SKC Cat. No. 220-1000TC operated with SKC Battery Pack Cat. No. P76303) Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III, T4; Class I, Zone 0, Group IIC T4;...
