Getting Started
1) Fitting the Battery
The Flite4 pump is supplied without a
battery fitted.
To fit the P901402 battery, unfasten the
6 casing screws (3 each side of the case)
using the supplied Pozidriv size PZ1
screwdriver. Lift off the blue casing cover.

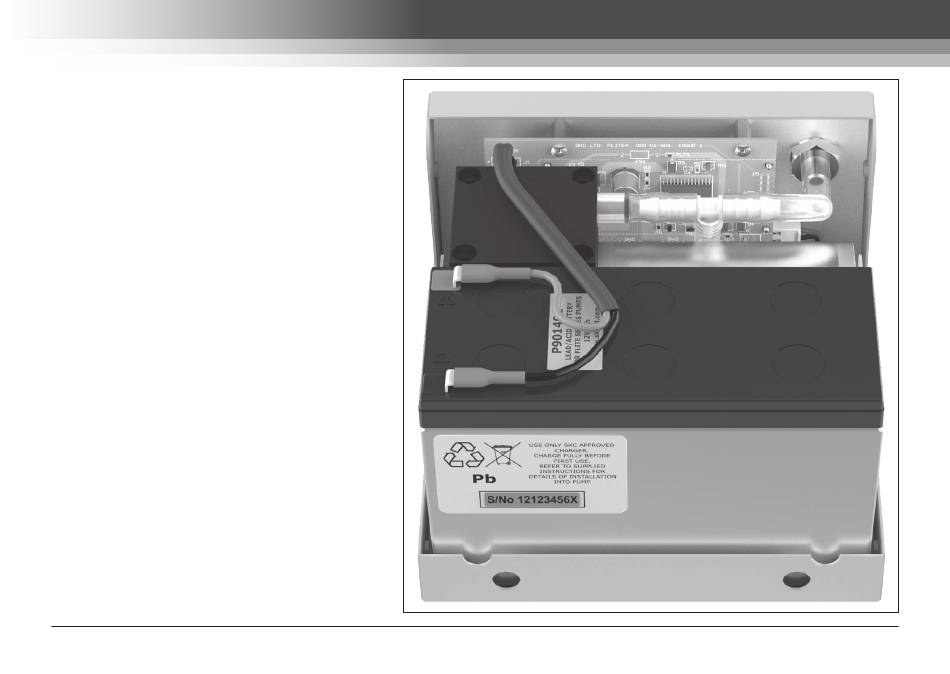

Remove the two protective covers from the
battery terminals and place the battery
into the rear compartment of the pump
case as shown. Ensure equal gaps are left
between the ends of the battery and sides
of the case to allow for the case screws to
be screwed in fully without damaging the
battery.
Connect the red battery cable from the
pump control PCB to the red '+' terminal
on the battery, and the black battery cable
to the black '-' terminal on the battery.
Refit the blue casing cover, securing with
the 6 screws using the Pozidriv size PZ1
screwdriver.
