SKC AirChek 20 Quick Manual

This Quick Guide covers basic operation of the SKC AirChek 20 Sample Pump. For complete pump operating
instructions, go to www.skcinc.com/knowledgecenter.
Inlet
LCD screen
Keypad
Carry handle
Installing and Charging the Battery
Install. The AirChek 20 pump (Figure 1) is supplied without battery Cat.
No. P920201 installed. Install the battery as follows:
1. Unfasten the six casing screws (three on each side
of the case, see Figure 1) using supplied Pozidriv
size PZ1 screwdriver. Lift off black casing cover.
2. Remove the two protective covers from the battery
terminals and place battery in rear compartment of
pump case as shown in Figure 2. Ensure that equal
gaps are left between ends of battery and sides of
case to allow for case screws to be screwed in fully
without damaging battery.
3. Connect red battery cable from pump control PCB
to red '+' terminal on battery, and black battery cable
to black '-' terminal on battery.
4. Reinstall black casing cover, securing it with the six screws
using Pozidriv size PZ1 screwdriver.
Charge. Before first use, the battery should be fully charged, ideally overnight.
AirChek 20 must only be charged using SKC Battery Charger Cat. No. 920-210.
The battery charger can only be used to charge the battery when the pump is not running, and not when the pump is
•
running to extend pump run time.
• AirChek 20 can be powered by AC Adapter Cat. No. 920-211 suitable for 100-240 V or by an external high capacity
12V lead-acid battery (not SKC supplied) using external Battery Cable Cat. No. 920-212. It is recommended that
these options be used in conjunction with internal battery Cat. No. P920201 to retain the pump program and run time
data when external power supplies are disconnected.
1. Unscrew dust cap from charging/power socket on pump (see Figure 1) and connect output connector from charger to
pump socket. Screw charging connector into socket to prevent it from detaching while charging.
2. Plug charger into a 100 to 240 V wall outlet. LED indicator on charger will illuminate amber to indicate that charger is
charging at full power.
skcinc.com

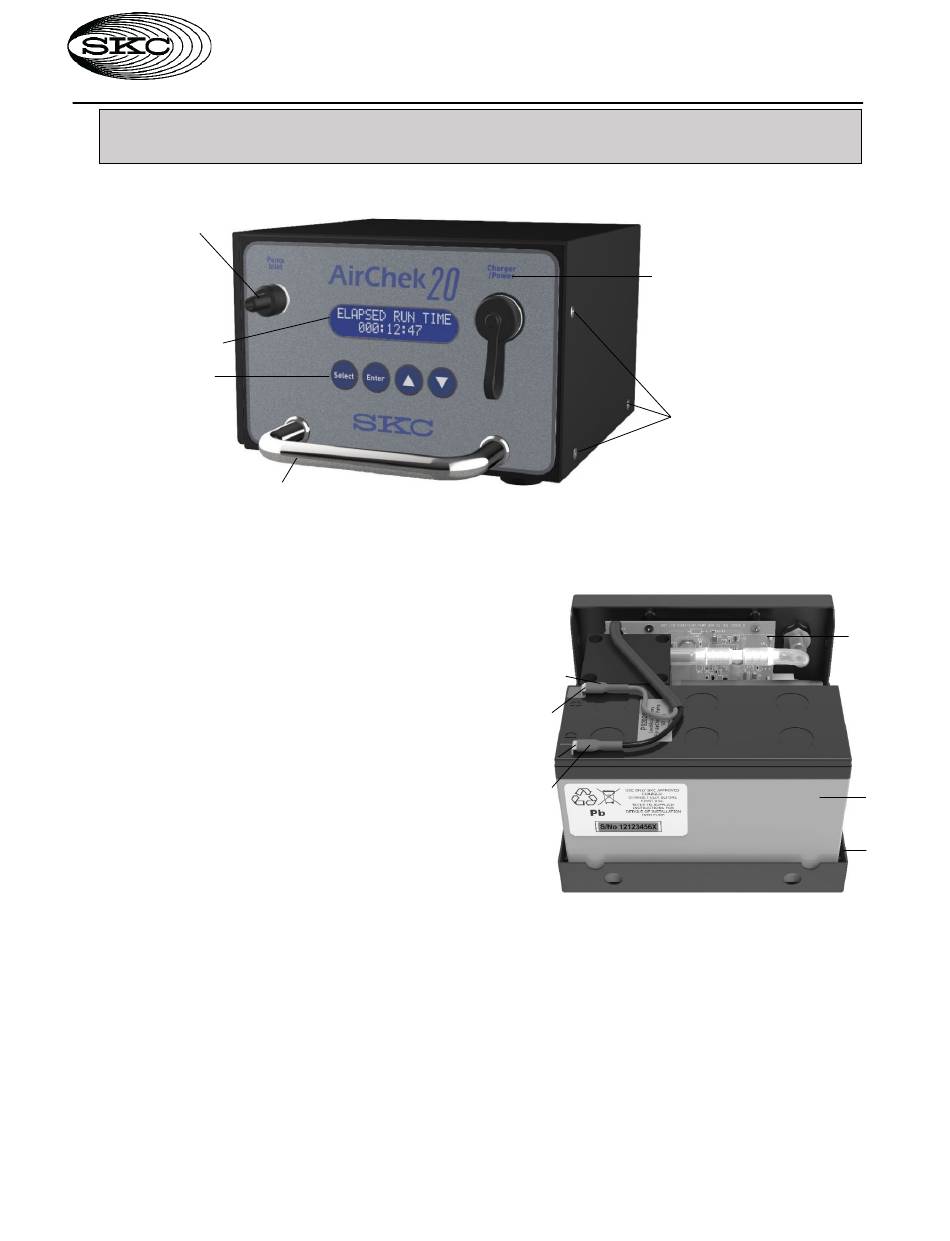

Figure 1. AirChek 20 Pump Overview
battery cable
terminal
Black -
terminal
Black
battery
cable
Form 40170 Rev 0
AirChek 20 Sample Pump
Cat. No. 920-2000
Charging/power socket
(with screw-in dust cap in
place)
Casing screws
(3 on both sides)
Red
Red +
Figure 2. Installing the Battery
Quick Guide
Pump
control
PCB
Battery
Gap between
battery and
both sides of
case should
be same.
