SKC AirChek 20 Operating Instructions Manual

Sample pump
Hide thumbs Also See for AirChek 20:
Table of Contents

Advertisement

Quick Links

Download this manual
AirChek 20 Sample Pump
Cat. No. 920-2000
Operating Instructions
Inlet
Keypad
Carry handle
INTRODUCTION ........................................................................................................................................... 3
Checking Pump/Kit Contents .................................................................................................................... 3
Required Equipment .................................................................................................................................. 3
GETTING STARTED .................................................................................................................................... 4
Installing the Battery .................................................................................................................................. 4
Charging the Battery .................................................................................................................................. 4
Battery Status Display............................................................................................................................ 5
Notes and Cautions ................................................................................................................................... 6
Power On/Wake Pump .............................................................................................................................. 6
Using the Keypad and LCD ....................................................................................................................... 6
Sleep Mode ............................................................................................................................................... 7
PROGRAMMING THE PUMP....................................................................................................................... 8
Setting and Verifying Flow Rate ................................................................................................................ 8
skcinc.com

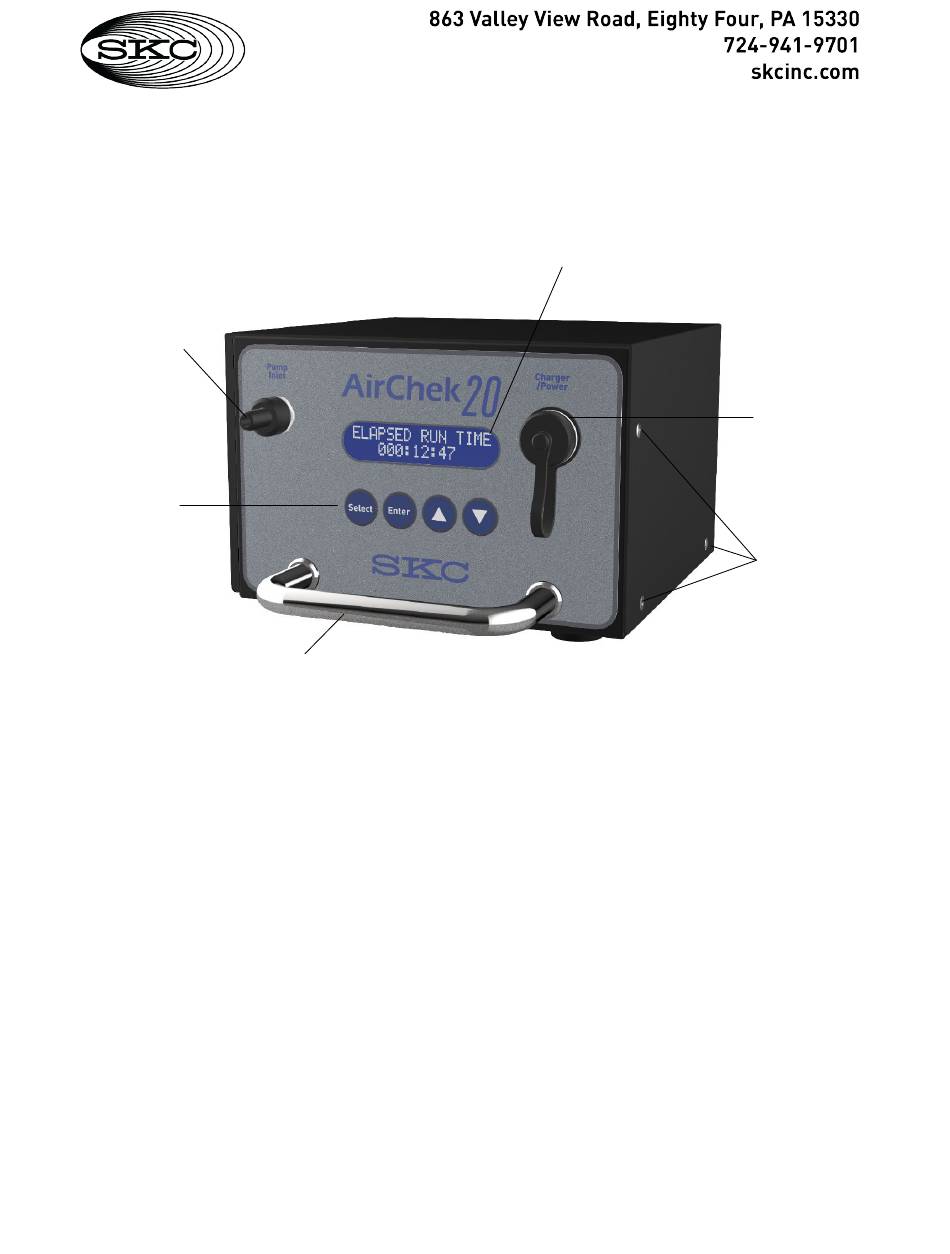

Figure 1. AirChek 20 Pump Overview
PDP0012 Rev 0
LCD screen
Charging/power
socket (with screw-in
dust cap in place)
Casing screws
(3 on both sides)
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirChek 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SKC AirChek 20

Summary of Contents for SKC AirChek 20

  • Page 1: Table Of Contents

    Keypad Casing screws (3 on both sides) Carry handle Figure 1. AirChek 20 Pump Overview INTRODUCTION ............................3 Checking Pump/Kit Contents ........................3 Required Equipment ..........................3 GETTING STARTED ............................ 4 Installing the Battery ..........................4 Charging the Battery ..........................
  • Page 2 Selecting Manual Operation ........................9 Setting Up a Timed Run ..........................9 Enter Start Delay Time........................... 9 Program Intermittent Sample Run and Delay Times ................. 10 Clearing a Sampling Program ......................... 10 Reviewing a Sampling Program ......................10 OPERATION ............................... 12 Sampling ..............................

  • Page 3: Introduction

    INTRODUCTION The SKC AirChek 20 Sample Pump (Figure 1) is a portable and programmable pump for high flow air sampling. With a flow range of 4 to 20 L/min, it provides high-performance sampling for asbestos and other particulates. AirChek 20 is ideal for area and environmental monitoring, bioaerosol sampling, and long-term background monitoring.

  • Page 4: Getting Started

    GETTING STARTED Installing the Battery AirChek 20 is supplied without battery Cat. No. P920201 installed. Install the battery as follows: 1. Unfasten the six casing screws (three on each side of the case) using the supplied Pozidriv size PZ1 screwdriver. Lift off the black casing cover.

  • Page 5: Battery Status Display

    2. Plug the charger into a 100 to 240 V wall outlet. The LED indicator on the charger will illuminate amber to indicate that the charger is charging at full power. 3. Leave the pump to charge fully. A fully depleted battery will take approximately 10 hours to charge.

  • Page 6: Notes And Cautions

    • The AirChek 20 pump is supplied complete with a rubber dust cap for the inlet and a screw-in dust cap for the charging/power socket. Ensure that these are in place at all times when the pump is not in use or being charged.

  • Page 7: Sleep Mode

    Press the Enter key to accept the selected menu option and the next menu screen will be displayed on the LCD screen (Battery Status screen is next screen displayed when Review is selected as shown at right). On number entry menu screens, such as sample run time, enter each digit of the hours and minutes individually.

  • Page 8: Programming The Pump

    3. Set up a flow verification train with representative sample medium in line. See Figure 3. Note: When using the SKC High Flow chek-mate Flowmeter, Pulsation Dampener Cat. No. 375- 150 is required in line between sample media inlet and flowmeter outlet as shown in Figure 3. See Accessories.

  • Page 9: Selecting Manual Operation

    minimum possible flow rate is reached, the LCD will display the series of arrows and “Max” or “Min” as appropriate. 7. While observing the reading on the flowmeter, use the up and down arrow keys to set the required flow rate. When the pump is running at the required flow rate, press the Enter key to save the flow rate setting and return to the SELECT main menu screen.

  • Page 10: Program Intermittent Sample Run And Delay Times

    Program Intermittent Sample Run and Delay Times 1. In the RunTime menu screen, scroll to Repeat and press the Enter key. The Set Repeat menu screen will be displayed. To enter time delay between repeats, scroll to Delay and press the Enter key.
  • Page 11 d. Timed Run Set—displayed only if a sample run time has been programmed. It indicates the length of the sample run time set in hours and minutes. e. Repeats Set—displayed only if a number of sample repeats has been programmed. It indicates the number of repeats and the delay time between each repeat run in hours and minutes.

  • Page 12: Operation

    OPERATION Sampling • Allow pump to equilibrate after moving it from one temperature extreme to another. • Charge pump battery completely before setting and verifying flow rate and sampling. After setting/verifying pump flow rate, replace the representative sampling medium with a new unexposed sampling medium for the sampling train (Figure 4).

  • Page 13: Manual Run

    Manual Run If the pump is in sleep mode, wake it to display the SELECT main menu screen (see Power On/Wake Pump on page 6). In the SELECT main menu, scroll to Run and press the Enter key. The pump will and the elapsed run time will be displayed counting up in hours, minutes, and seconds.

  • Page 14: Intermittent Sampling

    To continue sampling, in Hold menu screen scroll to Continue and press Enter key . The pump will resume running and display run time screen; run time will continue to increment. 2. During the start delay countdown, the sample program can be cancelled by simultaneously pressing the Select and Enter keys to bring up the Reset screen.
  • Page 15 The pump will continue to cycle through the remaining repeat delay periods and sample run periods, incrementing the repeat counter after each repeat run. At the end of the last sample run period, the pump will automatically stop and display the total elapsed sample runtime. This is the combined total of all of the times of the sample run periods, so for example, if the runtime was 1 hour and the number of repeats was 6, then the total elapsed runtime will be 6 hours.

  • Page 16: Troubleshooting

    TROUBLESHOOTING If the AirChek 20 pump detects that the battery is in a low charge state, a flat battery message will be displayed on the LCD screen. Charge the battery fully using the correct SKC charger before using the pump.

  • Page 17: Maintenance

    200 charge/discharge cycles if the battery is fully discharged every time prior to charging. Long-term storage - If the pump is to remain unused for a long period of time, SKC recommends that the battery be fully charged prior to storage, and charged at 6-month intervals, or if stored at a temperature in excess of 30 C, at 3-month intervals.

  • Page 18: Accessories/Replacement Parts

    SKC Limited Warranty and Return Policy SKC products are subject to the SKC Limited Warranty and Return Policy, which provides SKC’s sole liability and the buyer’s exclusive remedy. To view the complete SKC Limited Warranty and Return Policy, go to skcinc.com/warranty.

  • Page 19: Appendix: Performance Profile

    APPENDIX: PERFORMANCE PROFILE Flow Flow Range 4 to 20 L/min Compensation Range 20 L/min at 25 inches water back pressure (back pressure 16 L/min at 70 inches water back pressure capability) 12 L/min at 120 inches water back pressure 10 L/min at 145 inches water back pressure 8 L/min at 170 inches water back pressure 4 L/min at 225 inches water back pressure Tubing...
  • Page 20 • multi-plug Cat. No. 920-211 OR external high capacity 12 V lead-acid battery (not SKC supply) using external battery power cable Cat. No. 920-212 Note: For either external option, we recommend using it in conjunction with a P920201 internal battery to retain the pump program and run time data when external power supplies are disconnected.
