RGBlink VSP 9516S Quick Start Manual page 15

and , user can choose the mode according to actual connection mode.
Send to receiver after choose the connection mode, observe the LED display and make sure if display
image is correct. If wrong, change the connection modes. Then connect the Port D or Port U of One
Sending Card to LED display is finished.
(9) The setting for port D1 is same as the above setting.

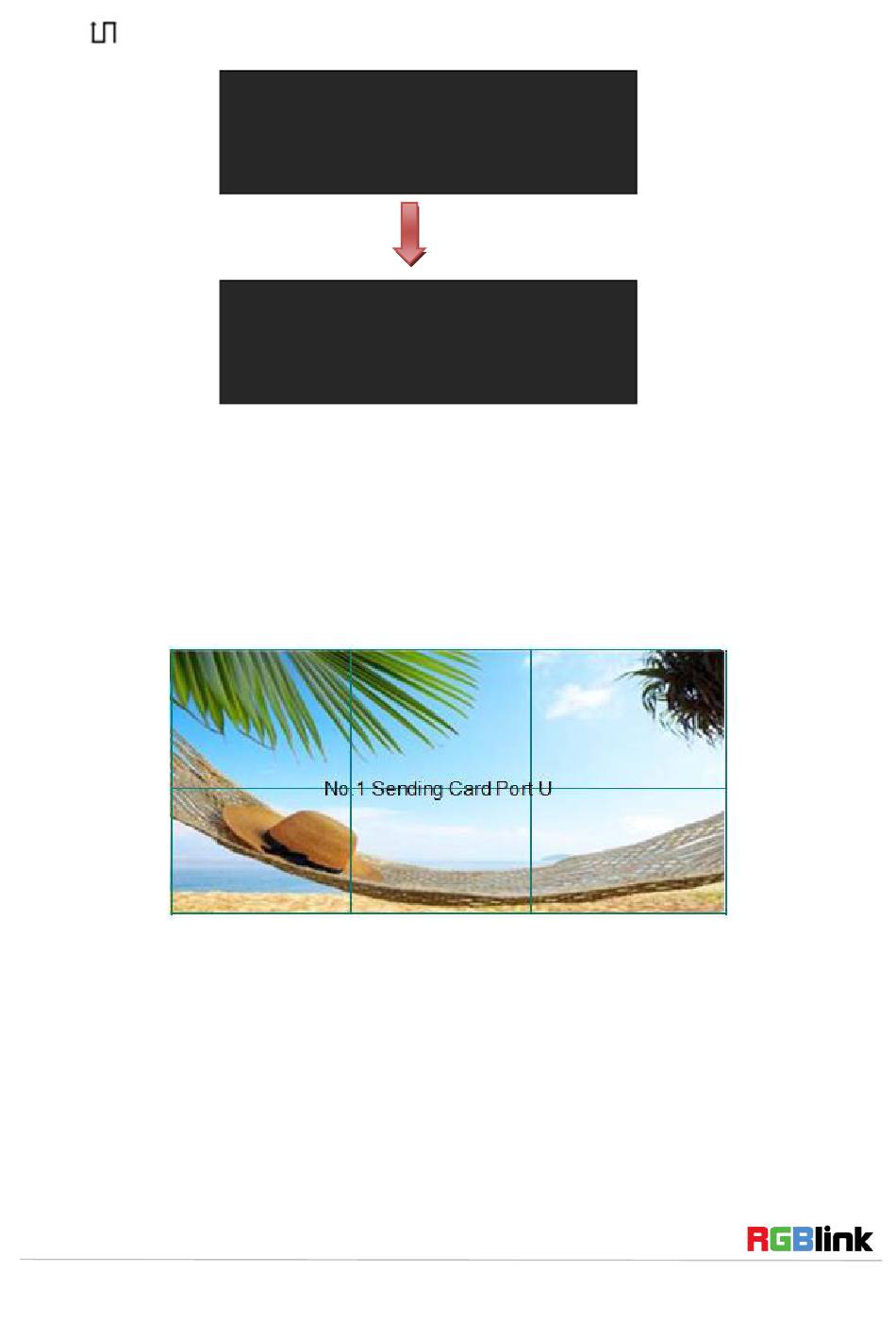

Rendering is as follows:
2. Connect the Port D and Port U of One Sending Card to LED Display
(1) First, make sure the device is in normal operation. The red power indicator lights when
device has power supply and the green signal indicator lights when device has signal
input.
(2) Choose the input signal, for example, choose DVI.
(3) Connect one end of the cable to Port D1, and the other one to U1.
Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C
HEIGHT
D PORT Offset (A/B) X
D PORT Offset (A/B) Y
>
DISPLAY CONNECTION
>
CONNECTION MODE
SEND TO RECEIVER
120
0
0
>>
14
