Device Registers

In addition to the ADSxx53EVM Settings page, the GUI also allows access to the SCLK frequency settings
and the ADSxx53 device register settings on the Device Registers page of the GUI. Use the EVM software
to change the following register settings of the configuration register (CFR):
• INPUT_RANGE (CFR.B9)
• INM_SEL (CFR.B7)
• REF_SEL (CFR.B6)
• STANDBY (CFR.B5)
Use the EVM software to also program the REFDAC register settings. See
device datasheet for more information.
6.5

Capturing Data with the ADSxx53EVM-PDK

Access the Data Monitor page in the GUI to monitor data acquired by the ADSxx53. This GUI page
displays the acquired data versus time. To access the Data Monitor page, hover over the red arrow at the
left-center side of the GUI screen; a menu with different GUI pages appears. Click on the Data Monitor
option in the menu, as shown in
22
ADS8353EVM-PDK and ADS7853EVM-PDK
Figure 24

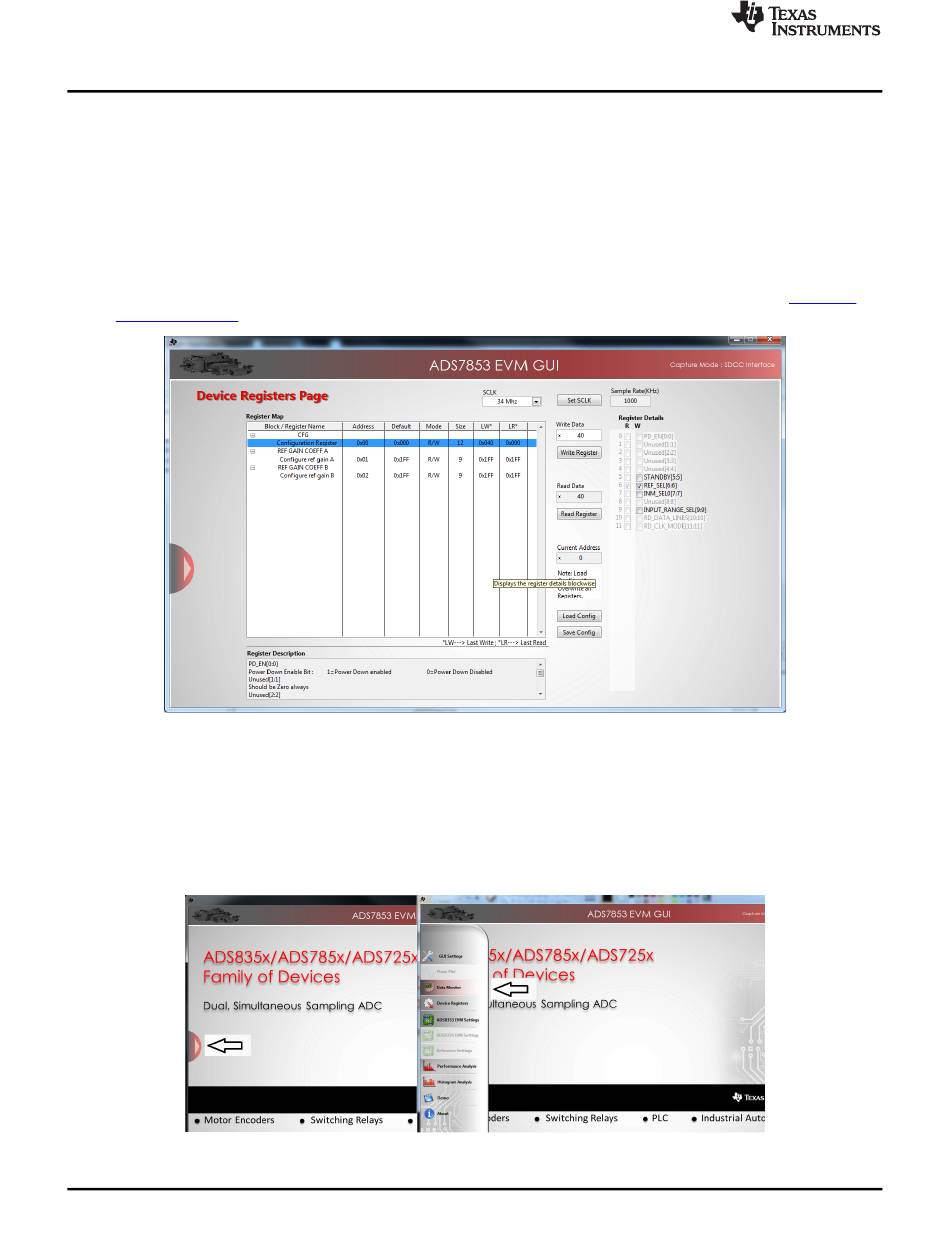

Figure 24. Device Registers Page
Figure 25.
Figure 25. Open the Data Monitor Page on the GUI
