Cabling for HA Deployments

The information and instructions in this section explain how to cable an HA node.

Rear Panel HA Cabling

Use one LAN connection for each device for HA redundancy support for the two members of
an HA node.

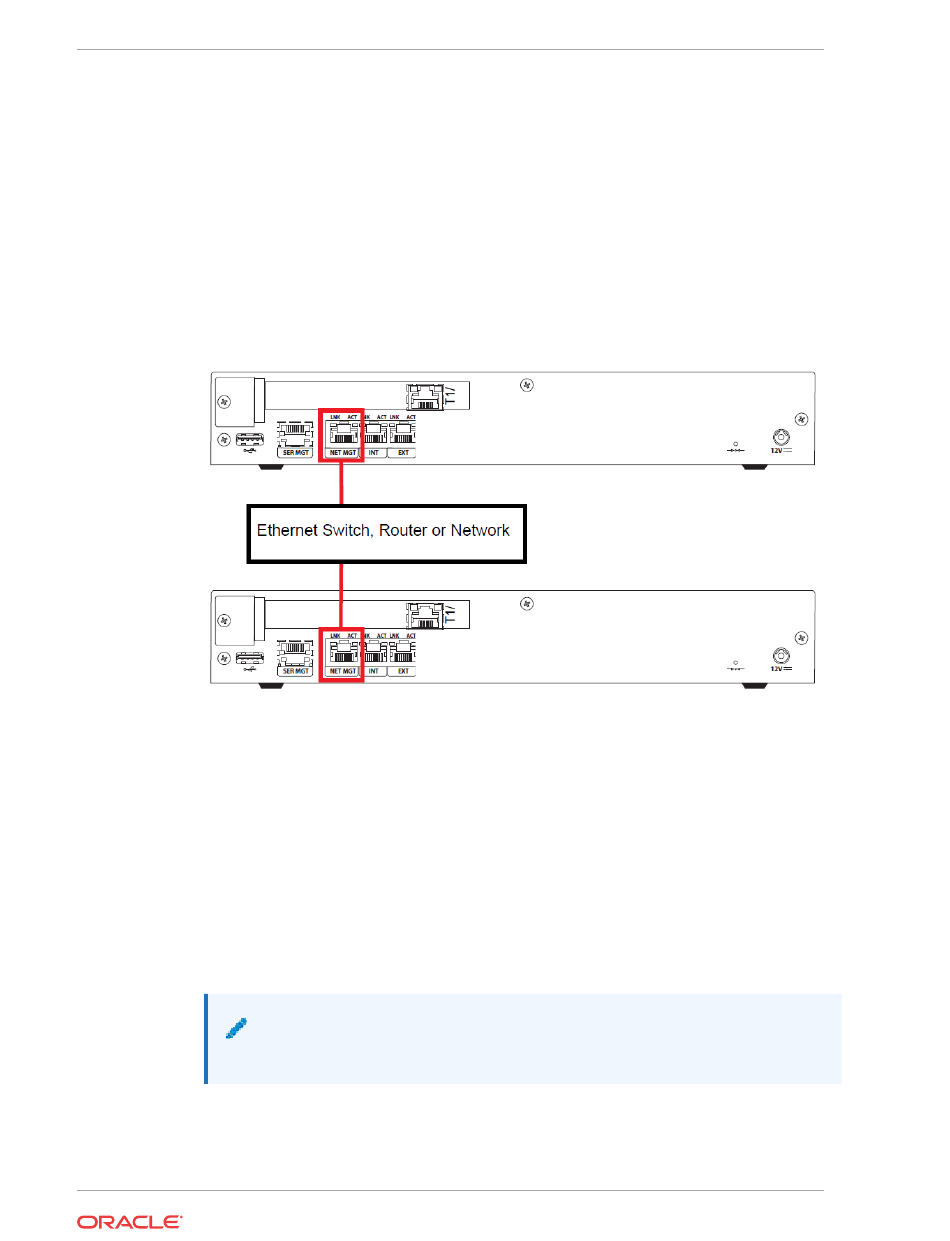

Figure 3-12 HA-Sharing Ports
To cable the Acme Packet 1100 in an HA configuration using single rear interface support:
Insert one end of an Ethernet cable into the NET MGT port on the rear panel of each Acme
1.
Packet 1100. The release tab on the RJ45 jack clicks into place when you insert it properly
into the chassis port.
Insert the other end of the Ethernet cable into an Ethernet switch. Refer to the
2.
configuration procedures located in the HA Nodes chapter of the Acme Packet
Configuration Guide.

AC Power Cord Installation Procedure

This section describes how to install an AC power cord.
Note:
Use a 15 Amp fused circuit for each AC power supply.
Install the AC power cord according to local procedures for equipment with external power
supplies. Ensure that the power cord is routed away from the cables attached to the Acme
