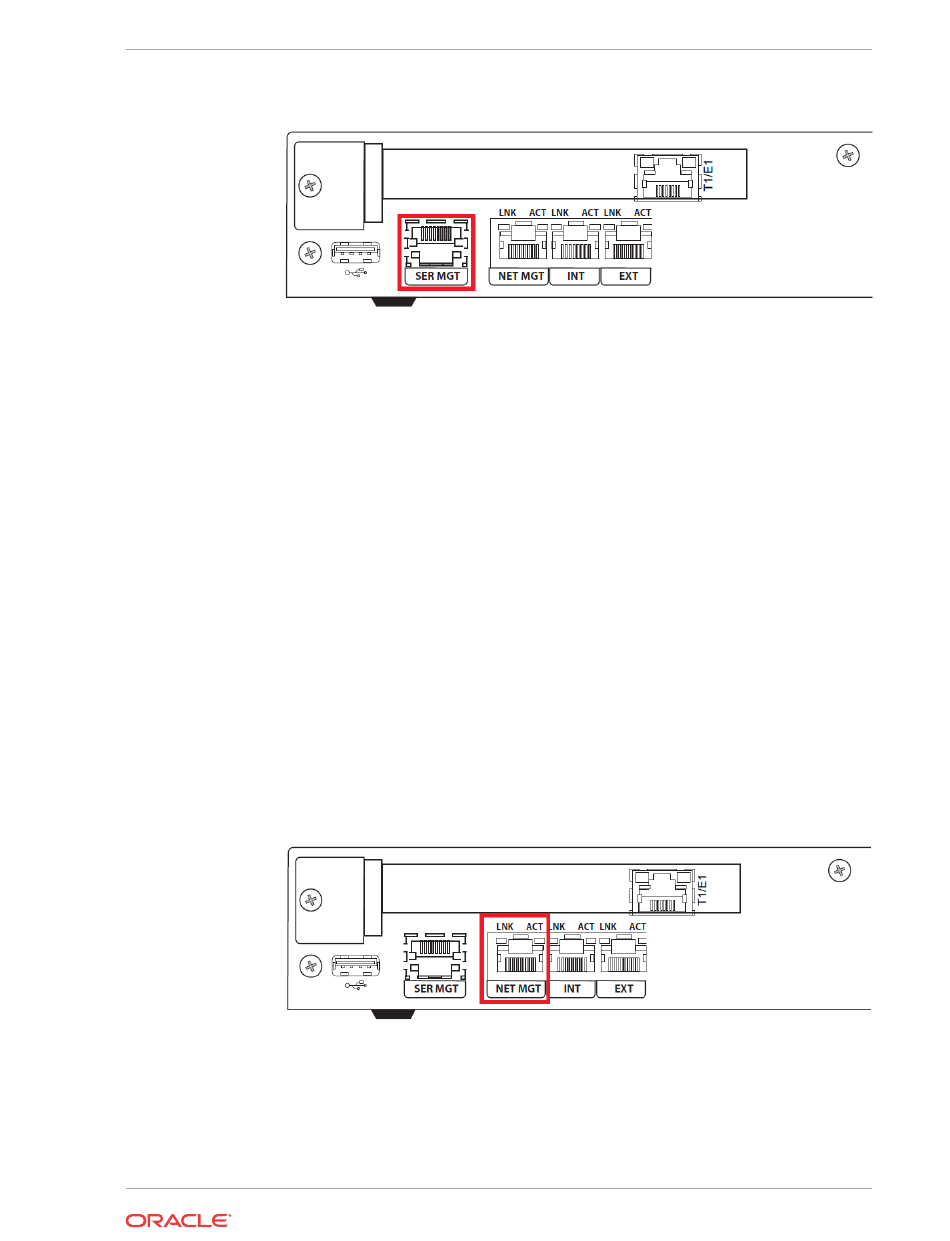

Figure 3-10 SER MGT Console Port
Insert the RJ45 connector on the end of the console cable into the console port labeled SER
2.
MGT.
Lead the console cable neatly away from the rear panel toward a terminal server or other
3.
component where this serial connection terminates.

Cabling Network Management (INT/EXT/NET MGT) Ports

Standard shielded CAT5e or CAT6 (or higher) Ethernet cables with RJ45 jacks are used for
connecting the Acme Packet 1100 network management Ethernet ports to your network. These
ports support 10/100 Mbps speeds. For more information about the network management ports,
see the descriptive sections in this document with respect to the INT, EXT and NET MGT
ports.

Network Management Cabling Procedure

To connect Ethernet cables to the network management ports:
Locate the Ethernet cables you plan to connect to the Acme Packet 1100.
1.
Insert the RJ45 connector on the end of the Ethernet cable into one of the network
2.
management Ethernet ports. These ports are labeled NET MGT, INT, and EXT. The release
tab on the RJ45 jack will click into place when you insert it properly into the port.
Figure 3-11 Network Management Ethernet Ports
Route the cable away from the Acme Packet 1100. Make sure that the Ethernet cables are
3.
not stretched tightly or subject to extreme stress.
Repeat the above steps for each additional management Ethernet cable you will connect to
4.
your Acme Packet 1100.
Cabling the Acme Packet 1100 System
Chapter 3
3-11
