• #6-32 5/16" screws with square cone washers (4)
On the right side of the chassis, align the holes in the wall bracket with the holes at the
2.
base of the chassis as shown.

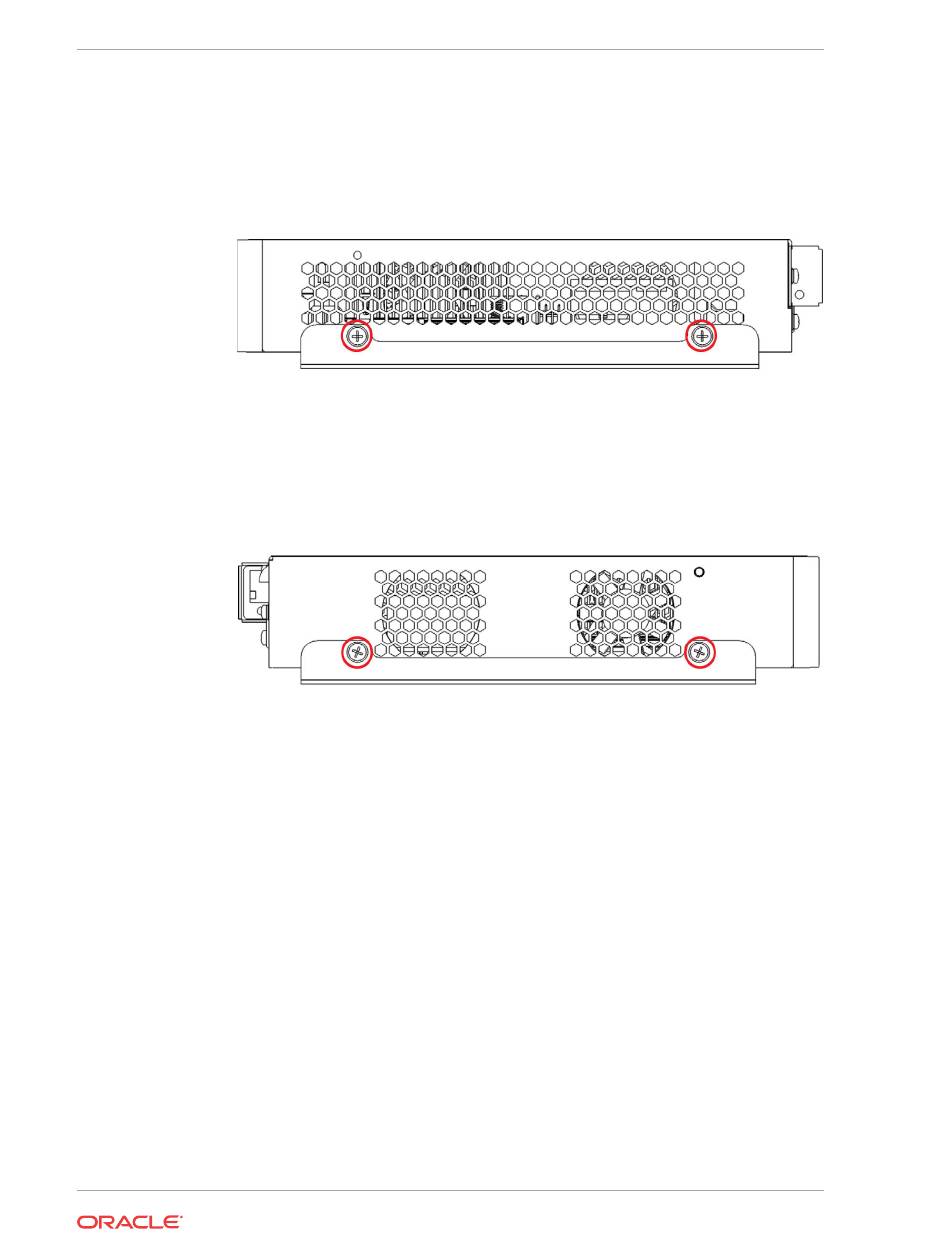

Figure 3-6 Wall Bracket Mount Points on the Right Side of the Acme Packet 1100
Insert a #6-32 5/16" screw and washer into each of the holes and then use a Phillips
3.
screwdriver to hand-tighten each screw to secure the wall bracket to the chassis.
On the left side of the chassis, align the holes in the wall bracket with the holes at the base
4.
of the chassis as shown.
Figure 3-7 Wall Bracket Mount Points on the Left Side of the Acme Packet 1100
Insert a #6-32 5/16" screw and washer into each of the holes and then use a Phillips
5.
screwdriver to hand-tighten each screw to secure the wall bracket to the chassis.
Ensure that there is enough room to access the front and back panel of the chassis for
6.
purposes of reviewing front/back panel LEDs and inserting/removing cables from the back
panel.
Ensure that there is enough room on either side of the chassis for adequate airflow to
7.
prevent overheating.
The illustration below shows relevant dimensions for use in preparing the surface on which
8.
to install the Acme Packet 1100 chassis. Pre-drill holes to accommodate the screws,
washers and anchors for each bracket that will secure the chassis bracket to the surface.
Insert customer-supplied screws/washers/anchors into each hole in the bracket to secure
the chassis to the mounting surface.
Ensure that the wall bracket screws are tight and that the Acme Packet 1100 is securely
9.
fastened to the wall.
