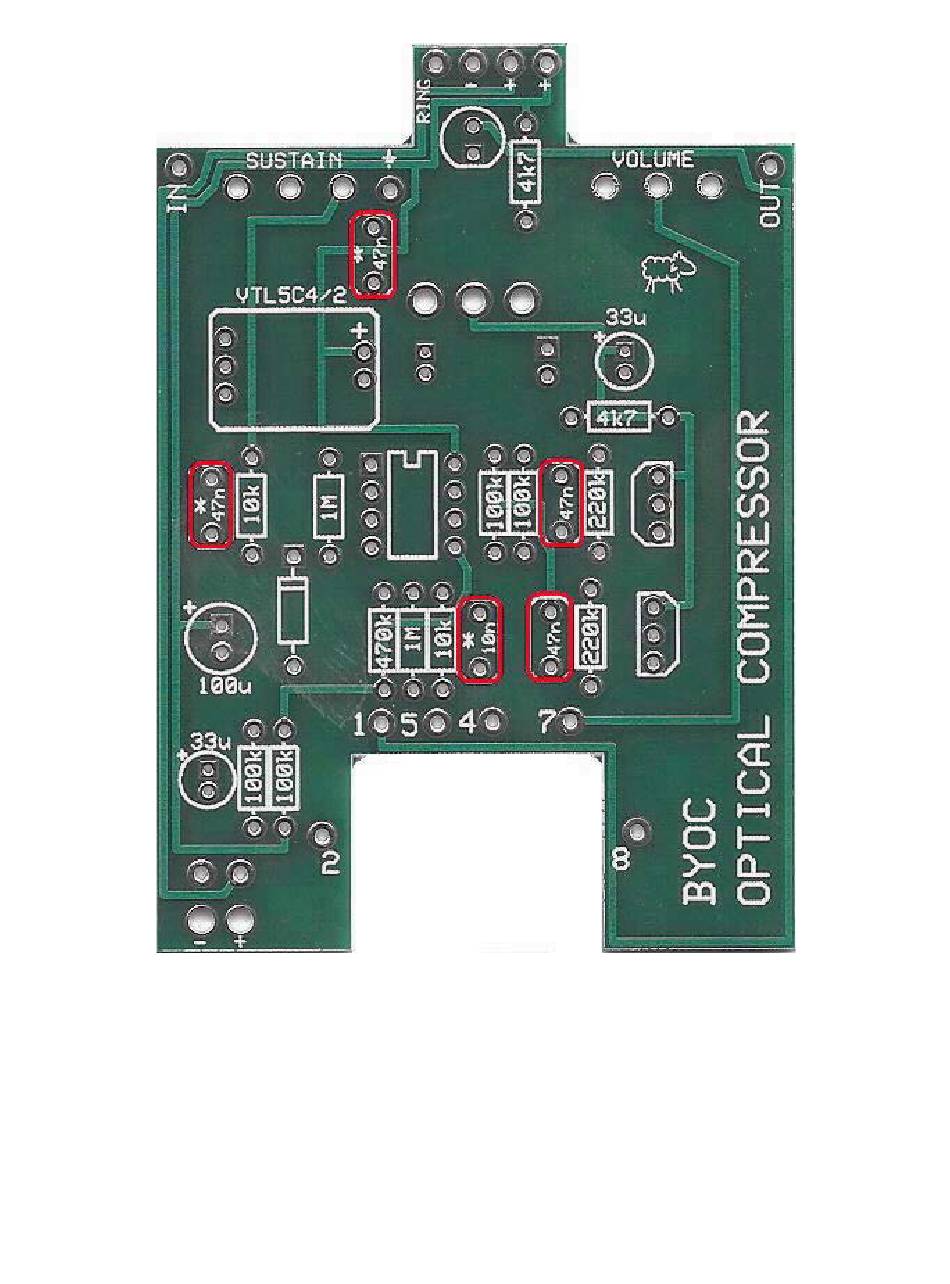

STEP 4: Add the film capacitors. These are not polarized so they can be inserted into
the PCB in either direction. If you are building for use with bass guitar, you should use
the .1uf(100n) capacitors in the places marked with an "*".
