Step 2:

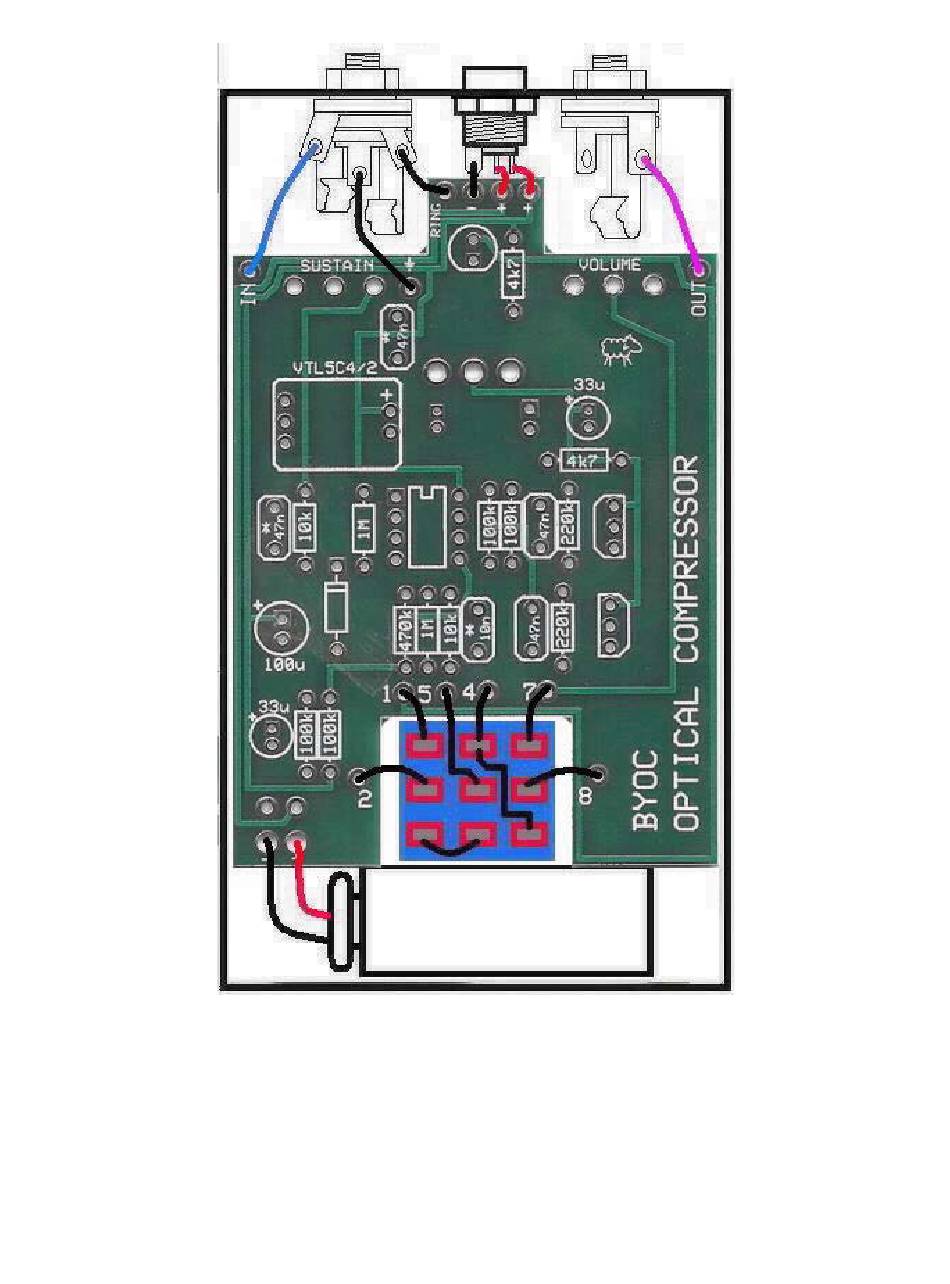

Cut 4 x 3/4" pieces of wire. Strip 1/8" off each end. These will be used to connect
•
lugs/eyelets 1, 2, 7, & 8
Cut 1 x 1" piece of wire. Strip 1/8" off each end. This will be used to connect
•
lug/eyelet 5
Cut 1 x 1.5" peice of wire. Strip 1/8" of one end. Strip 1/2" off the other end. This
•
will be used to connect lug/eyelet 4. The longer stripped end will be used to jumper
lug 4 to 9.
