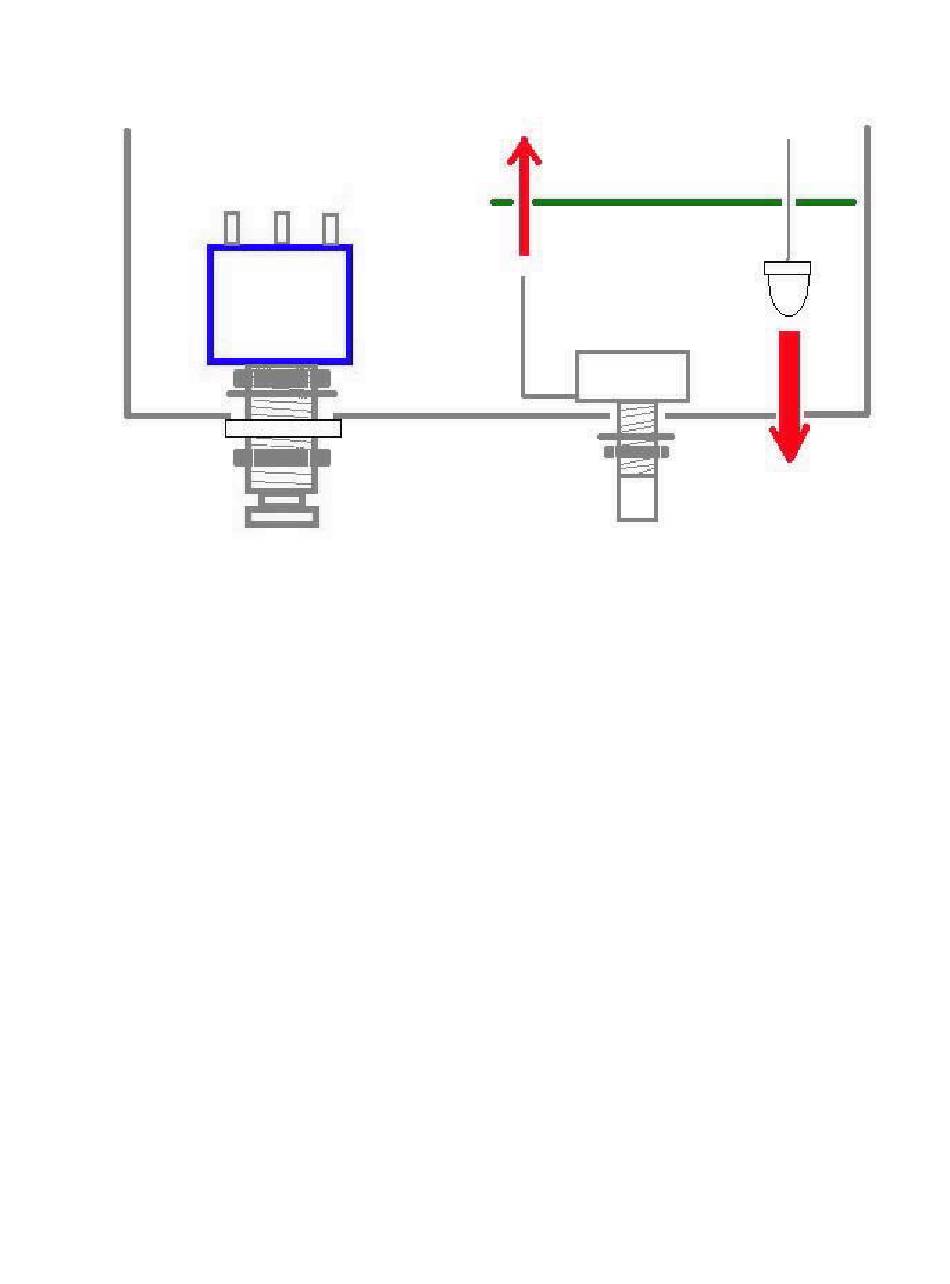

Step 5: Turn the entire pedal over so that the component side of the PCB if facing up.
Lift the PCB up off the pots about 2mm just to make sure that the back of the PCB does
not short out against that pots. Make sure the PCB is level and symetrically seated inside
the enclosure.
Step 6: Snug the nuts of the pots tight with your fingers and solder the pots and LED.
You will solder these parts on the top component side of the PCB.
