Build Your Own clone
Warranty:
BYOC, LLC guarantees that your kit will be complete and that all parts and components
will arrive as described, functioning and free of defect. Soldering, clipping, cutting,
stripping, or using any of the components in any way voids this guarantee. BYOC, LLC
guarantees t h a t the instructions for your kit will be free of any major errors that would
cause you to permanently damage any components in your kit, but does not guarantee
that the instructions will be free of typos or minor errors. BYOC, LLC does not
warranty the completed pedal as a whole functioning u n i t nor do we warranty any of the
individual parts once they have been used. If you have a component that is used, but
feel it was defective prior to you using it, we reserve the right to determine whether or
not the component was faulty upon arrival. Please direct all warranty issues to:
sales@buildyourownclone.com this would include any missing parts issues.
Return:
BYOC, LLC accepts returns and exchanges o n all products for any reason, as long as
they are unused. We do not accept partial kit returns. Returns and exchanges are for the
full purchase price less the cost of shipping and/or any promotional pricing. Return
shipping is the customers responsibility. This responsibility not only includes the cost of
shipping, but accountability of deliver as well. Please contact
sales@buildyourownclone.com to receive a return authorization before mailing.
Tech Support:
BYOC, LLC makes no promises or guarantees that you will successfully complete your kit
in a satisfactory manner. Nor does BYOC, LLC promise or guarantee that you will

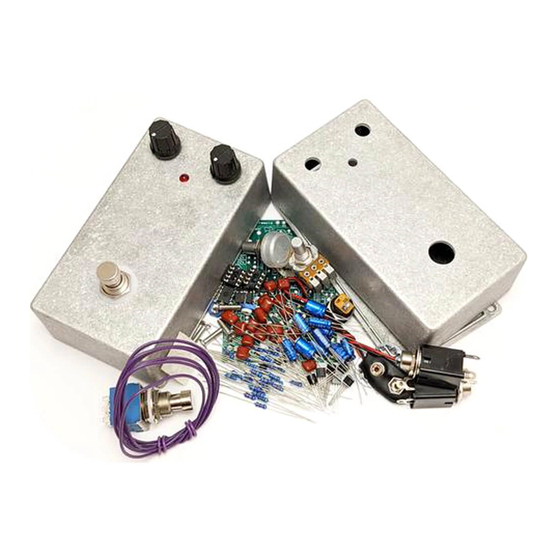

Brown Face Tremolo
Kit Instructions
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brown Face Tremolo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BYOC Brown Face Tremolo

Summary of Contents for BYOC Brown Face Tremolo

  • Page 1 Return: BYOC, LLC accepts returns and exchanges o n all products for any reason, as long as they are unused. We do not accept partial kit returns. Returns and exchanges are for the full purchase price less the cost of shipping and/or any promotional pricing.
  • Page 2 That being said, we will do our best to help you as much as we can. Our philosophy at BYOC is that we will help you only as much as you are willing to help yourself. We have a wonderful and friendly DIY discussion forum with an entire section devoted to the technical support and modifications of BYOC kits.

  • Page 3: Table Of Contents

    TREMOLO INSTRUCTION INDEX Parts Checklist.............page 4 - 5 Completed Example............page 6 Populating the Circuit Board........page 7 - 15 Main PCB Assembly...........page 16 - 18 Wiring the Jacks............page 19 - 20 Footswitch Assembly..........page 21 - 27 Operation Overview...........page 29 Schematic..............page 30...

  • Page 4: Parts Checklist

    Parts Checklist for BYOC Brown Face Tremolo Resistors: 5-Band Metal Film (blue) 4-Band Carbon (brown) 3 - 680 ohm (Blue/Gray/Black/Black/Brown) (Blue/Gray/Brown/Gold) 1 - 1k8 (Brown/Gray/Black/Brown/Brown) or (Brown/Gray/Red/Gold) 4 - 4k7 (Yellow/Purple/Black/Brown/Brown) or (Yellow/Purple/Red/Gold) 9 - 22k (Red/Red/Black/Red/Brown) (Red/Red/Orange/Gold) 1 - 100k...
  • Page 5 Hardware: 1 - drilled enclosure w/ 4 screws (optional) 1 - BYOC BrownFace Tremolo PCB 1 - 3PDT footswitch 2 - Enclosed mono jacks 1 - red LED (optional) 1 - DC jack (optional) 2 - knobs (optional) 1 - battery snap...

  • Page 6: Completed Example

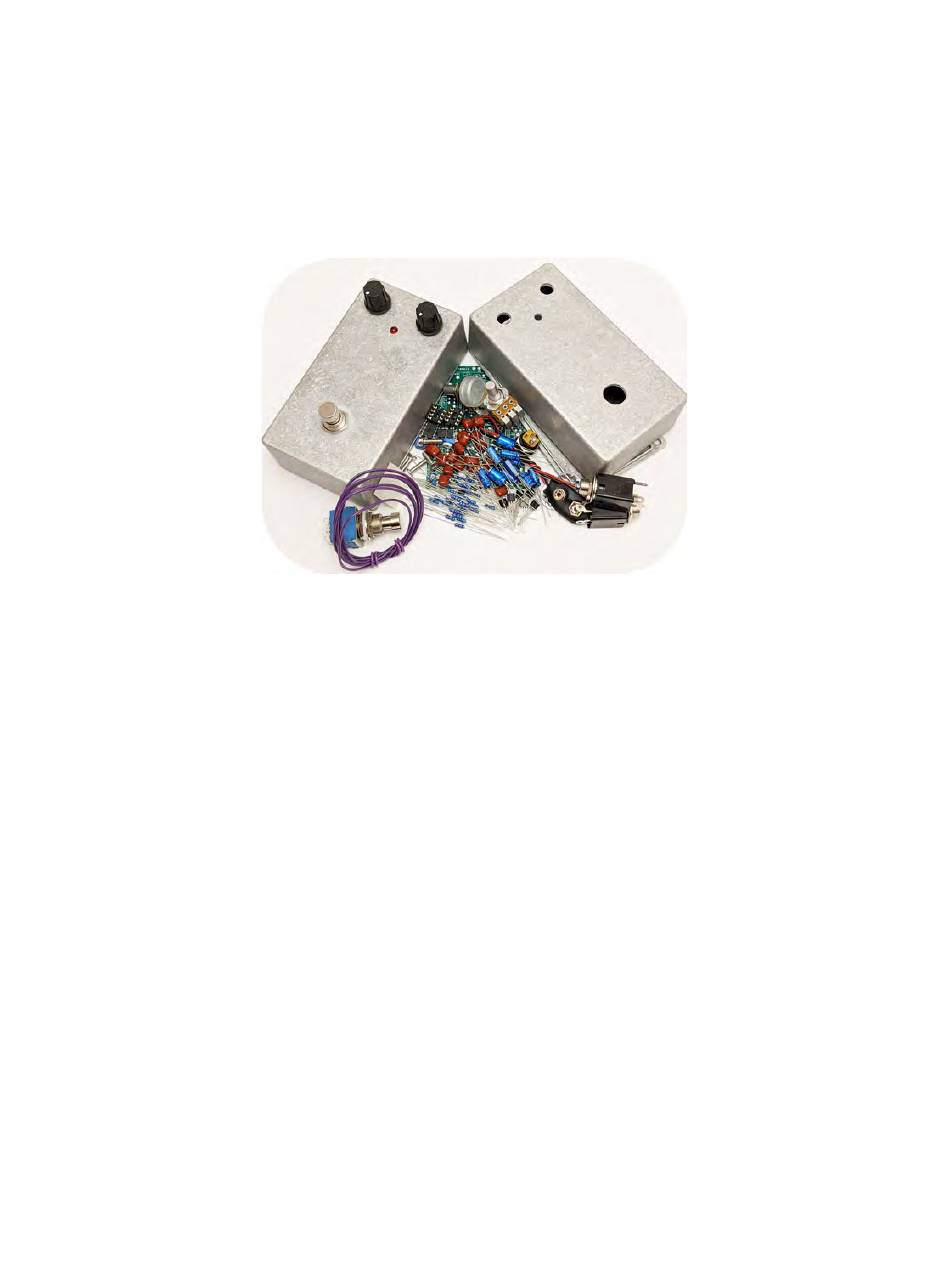

    Your finished build will look something like this. Don’t be alarmed if some of the components are different colors. As long as they are the correct values, they will work just fine.

  • Page 7: Populating The Circuit Board

    Populating the Circuit Board STEP 1: Add the diodes. Be sure to match the striped end of the diode with the stripe to the layout on the PCB. The stripped end should go in the square solder pad.
  • Page 8 STEP 2: Add the resistors. Resistors are not polarized, so it does not matter which end goes in which solder pad.
  • Page 9 STEP 4: Add the film and ceramic capacitors. These are not polarized so they can be inserted into the PCB in either direction. The capacitor highlighted in yellow is the ceramic disc...
  • Page 10 STEP 5: Add the transistors. Orient the transistors so that the flat side matches up with the flat side of the PCB layout. Be sure to put the 2N5089 in the space highlighted in yellow, the 3904’s in the spaces highlighted in blue and the 2N5458's in the spaces highlighted in red.
  • Page 11 Step 6: Add the two DIP8 IC sockets. Only solder the sockets to the board. The ICs themselves will go into the sockets. Orient the sockets to the notch on the PCB lines up with the notch on the sockets. When installing the ICs, match the notch on the body with the notch on the PCB.
  • Page 12 Step 7: Add the trimpots. There are three legs on the trimpot, but 5 holes on the PCB. This is to allow for the use of various sizes of trimpots. Your trimpots will fit into three of them nicely. When you are done with your build, you will need to adjust the trimpots before your build will work properly.
  • Page 13 STEP 8: Add the aluminum electrolytic capacitors. These are polarized. The positive end will have a longer lead and should go in the square solder pad. The negative end will have a shorter lead with a black strip running down the body of the capacitor.
  • Page 14 Step 9: Add the battery snap. Thread the solder ends of the battery snap into the strain relief holes from the bottom solderside of the PCB and out through the top. Insert the solder ends of the battery snap wires into the topside of their respective solder pads. Solder on the bottom side of the PCB.
  • Page 15 Step 10: Add wires to the OUT, Ground, and RING eyelets. Start by cutting three 2.5 inch pieces of wire and two 6 inch pieces of wire, set aside the 6 inch pieces for now. Strip ¼ inch off each 2.5 inch piece and tin the ends. Tinning means to apply some solder to the stripped ends of the wires.

  • Page 16: Main Pcb Assembly

    Assembly Step 1: Flip the PCB over so that the bottom or solder side is up. Insert the B100k dual gang (DEPTH), C100K (SPEED) potentiometers, and the LED into the bottom side of the PCB. DO NOT SOLDER YET!!! The LED will have one lead that is longer than the other.
  • Page 17 Step 2: Hold the PCB in one hand so that the component side of the PCB is in the palm of your hand and the bottom side with the pots, toggle switch and LED is facing up. Now use your other hand to guide the predrilled enclosure onto the PCB assembly so that the pots and LED all go into their respective holes.
  • Page 18 Step 5: Install the DC jack into the enclosure. Connect the TIP (negative) terminal of the DC jack to the “-“ eyelet on the PCB with 1 inch of hook-up wire. Connect the SLEEVE of the DC adapter jack to the “+” eyelet on the right side of the PCB with 1 inch of hook- up wire.

  • Page 19: Wiring The Jacks

    Wiring the jacks Step 1: Install the enclosed jacks into the enclosure. Be sure to ‘clock’ the jacks. In other words, make sure to orient them in such a way that the solder terminals of the jacks don’t come into contact with anything they’re not supposed to. Any orientation will work, as long as you are mindful of the terminal designations as shown above.
  • Page 20 Step 2: Connect the three 2.5 inch pre stripped and tinned wires to the enclosed jacks.

  • Page 21: Footswitch Assembly

    Footswitch Wiring/Assembly There are no actual number markings on the footswitch. Orient the footswitch so that the flat sides of the solder lugs are running horizontally, not vertically. There is no "top side" or "bottom side" of the switch until you actually solder something to it and designate it as such.
  • Page 22 Step 2: Take one of the 6 inch pieces of wire from earlier and strip about 1.5 inches from one side. Run the striped end between lugs 4 and 9. Solder both lugs. Be careful not to short the bare metal striped end against any other lugs on the footswitch.
  • Page 23 Step 3: Install the footswitch into the enclosure. Remember to place the footswitch lock washer on the inside of the enclosure to help prevent spinning. You can choose to use the nylon washer on the outside if you’d like, it helps reduce damage to the finish while tightening the outside nut, but it’s not absolutely necessary.
  • Page 24 Step 4: Cut and tin four 2.5 inch wires. These will be for lugs 1, 2, 5, and 7. Once they are cut and tinned, insert them into the eyelets on the PCB and solder. You can remove the footswitch from the enclosure for more space if you need.
  • Page 25 Step 5: Connect the short wires to their respective lugs on the footswitch. Refer to the information above about the lug numbers if you are unsure about the number scheme of footswitches.
  • Page 26 Step 6: Add the second 6 inch piece of wire from the earlier steps to lug 8 of the footswitch. You will notice that both wires at lug 4 and lug 8 aren’t connected to anything else yet. Those will be our final connections.
  • Page 27 Step 7: Connect the wire from lug 4 to the INPUT jack TIP terminal, connect the wire from lug 8 to the OUTPUT jack TIP terminal. It’s okay to leave the wire a little long to allow for movement of the wire if needed.

  • Page 29: Operation Overview

    Operating Overview SPEED: Controls the speed of the tremolo effect. CCW is a slower effect, CW is a faster effect. DEPTH: Controls the depth of the tremolo effect. CCW is a shallower depth, CW is a deeper depth. POWER: 9V Battery or 2.1mm tip-negative wall adapter.

  • Page 31: Schematic

    For a high resolution schematic: http://byocelectronics.com/brownfaceschematic.pdf For tech support, visit: http://byocelectronics.com/board Copyright 2020, BYOC INC. LLC.
