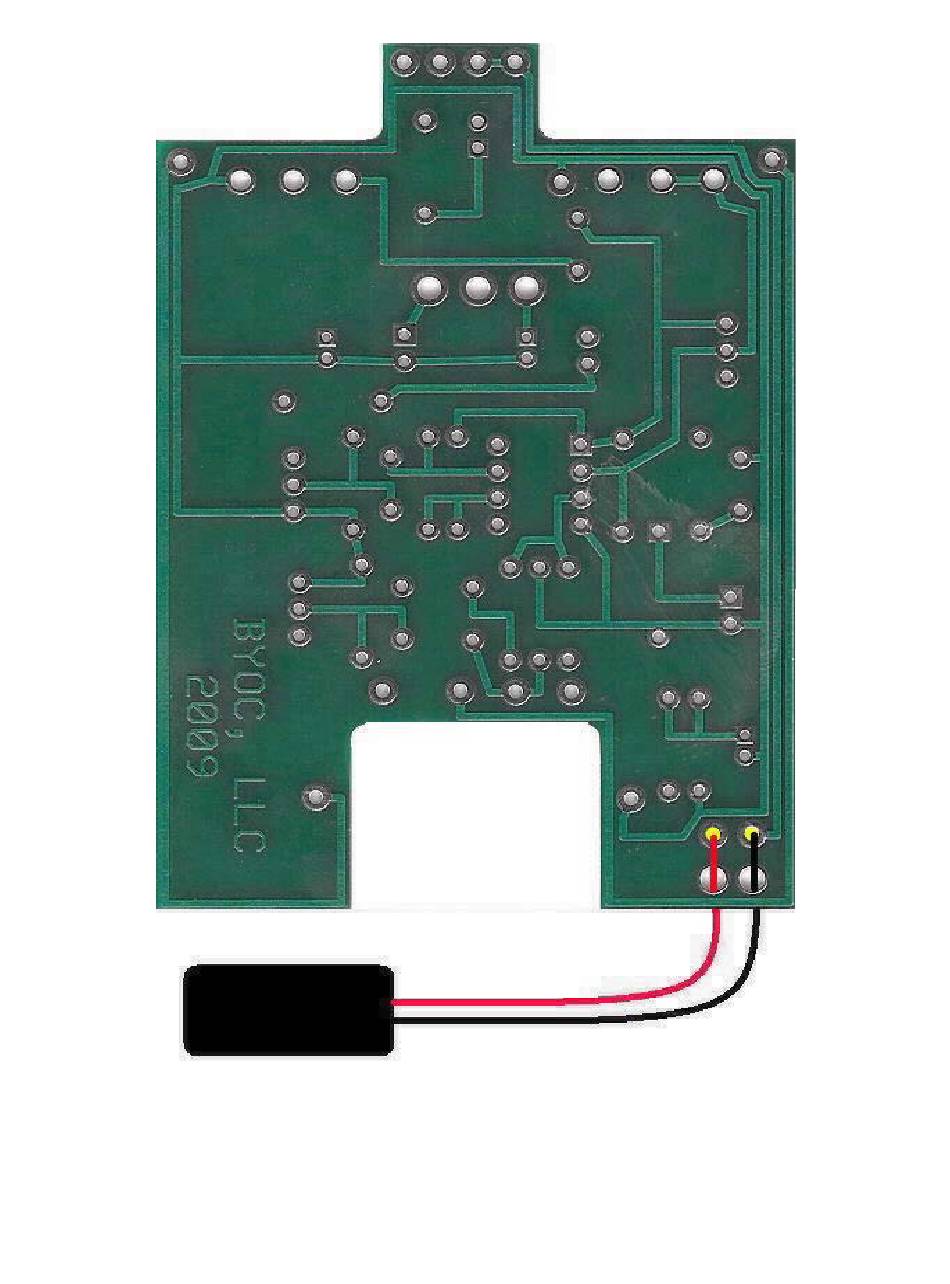

Step 8: Add the battery snap. Thread the solder ends of the snap through the under side

of the strain relief holes. Insert the stripped ends of the battery snap wires into the

topside of their respective solder pads. Solder on the bottom side where highlited in

yellow. Remember the red wire goes in the "+" hole and the black wire goes in the "-

"hole.
