Wiring the footswitch, and jacks

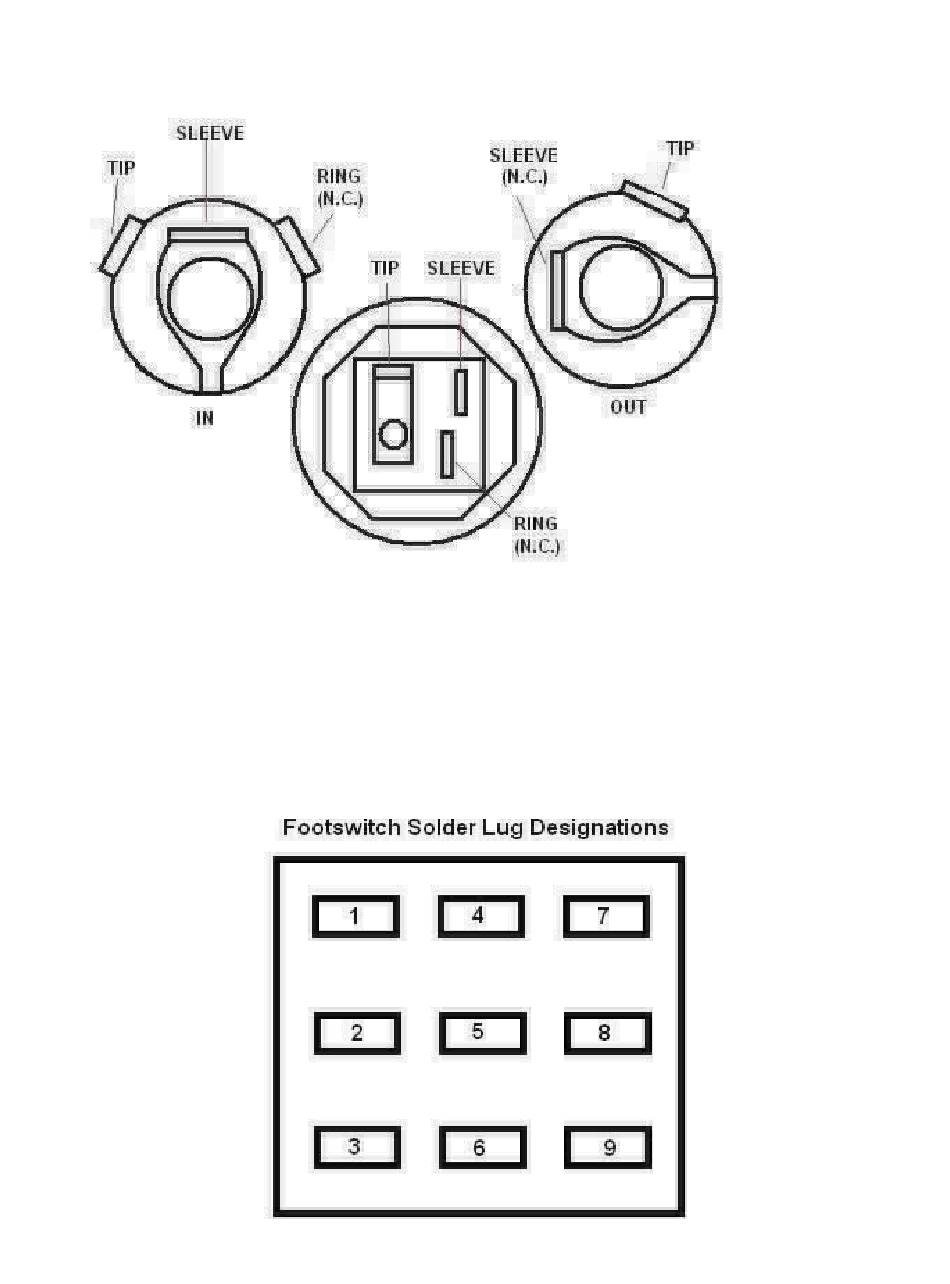

Step 1: Install
the 1/4" jacks on the enclosure. Be sure to turn the OUT jack a 1/4 turn counter
clockwise so that solder terminal for the tip does not short out against the enclosure.
Step 1: Install the 1/4" jacks on the enclosure. Be sure to turn the OUT jack a 1/4 turn
counter clockwise so that solder terminal for the tip does not short out against the
enclosure.
Step 2: Install the footswitch on the enclosure. Orient the footswitch so that the flat
sidesof the solder lugs are horizontal. You can turn it 180 degrees. Either way is fine,
just don't orient the foost switch so that the flat sides of the solder lugs are vertical.
