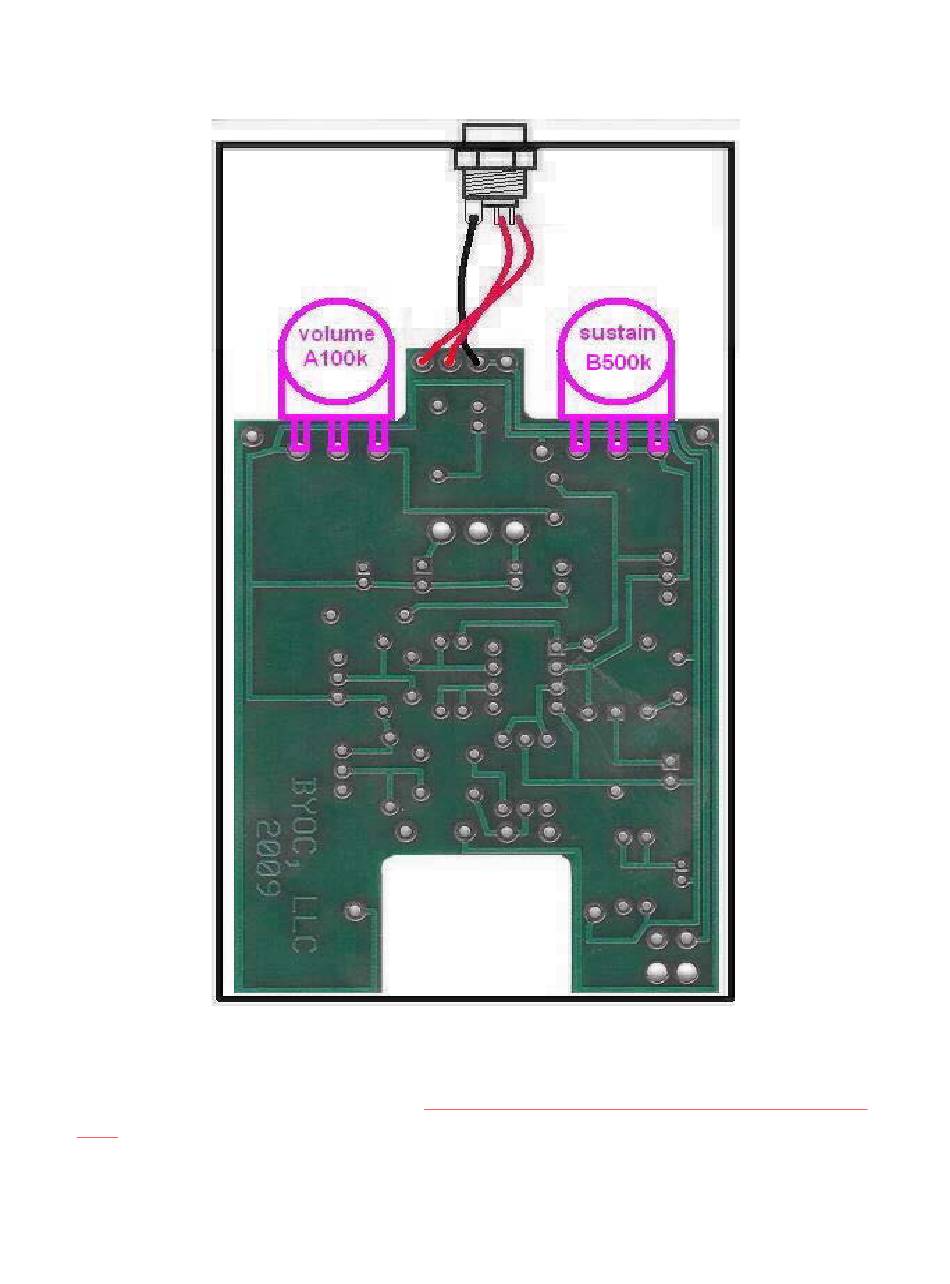

Step 3: Flip the PCB over so that the bottom or solder side is up. Insert the two
potentiometers and the LED into the bottom side of the PCB. DO NOT SOLDER!!!
Step 4: Hold the PCB in one hand so that the component side of the PCB is in the palm
of your hand and the bottom side with the pots and LED is facing up. Now use your
other hand to guide the predrilled enclosure onto the PCB assembly so that the pots and
Place the long lead of the LED into the square
LED all go into there respective holes.
hole
.
Once the PCB assembly is in place, secure it by screwing on the washers and nuts
for the pots and toggle switch. Only tighten them with your fingers. You do not want
them very tight yet. Be sure to keep your hand on the PCB so that it does not fall off the
PC mounting posts of the pots and toggle switch.
