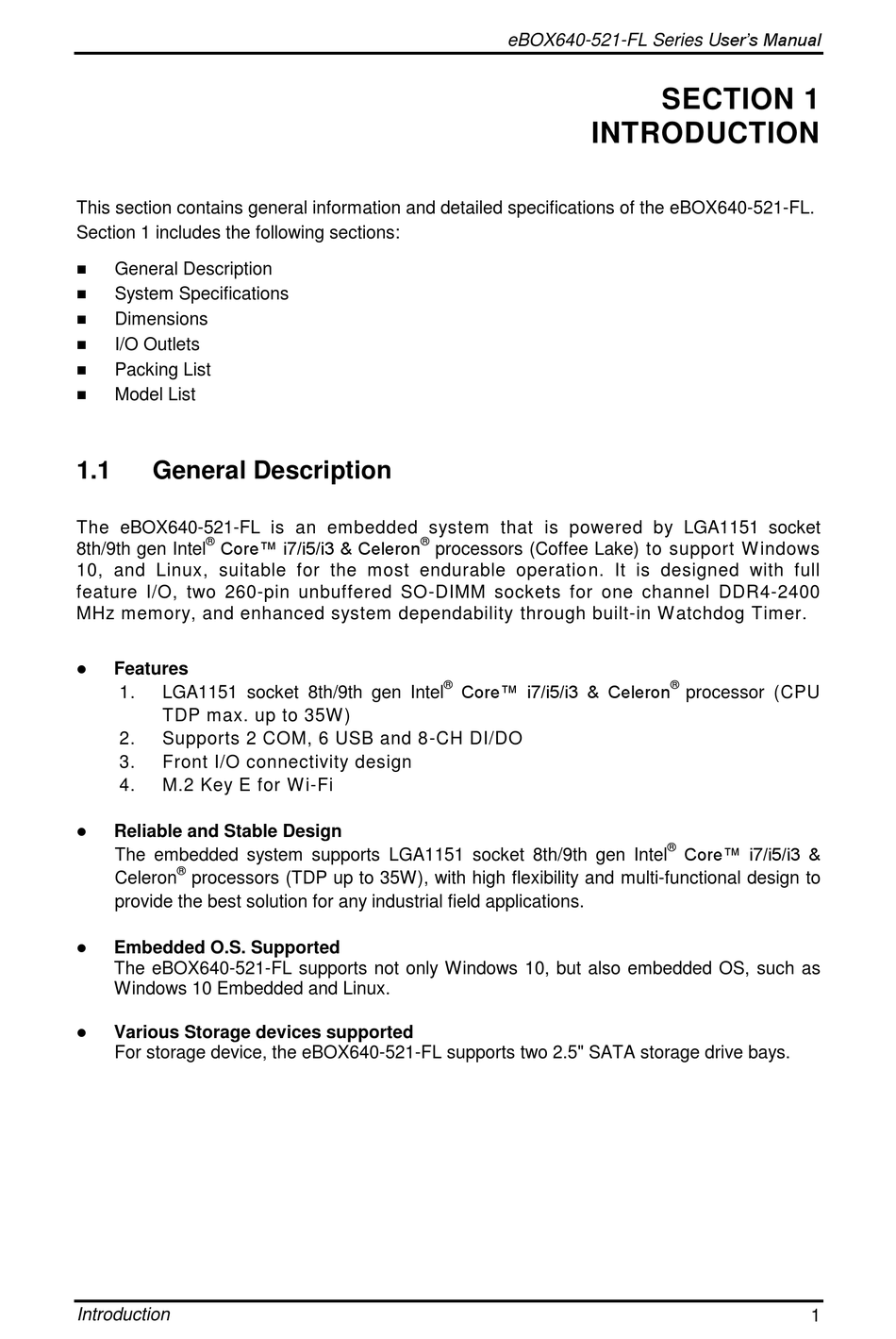

Section 1 Introduction; General Description - AXIOMTEK eBOX640-521-FL Series User Manual

This section contains general information and detailed specifications of the eBOX640-521-FL.
Section 1 includes the following sections:


General Description

 System Specifications

Dimensions
 I/O Outlets
 Packing List
 Model List
1.1 General Description
The eBOX640-521-FL is an embedded system that is powered by LGA1151 socket
®
Core™ i7/i5/i3 & Celeron
8th/9th gen Intel
10, and Linux, suitable for the most endurable operatio n. It is designed with full
feature I/O, two 260-pin unbuffered SO-DIMM sockets for one channel DDR4-2400
MHz memory, and enhanced system dependability through built-in W atchdog Timer.
 Features
1. LGA1151 socket 8th/9th gen Intel
TDP max. up to 35W )
2. Supports 2 COM, 6 USB and 8-CH DI/DO
3. Front I/O connectivity design
4. M.2 Key E for W i-Fi

Reliable and Stable Design
The embedded system supports LGA1151 socket 8th/9th gen Intel
®
Celeron processors (TDP up to 35W), with high flexibility and multi-functional design to
provide the best solution for any industrial field applications.

Embedded O.S. Supported
The eBOX640-521-FL supports not only Windows 10, but also embedded OS, such as
Windows 10 Embedded and Linux.
 Various Storage devices supported
For storage device, the eBOX640-521-FL supports two 2.5" SATA storage drive bays.
Introduction
eBOX640-521-FL Series User's Manual
®
processors (Coffee Lake) to support W indows
®
Core™ i7/i5/i3 & Celeron
SECTION 1
INTRODUCTION
®
processor (CPU
®
Core™ i7/i5/i3 &
1
