eBOX640-521-FL Series User's Manual

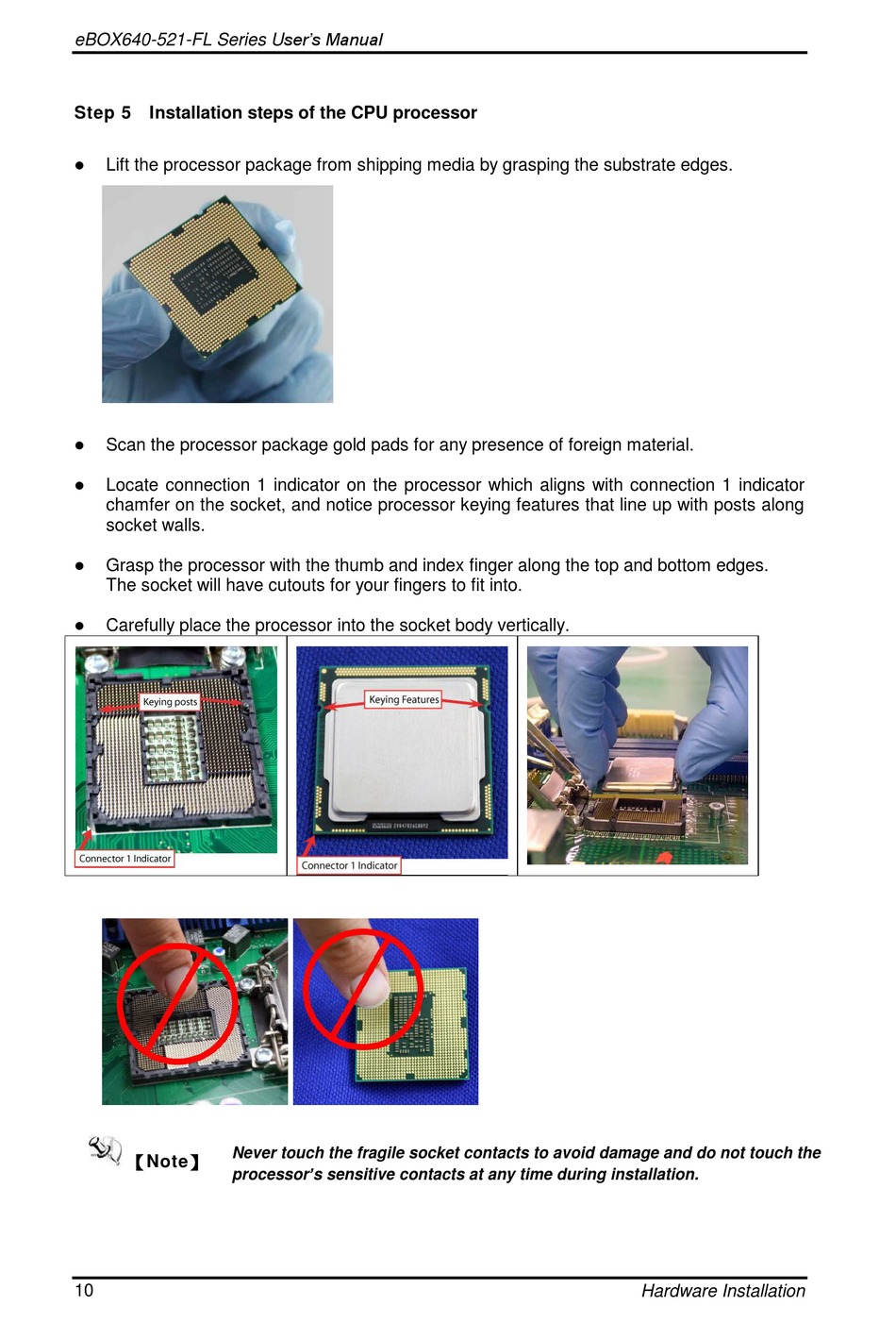

Step 5 Installation steps of the CPU processor
 Lift the processor package from shipping media by grasping the substrate edges.
 Scan the processor package gold pads for any presence of foreign material.

Locate connection 1 indicator on the processor which aligns with connection 1 indicator
chamfer on the socket, and notice processor keying features that line up with posts along
socket walls.
 Grasp the processor with the thumb and index finger along the top and bottom edges.
The socket will have cutouts for your fingers to fit into.
 Carefully place the processor into the socket body vertically.
Never touch the fragile socket contacts to avoid damage and do not touch the
【Note】
processor's sensitive contacts at any time during installation.
10
Hardware Installation
