eBOX640-521-FL Series User's Manual
SECTION 3
JUMPER & CONNECTOR SETTINGS
Proper jumper settings configure the eBOX640-521-FL to meet various application needs.
Hereby all jumpers settings along with their default settings are listed for devices onboard.
3.1
Locations of Jumpers & Connectors

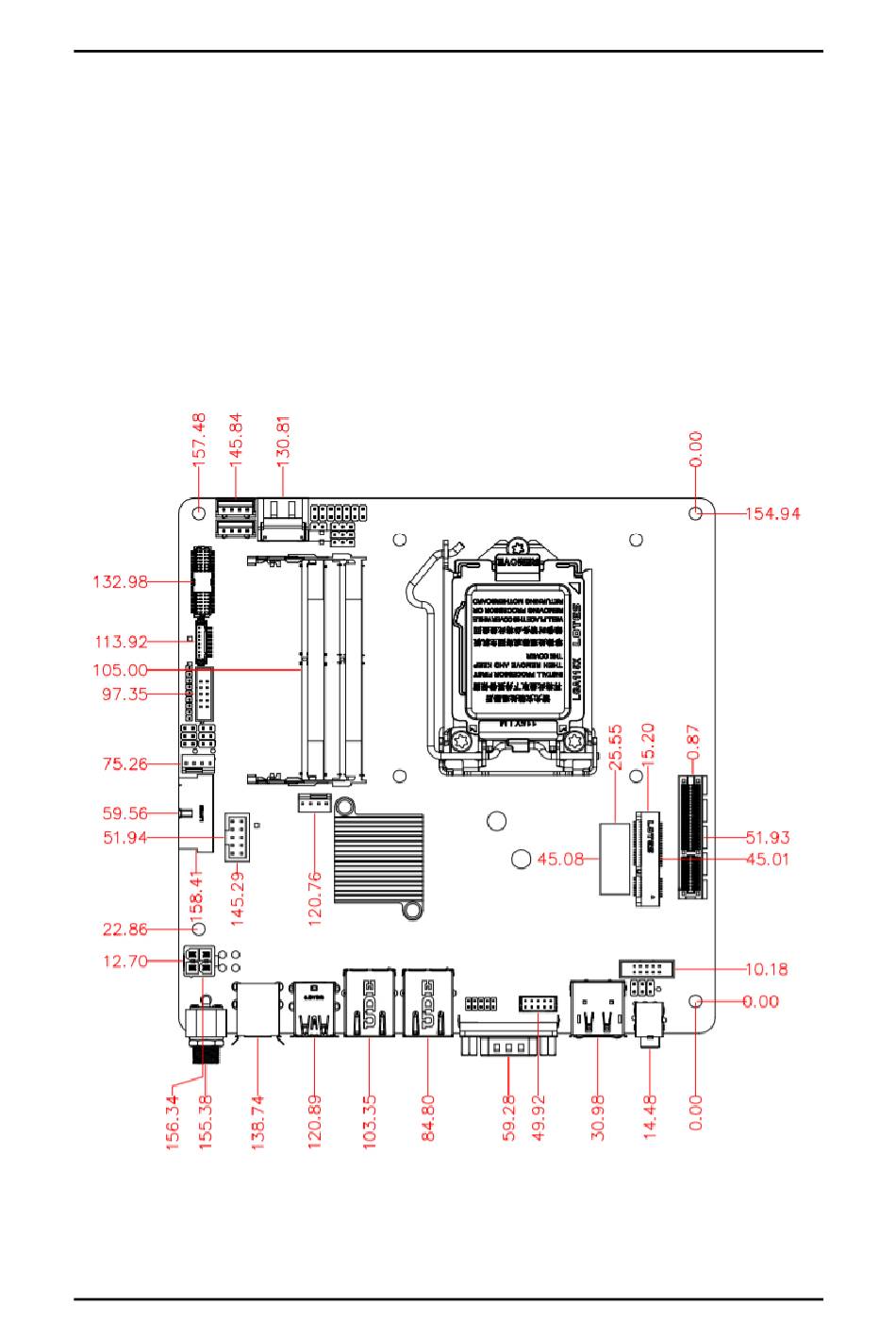

MANO521 Top Side
Jumper & Connector Settings
17
